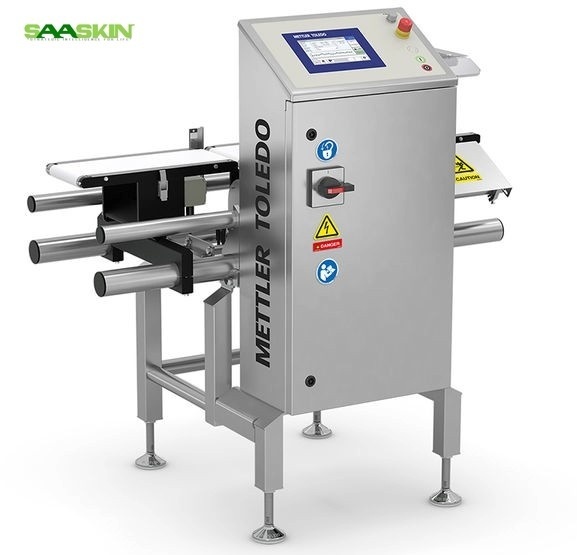

C33 PlusLine Checkweigher

C33 PlusLine Checkweigher

Get a Price/Quote

Product Details:

  • Capacity 30 g to 7.5 kg
  • Frequency 50/60 Hz
  • Usage Laboratory
  • Power Source Electrical
  • Voltage 110/230 V AC
  • Accuracy Up to 0.2 g
  • Product Type Instrument
  • Click to View more
Request to Call Back Send Inquiry
X

C33 PlusLine Checkweigher Price And Quantity

  • 1 Unit

C33 PlusLine Checkweigher Product Specifications

  • C33 PlusLine
  • 110/230 V AC
  • Up to 0.2 g
  • Instrument
  • Electrical
  • 0 to 7,500 g
  • NEW
  • Automatic
  • High-speed, modular belt design, flexible integration
  • 0C to +40C
  • Approx. 140 kg
  • Load cell, digital controller, conveyor motor
  • Stainless steel (AISI 304), IP65 protection
  • In-line Checkweigher
  • 30 g to 7.5 kg
  • Colour touchscreen, TFT 12 display
  • Laboratory
  • 50/60 Hz
  • Approx. 1,400 x 700 x 1,400 mm
  • Intuitive graphical interface
  • Stores up to 200 product presets
  • Multiple language options
  • Ethernet, USB, RS232, OPC UA
  • Up to 300 mm
  • Up to 300 packages/min
  • Up to 400 mm length
  • Tool-less belt removal for sanitation
  • MID, OIML, and FDA
  • IP65, optional IP69K for harsher washdown
  • Pusher, air blast, drop flap, or conveyor stop

Product Description

Flexible mid-level checkweigher for standard weighing applications featuring advanced FlashCell EMFR technology. Achieve high accuracy at throughputs up to 350 ppm for food and non-food applications in dry, wet and harsh environments.


Brand Mettler Toledo
Capacity 180 m/min
Model C33
CAT No. 2400330000



Exceptional Versatility and Speed

The C33 PlusLine is engineered for versatility, handling a wide range of package sizes at speeds up to 300 per minute. The high-speed modular conveyor and stainless steel construction provide durability and ensure reliable operation even in intensive production environments. Quickly adjust settings for different products with the intuitive touchscreen and stored presets.


Hygienic and Easy Maintenance

Sanitation is streamlined with the tool-less belt removal system, designed for rapid cleaning and reduced downtime. The equipment's IP65 rating, and optional IP69K protection, make it suitable for environments requiring thorough washdowns, maintaining compliance with industry hygiene standards.


Simple Integration and Advanced Control

Integrating the C33 PlusLine into new or existing production lines is straightforward with data connectivity options including Ethernet, USB, RS232, and OPC UA. Store up to 200 product recipes and control operations via the clear TFT 12-inch graphical interface, enabling quick changeovers and efficient monitoring.

FAQ's of C33 PlusLine Checkweigher:


Q: How does the C33 PlusLine Checkweigher ensure weighing accuracy?

A: The C33 PlusLine is equipped with a precision load cell and digital controller, achieving an accuracy of up to 0.2 g. Its automatic weighing process, combined with high-speed processing and modular belt design, ensures consistent results across packages ranging from 30 g to 7.5 kg.

Q: What types of reject mechanisms are available with the C33 PlusLine?

A: The checkweigher offers multiple reject options, including pusher, air blast, drop flap, or conveyor stop. These mechanisms help remove non-conforming packages efficiently, ensuring compliance with quality standards.

Q: When is tool-less belt removal beneficial in this equipment?

A: Tool-less belt removal is particularly useful during scheduled cleaning or maintenance, enabling operators to quickly detach the belt for thorough sanitation. This feature reduces labor and downtime, supporting strict hygiene requirements.

Q: Where can the C33 PlusLine Checkweigher be integrated?

A: Due to its flexible, modular design and comprehensive connectivity interfaces (Ethernet, USB, RS232, OPC UA), the C33 PlusLine can be integrated into laboratory, manufacturing, and packaging environments, making it suitable for dealers, exporters, and suppliers across various industries in India.

Q: What is the process for switching between different product recipes?

A: Operators can select from up to 200 stored product presets using the intuitive 12-inch graphical touchscreen. This allows for swift changeovers, minimizing setup time when switching between products or batches in the production process.

Q: How does the checkweigher support regulatory compliance and hygiene?

A: The C33 PlusLine meets MID, OIML, and FDA regulatory standards. Its stainless steel AISI 304 construction, IP65 environmental protection (with optional IP69K), and tool-less cleaning features make it suitable for regulated environments requiring high levels of hygiene.
