Boditech AFIAS Myoglobin

Get a Price/Quote

Product Details:

Features Touchscreen, Fast Processing, Compact Design
Accuracy High
Display Type LCD Touchscreen
Function Myoglobin Detection
Storage Instructions Store at 2-8C
Usage Type Professional Diagnostic
Measurement Range 5 - 2000 ng/mL
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Boditech AFIAS Myoglobin Price And Quantity

Supported Sample Types Serum, Plasma, Whole Blood
Calibration Automatic
Maintenance Minimal
Test Time 12 minutes
Sample Volume 30 L
Model AFIAS - Myoglobin
Data Transfer USB, RS232
Intended Use Emergency and Routine Laboratory Testing
Result Output Quantitative

Boditech AFIAS Myoglobin Product Specifications

Wall Mounted No
Operating Type Automatic
Power Source Electric
Material Plastic, Electronics
Features Touchscreen, Fast Processing, Compact Design
Condition New
Real-Time Operation Yes
Weight 3.0 kg
Voltage 100-240V AC
Frequency 50/60 Hz
Instruments Type Point-of-Care Testing
Color White and Blue
Measurement Range 5 - 2000 ng/mL
Usage Type Professional Diagnostic
Function Myoglobin Detection
Technology Fluorescent Immunoassay
Storage Instructions Store at 2-8C
Shelf Life According to kit label
Noise Level Low
Display Type LCD Touchscreen
Portable Yes
Dimension (L*W*H) 280 x 230 x 152 mm
Equipment Type Immunoassay Analyzer
Use Quantitative Measurement of Myoglobin in Human Serum, Plasma, or Whole Blood
Accuracy High
Power Consumption 12W

Supported Sample Types Serum, Plasma, Whole Blood
Calibration Automatic
Maintenance Minimal
Test Time 12 minutes
Sample Volume 30 L
Model AFIAS - Myoglobin
Data Transfer USB, RS232
Intended Use Emergency and Routine Laboratory Testing
Result Output Quantitative

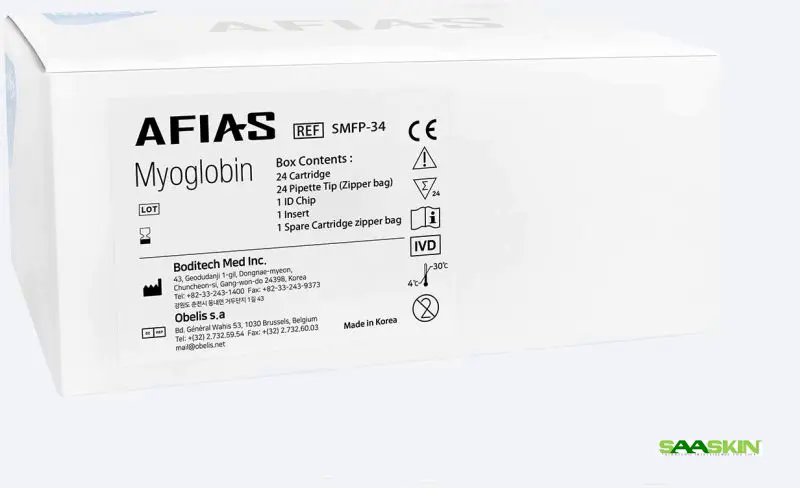

Product Description

Brand Boditech

Sample Type Serum/ Plasma/ WB

Pack Size 24T

CAT No SMFP-34

Biomarker Cardiac

Measurement of myoglobin provides an early index of damage to the myocardium, such as occurs in myocardial infarction (MI) or reinfarction. Increased levels, which indicate cardiac muscle injury or death, occur in about 3 hours. Two negative results from consecutive Myoglobin tests eliminate the MI from consideration.

Fast, Reliable Myoglobin Detection

The AFIAS Myoglobin analyzer empowers healthcare professionals with precise and swift quantification of myoglobin-an important biomarker in diagnosing acute myocardial infarction and other muscular damage. Automated operation and minimal maintenance requirements ensure reliability and efficiency, making it a trusted solution for both emergency and routine diagnostic applications.

Designed for Convenience and Portability

Engineered for ease of use, the AFIAS Myoglobin features a touchscreen LCD and a lightweight, compact build (weighing only 3.0 kg). Its portability, combined with user-friendly features and automatic calibration, streamlines testing procedures even in busy laboratory or point-of-care environments. Data can be swiftly exported via USB or RS232 for seamless reporting and record-keeping.

Comprehensive and Safe Operation

The instrument operates efficiently at a low power consumption of 12W and supports a wide voltage range (100-240V AC). It is constructed from durable plastic and integrates advanced fluorescent immunoassay technology. Safe storage at 2-8C and clear measurement ranges of 5 - 2000 ng/mL enhance operational safety and dependability.

FAQ's of Boditech AFIAS Myoglobin:

Q: How does the Boditech AFIAS Myoglobin analyzer support emergency laboratory testing?

A: The AFIAS Myoglobin analyzer provides rapid results in just 12 minutes, using only 30 L of sample. Its automatic operation and minimal maintenance make it ideal for timely and frequent testing during emergencies, helping clinicians make swift, reliable decisions.

Q: What sample types are compatible with this immunoassay analyzer?

A: This device supports serum, plasma, and whole blood samples, offering flexibility in clinical and laboratory settings for the quantitative detection of myoglobin.

Q: When should the calibration be performed on the AFIAS Myoglobin analyzer?

A: Calibration is handled automatically by the instrument, reducing manual intervention and ensuring consistent accuracy with minimal effort from the user.

Q: Where is the AFIAS Myoglobin system best utilized?

A: Due to its portability, compact design, and reliable performance, the analyzer is suitable for emergency departments, hospital laboratories, and point-of-care testing environments across India.

Q: What are the main benefits of using the Boditech AFIAS Myoglobin analyzer?

A: It offers fast, quantitative results with high accuracy, low maintenance, and ease of use through its touchscreen display and automatic functions. Its compact, portable design allows for flexible placement and straightforward integration into diverse diagnostic workflows.

Q: How is data transferred and reported from the analyzer?

A: Data can be transferred via USB or RS232 ports, enabling seamless integration with laboratory information systems and simplifying record management.

Q: What are the storage instructions and shelf life for the test kits used with this device?

A: Test kits should be stored at 2-8C, and the shelf life can be found on the kit label to ensure optimal performance and reliability during usage.
