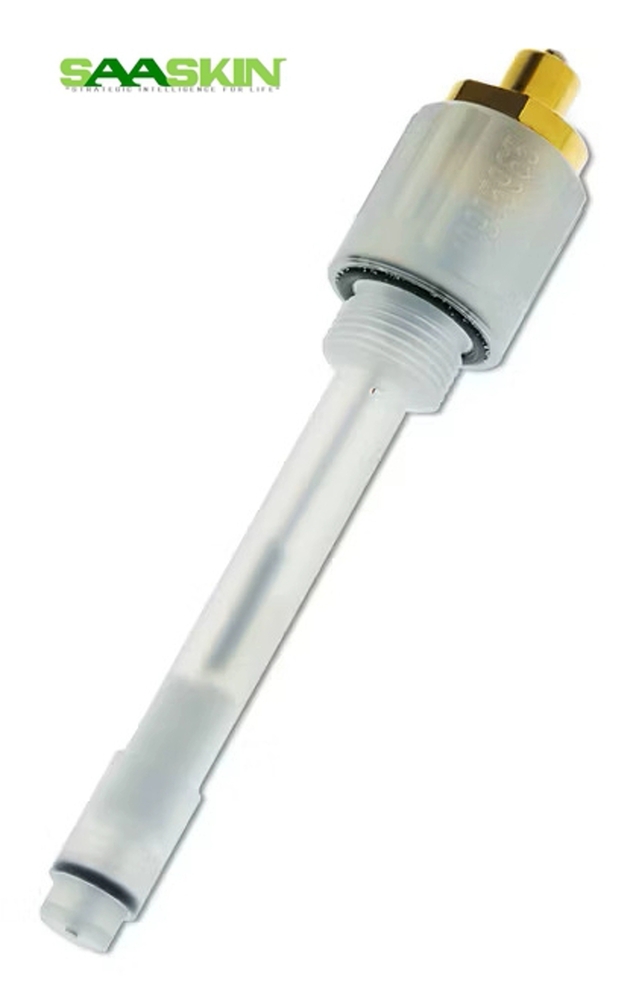

Metrohm LL-Ag/AgCl reference electrode for CVS

Metrohm LL-Ag/AgCl reference electrode for CVS

Get a Price/Quote

Product Details:

Capacity N/A (not applicable to electrodes)
Dimension (L*W*H) Length approx. 120 mm, Diameter approx. 9 mm
Classification Electrochemical Reference Electrode
Operate Method Direct immersion into sample electrolyte; connection via plug cap
Color Transparent/White
Weight Approx. 35 g
Application Electrochemical analysis, particularly for CVS in plating baths and analytical labs
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metrohm LL-Ag/AgCl reference electrode for CVS Price And Quantity

Service Life Extended, depending on usage and maintenance
Electrolyte Type LL (Long Life) electrolyte with minimized Ag+ leakage
Storage Recommendation Keep wet, store in electrolyte solution when not in use
Compatibility Designed for use with Metrohm CVS systems and compatible third-party instruments
Temperature Range 0°C to 40°C
Diaphragm Type Porous ceramic
Refilling Required No; maintenance-free due to gel electrolyte
Connector Type Plug head compatible with Metrohm potentiostats/galvanostats

Metrohm LL-Ag/AgCl reference electrode for CVS Product Specifications

Capacity N/A (not applicable to electrodes)
Classification Electrochemical Reference Electrode
Dimension (L*W*H) Length approx. 120 mm, Diameter approx. 9 mm
Operate Method Direct immersion into sample electrolyte; connection via plug cap
Color Transparent/White
Power N/A (non-powered, passive device)
Usage Reference electrode for CVS (Cyclic Voltammetric Stripping)
Application Electrochemical analysis, particularly for CVS in plating baths and analytical labs
Weight Approx. 35 g
Product Type LL-Ag/AgCl reference electrode
Voltage Reference potential approx. +199 mV vs. SHE at 25C
Material Glass body, Ag/AgCl element, ceramic diaphragm, LL (Long Life) electrolyte

Service Life Extended, depending on usage and maintenance
Electrolyte Type LL (Long Life) electrolyte with minimized Ag+ leakage
Storage Recommendation Keep wet, store in electrolyte solution when not in use
Compatibility Designed for use with Metrohm CVS systems and compatible third-party instruments
Temperature Range 0°C to 40°C
Diaphragm Type Porous ceramic
Refilling Required No; maintenance-free due to gel electrolyte
Connector Type Plug head compatible with Metrohm potentiostats/galvanostats

Product Description

Brand Metrohm

Material PCTFE

Capacity 3 mol/L KCl

CAT No. 60728130

Application Titration Accessories

Inner reference system with electrolyte c(KCl) = 3 mol/L. For use with electrolyte vessel made of plastic 6.1245.010.

Advanced Reference Electrode for Reliable CVS Analysis

The Metrohm LL-Ag/AgCl reference electrode stands out for its extended service life and reduced silver ion leakage, making it indispensable for professionals conducting electrochemical analysis through CVS. Maintenance concerns are minimized by the use of gel electrolyte, which also eliminates the need for refilling. Whether in a research lab or a production environment, this electrode's robust construction and ease of use ensure steady and dependable reference potentials.

Effortless Integration and Operation

Integration into your analysis workflow is seamless thanks to the plug head compatible with Metrohm instruments and leading third-party systems. Simply immerse the electrode in your sample solution and connect it to your potentiostat or galvanostat. Its transparent glass body and white components allow for easy inspection and handling, supporting efficient laboratory operations and consistent results.

FAQ's of Metrohm LL-Ag/AgCl reference electrode for CVS:

Q: How do I set up the Metrohm LL-Ag/AgCl reference electrode for use in CVS measurements?

A: To use the electrode, securely attach its plug head to your Metrohm potentiostat or compatible third-party system. Immerse the tip with the porous ceramic diaphragm directly into your sample electrolyte, ensuring continuous wetness during operation.

Q: What benefits does the Long Life (LL) electrolyte provide in this reference electrode?

A: The LL gel electrolyte minimizes silver ion (Ag+) leakage, resulting in less contamination of your sample and extended electrode lifespan. Additionally, it offers a maintenance-free experience-no refilling or frequent maintenance is required.

Q: When should the reference electrode be stored in electrolyte solution?

A: The electrode should always be stored wet, ideally in an electrolyte solution, whenever it is not in use. This practice maintains the integrity of the gel electrolyte and extends the device's service life.

Q: Where can this reference electrode be effectively used?

A: The electrode is optimal for electrochemical analysis in plating baths, analytical laboratories, and any setup that employs CVS as an analytical technique. It is designed for compatibility with Metrohm CVS systems and suitable third-party instruments.

Q: What is the maintenance process for the Metrohm LL-Ag/AgCl reference electrode?

A: No refilling is necessary due to the maintenance-free gel electrolyte. Routine inspection for cleanliness and adequate wetness is recommended. If drying occurs, rehydrate by soaking in compatible electrolyte solution before use.

Q: How does the porous ceramic diaphragm benefit my electrochemical measurements?

A: The porous ceramic diaphragm provides a stable and consistent liquid junction, ensuring accurate reference potentials and reliable performance, especially during demanding electrochemical experiments like CVS.

Q: What are the main advantages of using this electrode in analytical applications?

A: Key advantages include minimized sample contamination due to low Ag+ leakage, an extended service life, compatibility with a range of instruments, and a maintenance-free design-ideal for rigorous, routine use in critical electrochemical analyses.
