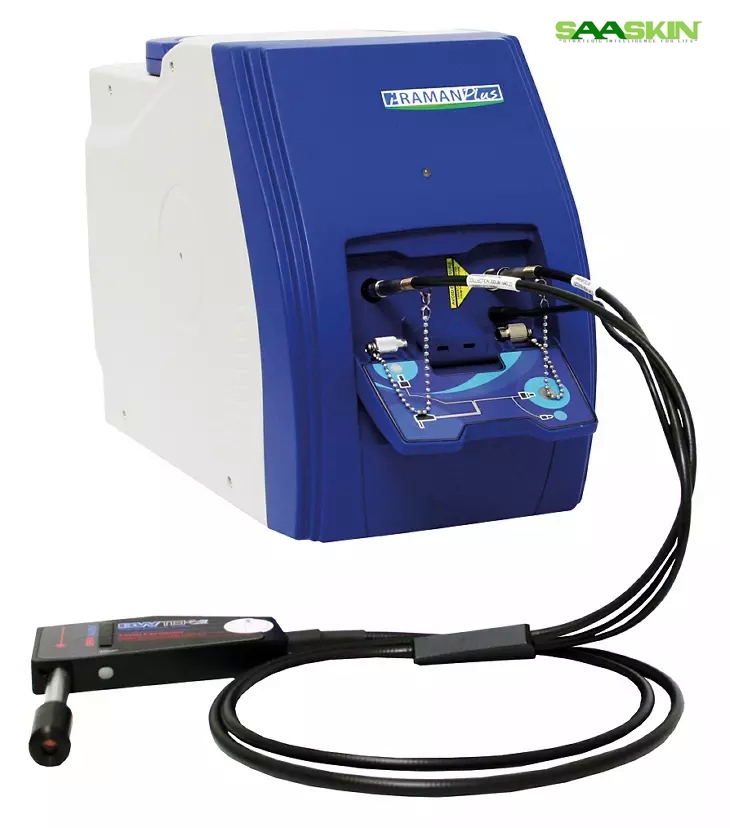

Metrohm i-Raman Plus 785H Portable Raman Spectrometer

Metrohm i-Raman Plus 785H Portable Raman Spectrometer

Get a Price/Quote

Product Details:

Core Components 785 nm laser, CCD detector, spectral probe
Temperature Range Ambient (no sample heating/cooling)
Accuracy Spectral accuracy 1 cm
Model No i-Raman Plus 785H
Voltage 110240 V
Measurement Range 175 cm 3200 cm
Frequency 50/60 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metrohm i-Raman Plus 785H Portable Raman Spectrometer Price And Quantity

Metrohm i-Raman Plus 785H Portable Raman Spectrometer Product Specifications

Usage Material identification and chemical analysis
Measurement Range 175 cm 3200 cm
Voltage 110240 V
Temperature Range Ambient (no sample heating/cooling)
Dimension (L*W*H) 260 mm 220 mm 90 mm
Equipment Materials Rugged metal and ABS housing
Core Components 785 nm laser, CCD detector, spectral probe
Model No i-Raman Plus 785H
Display Type High-resolution touchscreen display
Accuracy Spectral accuracy 1 cm
Type Portable Raman Spectrometer
Feature High sensitivity, compact design, USB connectivity, fiber optic probe
Automation Grade Manual operation
Power Source AC adapter or rechargeable battery
Frequency 50/60 Hz
Weight Approximately 3.2 kg

Spectral Resolution <4.5 cm
Excitation Wavelength 785 nm
Power Consumption <30 W
Data Storage PC based, supports external storage
Wavelength Accuracy 0.5 nm
Portability Handheld, field and lab use
Operating System Windows compatible
Integration Time 1 ms to 30 minutes
Detector Type TE-cooled CCD array
Laser Power up to 420 mW adjustable
Connectivity USB 2.0
Sampling Accessories Optional fiber optic probe, vial holder, tablet holder
Software BWSpec software included

Product Description

Brand Metrohm

Model 785H

Capacity 65 2800 cm-1

CAT No BWT-840000358

Application Spectroscopy

The i-Raman Plus 785H is part of our award-winning series of i-Raman portable Raman spectrometers powered by our innovative intelligent spectrometer technology. Using a high-quantum-efficiency CCD array detector with TE cooling and high dynamic range, this portable Raman spectrometer delivers excellent performance with low noise, even at integration times of up to 30 minutes, making it possible to measure weak Raman signals.

High Sensitivity and Robust Portability

Engineered for scientific precision, the i-Raman Plus 785H combines a sensitive TE-cooled CCD detector with a powerful 785 nm laser in a rugged, lightweight housing. The handheld design, together with flexible power options (AC/adaptor or rechargeable battery), enables seamless use both in the field and laboratory settings, adapting effortlessly to challenging workspaces.

Versatile Accessories and Connectivity

Support for optional fiber optic probes, vial holders, and tablet holders enhances adaptability for different sample types. Data is stored on an external PC or external storage devices using USB 2.0 connectivity. The system is integrated with BWSpec software for intuitive operation and compatibility with Windows systems.

Reliable Performance for Material Analysis

Achieve exceptional spectral resolution and wavelength accuracy for applications ranging from material identification to in-depth chemical analysis. With a wide measurement range and adjustable laser power, the instrument is ideal for researchers, manufacturers, and quality control professionals who require precise, repeatable results.

FAQ's of Metrohm i-Raman Plus 785H Portable Raman Spectrometer:

Q: How is the i-Raman Plus 785H Portable Raman Spectrometer operated?

A: The i-Raman Plus 785H is manually operated using its high-resolution touchscreen display and the included BWSpec software. It connects to an external PC via USB 2.0 for data storage and detailed analysis.

Q: What types of samples can be analyzed with this spectrometer?

A: The spectrometer supports various sampling modes using optional accessories like fiber optic probes, vial holders, and tablet holders. This enables analysis of solids, liquids, and powders for applications in research, manufacturing, and quality assurance.

Q: When is it beneficial to use a handheld spectrometer like the i-Raman Plus 785H?

A: A handheld spectrometer is particularly beneficial in fieldwork or environments where portability is crucial. Its robust construction and battery-powered operation make it ideal for on-site material identification and rapid screening without needing a fixed laboratory setup.

Q: Where can the i-Raman Plus 785H be effectively utilized?

A: This instrument is suitable for use in laboratories, manufacturing plants, warehouses, and remote field locations due to its compact size, rugged housing, and flexible power supply options.

Q: What is the process for collecting data with this Raman spectrometer?

A: To collect data, users place the sample in the designated accessory (such as a vial holder or probe), adjust the laser parameters as required, and initiate the measurement through the touchscreen or connected PC. The system allows integration times from 1 ms to 30 minutes for optimal results.

Q: How does the i-Raman Plus 785H ensure measurement accuracy?

A: The device utilizes a high-precision 785 nm laser and a TE-cooled CCD detector to reduce noise and enhance signal clarity, achieving wavelength accuracy within 0.5 nm and spectral accuracy of 1 cm1.

Q: What are the main benefits of using the i-Raman Plus 785H?

A: The primary benefits include high sensitivity, robust and portable design, flexibility for various sample types, straightforward operation with advanced software, and reliable data for precise chemical and material analysis.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Life Sciences' category

PerkinElmer QSight 210 LC/MS/MS System Automation Grade : Fully automated sample analysis Feature : Exceptional sensitivity, Allnew StayClean Source technology, rapid screening, minimal maintenance Weight : Approximately 120 kg Usage : Quantitative and confirmatory analysis in pharmaceutical, food safety, and environmental applications Type : Triple Quadrupole LC/MS/MS System Model No : QSight 210 Core Components : Ion source, triple quadrupole mass analyzer, vacuum system, ESI and APCI source Temperature Range : Ambient (for system operation) Dimension (L*W*H) : 103 cm 55 cm 55 cm Equipment Materials : Stainless steel, specialized alloys and engineering polymers for robustness and chemical resistance Measurement Range : fg to ng (attogram to nanogram detection limits) Accuracy : High accuracy; attogram/fg range for target compound detection Display Type : 10.4inch color touchscreen interface (Chromera Software) Capacity : Highthroughput, suitable for routine quantitation in pharmaceutical, food, and environmental labs Power Source : AC Mains Frequency : 50/60 Hz Voltage : 220240 V

Send Inquiry

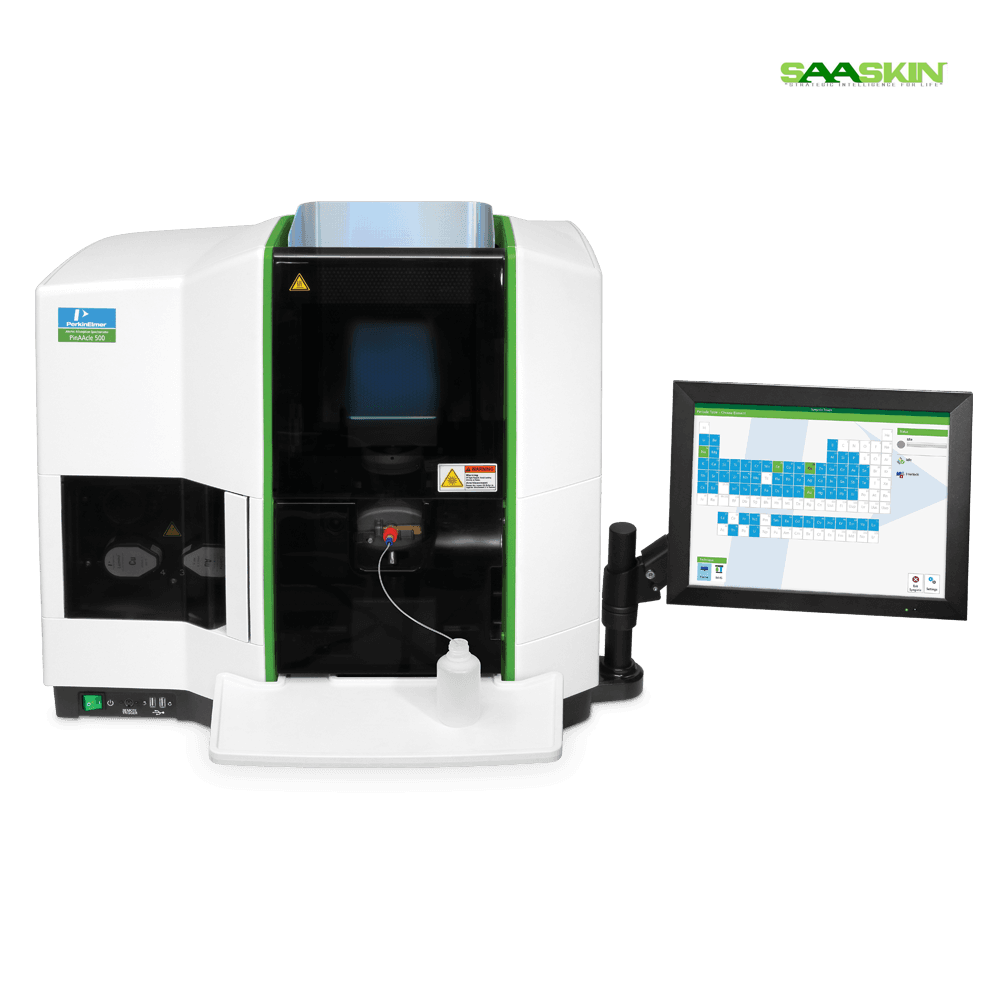

PerkinElmer PinAAcle 900 Series AA Spectrometers Automation Grade : Fully Automated Feature : Flame, graphite furnace, and hybrid capabilities Weight : Approx. 64 kg (PinAAcle 900F); 70 kg (PinAAcle 900T) Usage : Elemental analysis in environmental, food, clinical, mining and industrial applications Type : Atomic Absorption Spectrometer Model No : PinAAcle 900 Series Core Components : Hollow cathode lamps, atomizer, optical system, detector Temperature Range : Up to 2800 C for graphite furnace Dimension (L*W*H) : 93 cm 63 cm 51 cm Equipment Materials : Corrosionresistant materials, powdercoated steel construction Measurement Range : ppb to high ppm depending on analyte and configuration Accuracy : High sensitivity and accuracy as per AA spectroscopy standards Display Type : Color VGA LCD touchscreen interface Capacity : Single or dual atomizer configurations Power Source : AC Power Frequency : 50/60 Hz Voltage : 110240 V AC
