Spectrophotometer Easy UV ScanStart

Get a Price/Quote

Product Details:

Product Type Instrument
Usage Laboratory
Power 50 W
Dimension (L*W*H) 475 x 375 x 185 mm
Voltage 220 V AC, 50 Hz
Color White
Operate Method Touch Panel, Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Spectrophotometer Easy UV ScanStart Price And Quantity

Minimum Order Quantity 1 Unit

Spectrophotometer Easy UV ScanStart Product Specifications

Product Type Instrument
Usage Laboratory
Application Research Laboratories, Quality Control, Chemical Analysis
Dimension (L*W*H) 475 x 375 x 185 mm
Classification UV-Vis
Power 50 W
Weight 12.5 kg
Capacity Single/Multiple Samples
Voltage 220 V AC, 50 Hz
Operate Method Touch Panel, Automatic
Material NEW
Color White

Optical System Single Beam
Accuracy 0.5 nm
Memory Internal, up to 200 test methods
Repeatability 0.2 nm
Detector Silicon Photodiode
Wavelength Range 190 - 1100 nm
Scanning Speed Fast/Medium/Slow selectable
Photometric Range -0.3 - 3.0 A
Display Large LCD Display
Operating Temperature 10oC - 35oC
Data Output USB, Printer Port
Light Source Deuterium and Tungsten Lamp
Stray Light 0.05%T @ 220 nm & 340 nm
Baseline Flatness 0.003 A
Bandwidth 2 nm

Product Description

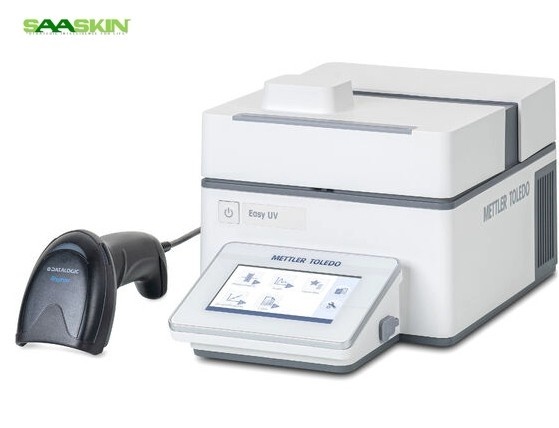

Easy UV provides an economic option for the spectrophotometric analysis using UV and visible light. Together with the handheld barcode scanner, the ScanStart function offers convenient method handling, e.g., for using water test kits.

Brand	Mettler Toledo
Capacity	190 nm - 1,000 nm
Model	ScanStart
CAT No.	Refer Below

Precise and Versatile Performance

The Easy UV Scan Spectrophotometer delivers outstanding analytical accuracy across UV-Vis measurements, with a photometric range of -0.3 - 3.0 A and an impressive accuracy of 0.5 nm. Designed for professional laboratory environments, its robust single beam system and advanced photodiode detector ensure consistent and reproducible results. Baseline flatness and minimal stray light further enhance data integrity.

User-Friendly and Efficient Operation

This model boasts a large, intuitive LCD display with touch panel controls, simplifying complex analyses with automatic operation. Multiple scanning speeds can be selected and up to 200 test methods stored internally, allowing users to tailor workflows to specific sample requirements. With easy data output via USB and printer ports, results are effortlessly integrated into laboratory documentation.

FAQ's of Spectrophotometer Easy UV ScanStart:

Q: How do I use the Easy UV Scan spectrophotometer for multiple sample analysis?

A: The Easy UV Scan is designed for both single and multiple sample measurements. To run multiple samples, simply prepare and place your samples into the sample holder, select the desired method from the internal memory or create a new one, and operate the device via the intuitive touch panel. The automatic mode streamlines the measurement process, making it straightforward for laboratory users.

Q: What are the benefits of the 190 - 1100 nm wavelength range in this spectrophotometer?

A: The wide wavelength range of 190-1100 nm enables analysis of both UV and visible light-absorbing compounds, making the instrument suitable for a broad spectrum of applications from chemical analysis to quality control in research laboratories.

Q: Where can data from the spectrophotometer be exported?

A: Results from the Easy UV Scan can be directly exported via its USB and printer ports. This allows data to be easily transferred to computers for further analysis or securely documented by printing, facilitating seamless integration into laboratory records.

Q: What ensures the accuracy and repeatability of measurements?

A: The Easy UV Scan features a silicon photodiode detector, high-quality optical components, and robust light sources (deuterium and tungsten lamps), ensuring high measurement accuracy of 0.5 nm and repeatability of 0.2 nm. Baseline flatness (0.003 A) and low stray light (0.05%T @ 220 & 340 nm) further support data precision.

Q: When is this spectrophotometer best suited for use in the laboratory?

A: This model is ideal for routine and advanced research, quality control, and chemical analysis when accurate UV-Vis spectrophotometric data is required. Its memory capacity and scanning speed selection make it especially efficient during high-throughput or repetitive testing conditions.

Q: What operating conditions are recommended for optimal performance?

A: For the most reliable results, operate the Easy UV Scan in an environment with a temperature between 10C and 35C, using a 220 V AC, 50 Hz power supply. These conditions ensure the stability and efficiency of the instrument.
