Thermo Scientific HAAKE Viscotester 3 Rotational Viscometer

Thermo Scientific HAAKE Viscotester 3 Rotational Viscometer

Get a Price/Quote

Product Details:

Accuracy 1% of full scale
Frequency 50/60 Hz
Capacity 1600,000 mPas
Power Source Mains electricity
Model No HAAKE Viscotester 3
Measurement Range 1600,000 mPas
Temperature Range Up to 150C (with bath)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific HAAKE Viscotester 3 Rotational Viscometer Price And Quantity

Thermo Scientific HAAKE Viscotester 3 Rotational Viscometer Product Specifications

Capacity 1600,000 mPas
Equipment Materials Corrosion-resistant materials, metal alloy
Power Source Mains electricity
Frequency 50/60 Hz
Usage Viscosity measurement of liquids and semi-solids
Accuracy 1% of full scale
Core Components Motor, measuring head, measuring spindles
Temperature Range Up to 150C (with bath)
Model No HAAKE Viscotester 3
Measurement Range 1600,000 mPas
Weight Approx. 2 kg
Automation Grade Manual
Display Type Analog scale
Dimension (L*W*H) 240 x 85 x 80 mm
Voltage 230 V
Feature Portable, easy-to-use, direct reading
Type Rotational Viscometer

Viscosity Units mPa·s (cP)
Speed Range 2.5, 4, 10, 20, 50, 100 rpm
Compliance/Certifications CE certified
Operation Temperature 5°C to 40°C (ambient)
Mounting Bench-top or hand-held
Sample Volume Minimum 10 ml
Number of Measuring Spindles 6
Calibration Supplied with calibration certificate

Product Description

Brand Thermo Fisher Scientific

Model HAAKE 3

Capacity 30 to 400 000 mPas

CAT No 399-0112

Application Rheometers

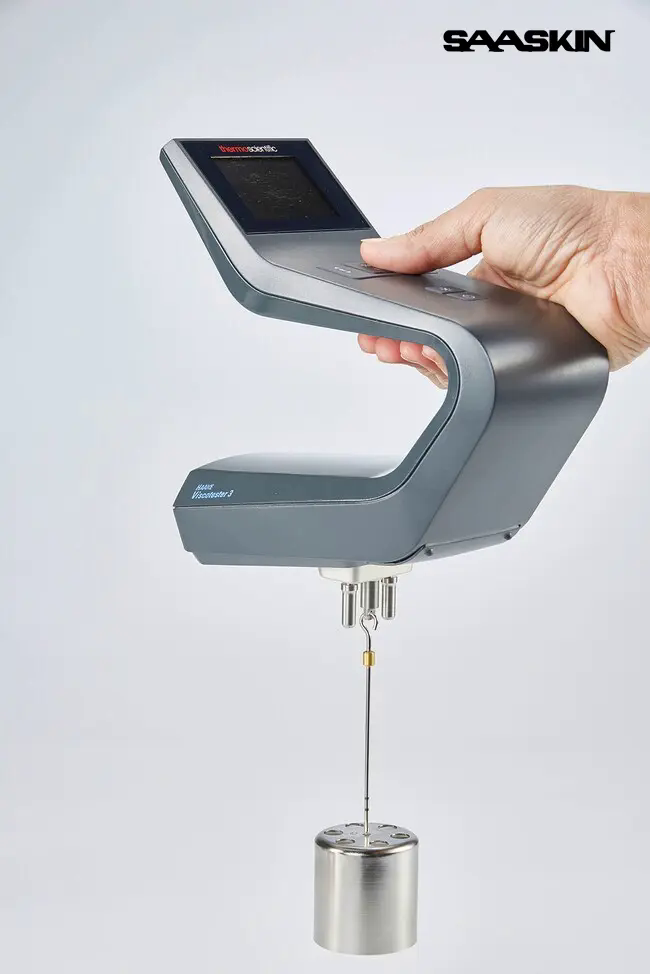

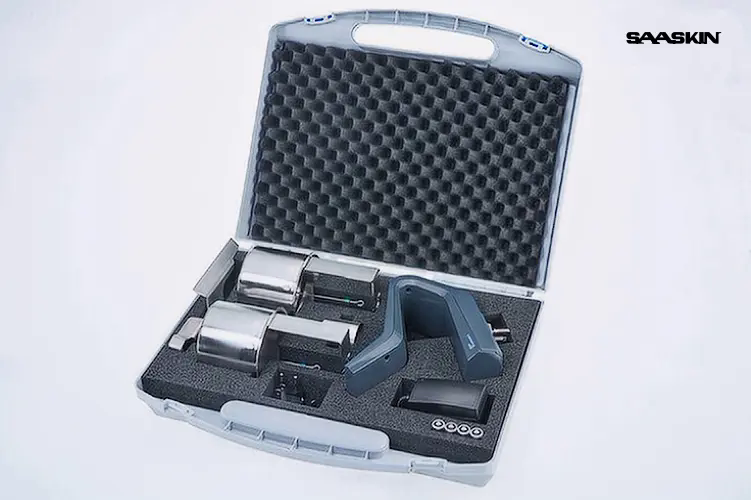

The Thermo Scientific HAAKE Viscotester 3 rotational viscometer ensures quick, reliable tests for QC applications. Use it as a handheld viscometer or on a lab stand. Color coding ensures measuring geometries match the analysis, the display is readable in any lighting, and the viscometer remembers the reference point measurement for you. All that comes in a ready-to-go carrying case.

Robust Design for Versatile Viscosity Testing

With its corrosion-resistant materials and precision-engineered measuring spindles, the HAAKE Viscotester 3 ensures dependable performance for diverse viscosity testing needs. Its ergonomic, portable form factor allows for bench-top or hand-held use, making it a practical choice for labs and field operations in industrial, research, and quality assurance environments.

User-Friendly Analog Operation and Direct Reading

Equipped with an analog display and manual controls, this viscometer provides immediate, easy-to-read viscosity measurements in mPas (cP). The instrument is supplied with six measuring spindles, accommodating a wide viscosity range (1-600,000 mPas) and requiring as little as 10 ml sample volume, streamlining both setup and usage.

Certified Performance and Reliable Calibration

Each unit is delivered with a calibration certificate, ensuring traceable, consistent results. The HAAKE Viscotester 3 is CE certified and built to deliver accurate viscosity assessments (1% accuracy), making it suitable for regulated applications and demanding laboratory protocols.

FAQ's of Thermo Scientific HAAKE Viscotester 3 Rotational Viscometer:

Q: How do I select the appropriate measuring spindle for my sample with the HAAKE Viscotester 3?

A: Choose the spindle based on the expected viscosity range of your sample. The instrument comes with six spindles, allowing you to match the spindle to your sample's thickness and achieve reliable, accurate measurements across a wide range of viscosities.

Q: What is the minimum sample volume required for a measurement?

A: The HAAKE Viscotester 3 requires a minimum sample volume of 10 ml to ensure accurate and repeatable viscosity readings with its supplied spindles.

Q: When should I perform calibration on this viscometer?

A: Every device includes a calibration certificate, but recalibration should be done routinely as recommended by your laboratory's quality standards or if the instrument has been subjected to heavy usage, mechanical shock, or significant temperature changes.

Q: Where can this viscometer be used, and how portable is it?

A: Thanks to its compact dimensions (240 x 85 x 80 mm) and light weight (approximately 2 kg), the device can be easily transported and used as either a bench-top or hand-held instrument, making it suitable for laboratory or field settings.

Q: What are the ambient and sample temperature ranges supported by the instrument?

A: The device operates in ambient temperatures between 5C and 40C. However, with a compatible temperature bath, it can be used to measure sample viscosities up to 150C.

Q: What is the benefit of the analog scale display on this viscometer?

A: The analog scale provides direct, immediate readings without the complexity of digital menus, facilitating quick interpretation and reducing user error during routine viscosity measurements.

Q: How does using this viscometer support compliance and quality control processes?

A: Being CE certified and delivered with a calibration certificate, the HAAKE Viscotester 3 supports regulatory compliance and ensures traceable, standardized viscosity measurements essential for quality assurance protocols.
