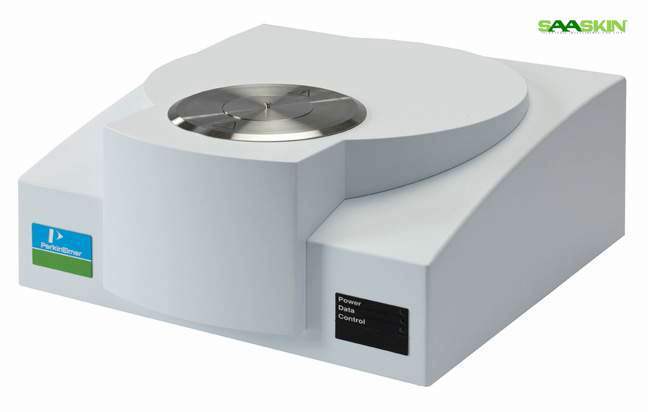

PerkinElmer Simultaneous Thermal Analyzer (STA) 6000

PerkinElmer Simultaneous Thermal Analyzer (STA) 6000

Get a Price/Quote

Product Details:

Measurement Range 0.1 mg to 1.5 g (TGA); DSC range: 700 mW
Feature Simultaneous TGA and DSC measurement, fast heating rates, compact footprint, flexible operation, high sensitivity
Voltage 220-240 V
Temperature Range Ambient to 1000C
Frequency 50-60 Hz
Power Source AC electric, 220-240 V
Automation Grade Semi-automatic with programmable methods
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer Simultaneous Thermal Analyzer (STA) 6000 Price And Quantity

PerkinElmer Simultaneous Thermal Analyzer (STA) 6000 Product Specifications

Frequency 50-60 Hz
Temperature Range Ambient to 1000C
Core Components Furnace, balance, furnace controller, gas flow systems, Pyris software
Automation Grade Semi-automatic with programmable methods
Dimension (L*W*H) Approximately 44 cm 49 cm 34 cm
Power Source AC electric, 220-240 V
Accuracy Temperature accuracy 1C; weighing accuracy 0.1% of reading
Usage Simultaneous Thermogravimetric Analysis (TGA) and Differential Scanning Calorimetry (DSC)/Differential Thermal Analysis (DTA) of materials
Capacity Up to 1.5 g (sample mass)
Model No STA 6000
Display Type Digital (software-based control/display via Pyris software)
Feature Simultaneous TGA and DSC measurement, fast heating rates, compact footprint, flexible operation, high sensitivity
Measurement Range 0.1 mg to 1.5 g (TGA); DSC range: 700 mW
Weight Approx. 35 kg
Voltage 220-240 V
Type Simultaneous Thermal Analyzer (STA), TG-DTA/DSC
Equipment Materials High-performance steel, corrosion-resistant alloys, and ceramics (for furnace and sample holder)

Standard Interface USB and Ethernet for PC connection
Cooling Method Forced air cooling
Heating Rate From 0.1C/min to 100C/min
Purge Gas Flow Rate 10200 mL/min
Maximum Sample Load 1.5 g (recommended)
Calibration Automatic/Manual temperature and weight calibration compatible
Compliance CE marked, RoHS compliant
Software Features Real-time data acquisition, kinetic analysis, custom method creation
Data Output Format CSV, Excel, compatible with Pyris Manager software
Atmosphere Control Static or dynamic, inert/reducing/oxidizing gases, automated switching
Sample Pan Material Platinum, alumina, or other standard compatible materials
Balance Resolution 0.1 g

Product Description

Brand PerkinElmer

Model 6000

Capacity 15 C - 1000 C

CAT No N5370025

Application Thermal Analyzer

The STA 6000 simultaneous thermal analyzer offers performance, reliability and productivity you can depend on. Simultaneous analysis of TG with DTA mode (T) and DSC (mW) mode for fast enhanced result interpretation

Advanced Simultaneous Analysis Technology

The STA 6000 enables simultaneous TGA and DSC measurements, maximizing data output from a single run. Its robust construction features high-performance steel and corrosion-resistant alloys, ensuring durability even during high-temperature operations. Combined with platinum or alumina sample pans, the instrument maintains accuracy and repeatability, supporting a wide spectrum of material analysis needs.

Optimized Gas Flow and Controlled Atmosphere

Configurable for static or dynamic operation, the STA 6000 supports inert, oxidizing, or reducing atmospheres with automated gas switching. Its precise purge gas flow control (10-200 mL/min) ensures consistent sample environment, enabling reliable analyses for thermal decomposition, oxidation, and other reactions under varying experimental conditions.

User-Centric Software and Connectivity

The included Pyris software provides real-time data acquisition, kinetic analysis, and custom method programming. With digital display and seamless USB/Ethernet connectivity, results are easily exported in CSV or Excel formats. Integrated compliance (CE, RoHS) and automatic/manual calibration assure reliable, audit-ready performance in research, industrial, and education settings.

FAQ's of PerkinElmer Simultaneous Thermal Analyzer (STA) 6000:

Q: How does the STA 6000 ensure accurate TGA and DSC measurements?

A: The STA 6000 utilizes a high-sensitivity balance with 0.1 g resolution and maintains temperature accuracy within 1C. The instrument's robust atmosphere control and automated calibration further enhance measurement reliability for simultaneous TGA and DSC analysis.

Q: What types of atmospheres can be used with the STA 6000, and how are they controlled?

A: The analyzer supports static or dynamic operation with inert, reducing, or oxidizing gases. An automated gas switching system enables precise and flexible control of the sample environment, ideal for a wide range of thermal analyses.

Q: When should I perform calibration on the STA 6000, and what methods are available?

A: Calibration should be conducted regularly for optimal accuracy or when shifting between different experimental setups. The STA 6000 offers both automatic and manual calibration options for temperature and weight to maintain consistent performance.

Q: Where can I connect and manage the data generated by the STA 6000?

A: Data can be managed via Pyris software, with connectivity options including USB and Ethernet. Output formats such as CSV and Excel files enable integration with laboratory data management systems or additional analysis workflows.

Q: What is the recommended maximum sample capacity, and what materials are suitable for sample pans?

A: The recommended maximum sample load is 1.5 grams for optimal performance. Sample pans made of platinum, alumina, or other compatible high-performance materials are supported, ensuring chemical resistance and reliable results.

Q: How does the STA 6000 benefit laboratory workflows and research productivity?

A: By providing simultaneous TGA and DSC measurements, real-time data acquisition, and automated method programming, the STA 6000 streamlines analyses and enhances throughput. Its compact design and user-friendly software facilitate efficient operation in busy laboratory environments.
