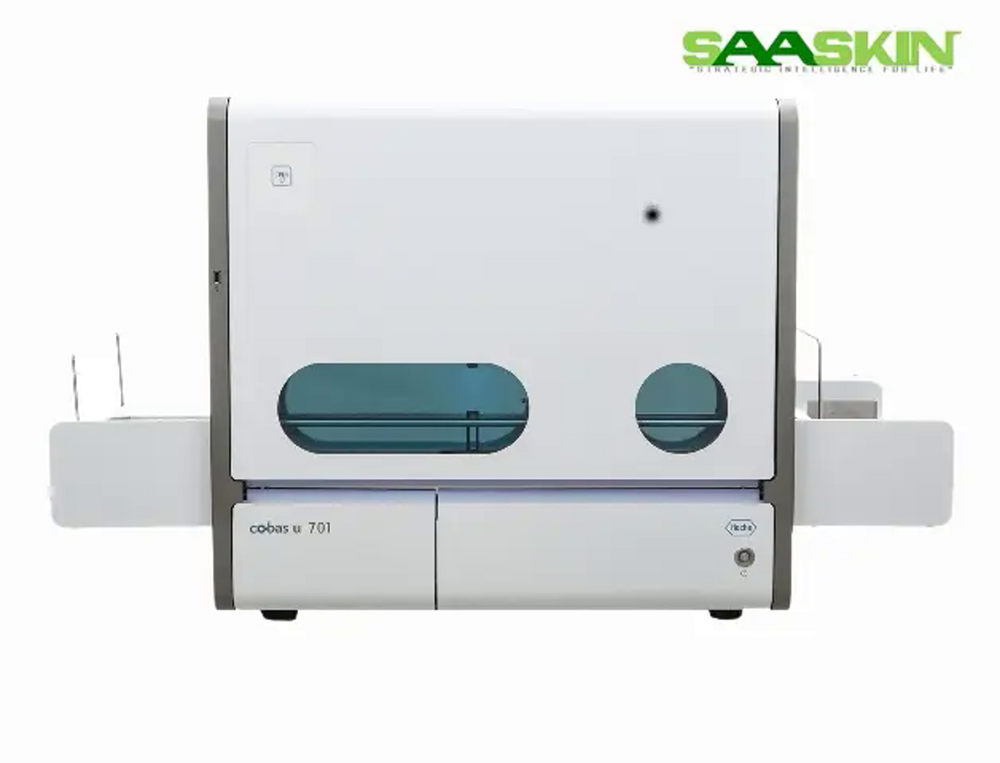

Roche Cobas u 701 Microscopy Analyzer

Get a Price/Quote

Product Details:

Material High-grade industrial plastic, metal components
Condition New
Technology Automated urine microscopy
Portable No
Disposable No
Wall Mounted No
Light Source LED illumination
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Roche Cobas u 701 Microscopy Analyzer Price And Quantity

Roche Cobas u 701 Microscopy Analyzer Product Specifications

Measurement Automated cell and particle count
Size Approx. 845 mm (W) 710 mm (D) 565 mm (H)
Light LED-based illumination
Wall Mounted No
Sensor Digital image sensor
Air Pressure Ambient
Synchronize With Laboratory Information System (LIS)
Technology Automated urine microscopy
Material High-grade industrial plastic, metal components
Magnification Power Up to 400x
Light Source LED illumination
Resolution 2048 x 1536 pixels
Voltage 100240 V AC, 50/60 Hz
Condition New
Weight Approx. 72 kg
Power Source Mains electricity
Noise Level < 60 dB
Disposable No
Software Detail cobas u 701 analytical software
Usage Hospital laboratories, clinical diagnostics
Display Type 8.4-inch color touch screen LCD
Camera Specifications High-resolution digital camera integrated
Data Transmission Mode Ethernet, USB
Real-Time Operation Yes
Operating Type Fully automated
Power Consumption Max. 300 VA
Attributes High-throughput, precise automated microscopy
Color White with blue accents
Portable No
Internal Memory Integrated system storage (SSD/HDD)

Product Description

Brand Roche

Model U 701

Capacity 240 T/ Hr

CAT No 06390501001

Application Urinalysis

The cobas u 701 microscopy analyzer is a fully automated urine microscopy system intended for the in vitro quantitative determination of erythrocytes and leukocytes, the semi-quantitative determination of squamous and non-squamous epithelial cells, bacteria, and hyaline casts and the qualitative determination of pathological casts, crystals, yeasts, mucus, and sperm in urine.

Advanced Automated Urine Microscopy

Utilizing automated microscopy with LED illumination and a high-resolution integrated digital camera, the Cobas u 701 delivers exquisite detail in cell and particle analysis. The system achieves up to 400x magnification, enabling clear and precise examination necessary for accurate diagnostics in clinical laboratories.

Efficiency and High Throughput

Designed for busy hospital laboratories, the Roche Cobas u 701 can process up to 120 urine samples per hour and hold 70 samples simultaneously. The advanced sample handling, automatic cleaning, and calibration routines minimize workflow disruptions, optimizing laboratory efficiency and throughput.

Seamless Integration and User-Friendly Operation

Operators benefit from the intuitive 8.4-inch color touchscreen LCD and cobas analytical software, supporting real-time operations and easy monitoring. Integrated barcode reading and strong LIS connectivity via Ethernet, USB, or RS232C ensure seamless communication with other devices and laboratory systems.

FAQ's of Roche Cobas u 701 Microscopy Analyzer:

Q: How does the Roche Cobas u 701 Microscopy Analyzer automate urine analysis?

A: The Cobas u 701 automates urine microscopy by utilizing a digital image sensor, LED illumination, and sophisticated software to capture and analyze cell and particle counts. Its automated cleaning and calibration routines further enhance accuracy and reliability without manual intervention.

Q: What are the main benefits of using this analyzer in a clinical laboratory?

A: Key benefits include high-throughput processing (up to 120 samples/hour), integrated barcode reader for streamlined workflow, low carryover risk (<0.1%), precise analysis through advanced imaging, automated maintenance routines, and seamless network integration with other lab systems for improved operational efficiency.

Q: When should maintenance or calibration be performed on the analyzer?

A: Routine maintenance and calibration are largely automated by the system, with both scheduled and on-demand options available. The analyzer notifies users via the touchscreen when intervention is required, ensuring optimal performance and minimal downtime.

Q: Where is the Roche Cobas u 701 best suited for use?

A: This analyzer is ideally suited for hospital laboratories, clinical diagnostics centers, and large medical institutions requiring high-throughput, consistent, and accurate urine microscopy. It is not intended for portable, disposable, or wall-mounted use.

Q: What is the process for transmitting and managing data with this analyzer?

A: Data transmission from the Cobas u 701 can be managed via multiple connectivity options, including Ethernet, USB, RS232C, and integration with Laboratory Information Systems (LIS). This flexibility ensures efficient handling and synchronization of test results within laboratory networks.

Q: How does the system ensure data accuracy and sample integrity?

A: The system minimizes sample carryover to less than 0.1%, uses high-resolution imaging, and supports both automated and manual calibration routines. Automated cleaning procedures further prevent sample contamination, ensuring data integrity and diagnostic reliability.
