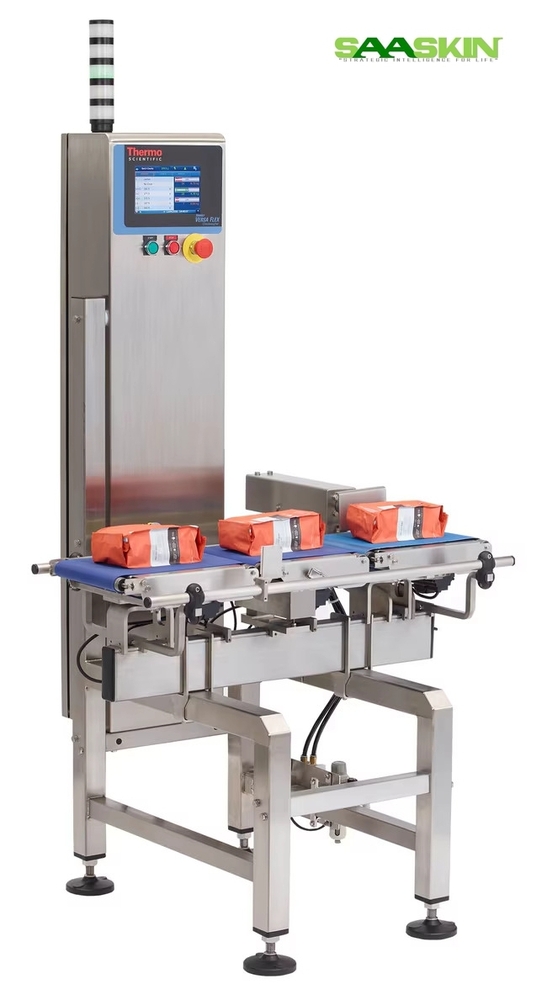

Thermo Scientific Versa Flex Checkweighers

Thermo Scientific Versa Flex Checkweighers

Get a Price/Quote

Product Details:

Voltage 230 V AC
Feature Dynamic in-motion weighing, high precision, reject system included
Automation Grade Fully Automatic
Core Components Weigh cell, belt conveyor, control panel
Temperature Range 5C to 40C
Frequency 50/60 Hz
Power Source Electric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Versa Flex Checkweighers Price And Quantity

Calibration Automatic or manual
Reject Mechanisms Air blast, pusher, or drop-flap (options)
Product Sizes Width: up to 300 mm, Length: up to 400 mm
Maintenance Tool-less belt removal and cleaning
Data Connectivity Ethernet, USB, RS232
Display Resolution 0.1 g
Touchscreen Interface Multilingual, user-friendly interface
Operating Humidity 10% to 90% RH, non-condensing
Conveyor Speed Up to 100 m/min
Installation Floor-standing, easy integration with existing lines
Ingress Protection IP54 standard, optional IP65
Throughput Rate Up to 300 packs/min (application dependent)
Compliance CE, MID, FDA (design dependent)
Product Memory 100 programmable product memories
Line Height Adjustable 7001100 mm

Thermo Scientific Versa Flex Checkweighers Product Specifications

Dimension (L*W*H) 1260 mm x 760 mm x 1250 mm
Core Components Weigh cell, belt conveyor, control panel
Temperature Range 5C to 40C
Equipment Materials Stainless steel (304) construction
Usage Food, pharmaceutical, and packaging industries
Feature Dynamic in-motion weighing, high precision, reject system included
Voltage 230 V AC
Weight Approx. 140 kg (may vary with configuration)
Automation Grade Fully Automatic
Measurement Range 10 g to 6,000 g
Capacity 10 g up to 6,000 g
Model No Versa Flex
Type Automatic Checkweigher
Display Type 7 color touch screen HMI
Power Source Electric
Frequency 50/60 Hz
Accuracy 0.1 g

Calibration Automatic or manual
Reject Mechanisms Air blast, pusher, or drop-flap (options)
Product Sizes Width: up to 300 mm, Length: up to 400 mm
Maintenance Tool-less belt removal and cleaning
Data Connectivity Ethernet, USB, RS232
Display Resolution 0.1 g
Touchscreen Interface Multilingual, user-friendly interface
Operating Humidity 10% to 90% RH, non-condensing
Conveyor Speed Up to 100 m/min
Installation Floor-standing, easy integration with existing lines
Ingress Protection IP54 standard, optional IP65
Throughput Rate Up to 300 packs/min (application dependent)
Compliance CE, MID, FDA (design dependent)
Product Memory 100 programmable product memories
Line Height Adjustable 7001100 mm

Product Description

Brand Thermo Fisher Scientific

Model Versa Flex

Capacity Up to 250 ppm

CAT No VERSAFLEX

Application Checkweigher

Improve efficiency and profitability with checkweighers designed for dry applications. The Thermo Scientific Versa Flex Checkweigher and the Thermo Scientific Versa Flex GP Checkweigher are ideal for weighing a wide range of packaged food, pharmaceutical and personal care products in dry applications, but easily integrate into operations that already use Versa checkweighers. From light to heavy-weight packages, both the Versa Flex (fixed height) and Versa Flex GP (height-adjustable cantilever) checkweighers improve accuracy and reliability while decreasing product giveaway.

High Performance and Versatility

The Versa Flex is designed for rigorous industrial environments, offering top-end speed and a throughput rate tailored to your specific application needs. With IP54 standard ingress protection (optionally IP65), it handles a wide range of product sizes and weights efficiently. Its adjustable line height and modular reject systems ensure suitability for various manufacturing lines, while easy integration with existing setups maximizes operational flexibility.

User-Friendly Operation and Maintenance

Featuring a vibrant 7-inch multilingual touchscreen interface, the Versa Flex prioritizes ease of use and accessibility for operators. Maintenance is simplified by tool-less belt removal and cleaning, letting staff minimize downtime and maintain high hygiene standards. Automatic or manual calibration options and 100 programmable product memories enable quick changeovers and consistent, reliable performance across product runs.

FAQ's of Thermo Scientific Versa Flex Checkweighers:

Q: How does the Thermo Scientific Versa Flex Checkweigher ensure accurate weight measurement?

A: The Versa Flex uses a high-precision weigh cell and advanced dynamic in-motion weighing technology to deliver accuracy ratings of 0.1 g, suitable for detailed weight control in fast-paced industrial lines.

Q: What types of reject mechanisms are available with this checkweigher?

A: You can choose between air blast, pusher, or drop-flap reject options, allowing you to configure the system to suit your product type and production layout for efficient removal of out-of-spec items.

Q: When should I consider using the IP65 ingress protection option?

A: IP65 protection is recommended for environments where regular washdowns or exposure to moisture is likely, while the standard IP54 suits less demanding, dry conditions. This ensures long-lasting, reliable operation regardless of your facility's requirements.

Q: Where can this checkweigher be installed within my existing production line?

A: Designed for floor-standing installation, the Versa Flex features an adjustable line height (700-1100 mm) and modular dimensions to fit seamlessly into various points in your production line, supporting integration with new or existing processes.

Q: What is the process for calibrating the checkweigher?

A: Calibration can be performed automatically or manually, depending on your process requirements. Both methods are easily accessed through the intuitive touchscreen interface, helping maintain consistent accuracy over time.

Q: How can I benefit from the system's data connectivity features?

A: With Ethernet, USB, and RS232 connections, the Versa Flex enables easy data transfer, remote monitoring, and integration into networked plant control systems. This supports traceability, reporting, and more efficient quality control workflows.

Q: What types of products and industries is the Versa Flex suited for?

A: This model serves a wide spectrum of industries, including food, pharmaceutical, and general packaging. Its robust engineering, flexible throughput, and high measurement precision make it ideal for any production line that requires reliable and rapid in-process weight checking.
