Agilent Technologies Ultivo Triple Quadrupole LC/MS System Agilent Technologies Ultivo Triple Quadrupole LC/MS System Agilent Technologies Ultivo Triple Quadrupole LC/MS System
Agilent Technologies Ultivo Triple Quadrupole LC/MS System
Agilent Technologies Ultivo Triple Quadrupole LC/MS System Agilent Technologies Ultivo Triple Quadrupole LC/MS System

Agilent Technologies Ultivo Triple Quadrupole LC/MS System

Get a Price/Quote

Product Details:

  • Capacity Up to 6,000 MRM transitions per second
  • Feature Space-saving compact design, Active exhaust, Jet Stream ESI, fast polarity switching, easy maintenance
  • Temperature Range Ambient to 600C (ion source)
  • Measurement Range 10 fg to 100 ng dynamic range
  • Accuracy High quantitation accuracy, <0.1 Da mass accuracy
  • Power Source AC electrical
  • Automation Grade Automatic, software-controlled
  • Click to View more
Request to Call Back Send Inquiry
X

Agilent Technologies Ultivo Triple Quadrupole LC/MS System Price And Quantity

  • High-sensitivity electron multiplier
  • 515 L/min (adjustable)
  • 15,000 u/sec (max)
  • Agilent Jet Stream Thermal Gradient Focused ESI; AJS ESI, APCI options
  • Up to 500 MRMs/sec
  • Turbomolecular and diaphragm pumps
  • Nitrogen
  • Agilent MassHunter Workstation software suite
  • Compatible with HPLC, UHPLC modules
  • 15 ms (fast switching)
  • Windows 10 (with Agilent MassHunter software)
  • <0.1 pg reserpine S/N > 10,000:1
  • IEC/EN 61010, EMC, RoHS compliant

Agilent Technologies Ultivo Triple Quadrupole LC/MS System Product Specifications

  • High quantitation accuracy, <0.1 Da mass accuracy
  • 10 fg to 100 ng dynamic range
  • Touchscreen LCD interface (via MassHunter LC/MS software)
  • Ambient to 600C (ion source)
  • Stainless steel, chemically resistant polymers
  • Up to 6,000 MRM transitions per second
  • Space-saving compact design, Active exhaust, Jet Stream ESI, fast polarity switching, easy maintenance
  • Triple Quadrupole LC/MS System
  • Quantitative analysis in pharmaceutical, environmental, food safety, and clinical research applications
  • Ultivo G6465A
  • Automatic, software-controlled
  • AC electrical
  • 50/60 Hz
  • 100240 V AC
  • Triple quadrupole analyzer, ion source, vacuum system, detector, electronics, software
  • ~85 kg (187 lbs)
  • 54 x 44 x 50 cm
  • High-sensitivity electron multiplier
  • 515 L/min (adjustable)
  • 15,000 u/sec (max)
  • Agilent Jet Stream Thermal Gradient Focused ESI; AJS ESI, APCI options
  • Up to 500 MRMs/sec
  • Turbomolecular and diaphragm pumps
  • Nitrogen
  • Agilent MassHunter Workstation software suite
  • Compatible with HPLC, UHPLC modules
  • 15 ms (fast switching)
  • Windows 10 (with Agilent MassHunter software)
  • <0.1 pg reserpine S/N > 10,000:1
  • IEC/EN 61010, EMC, RoHS compliant

Product Description

Brand                            Agilent Technologies

Model                            Ultivo

Capacity                       m/z 5-1400

CAT No                         G6465BA

Application                  Spectroscopy

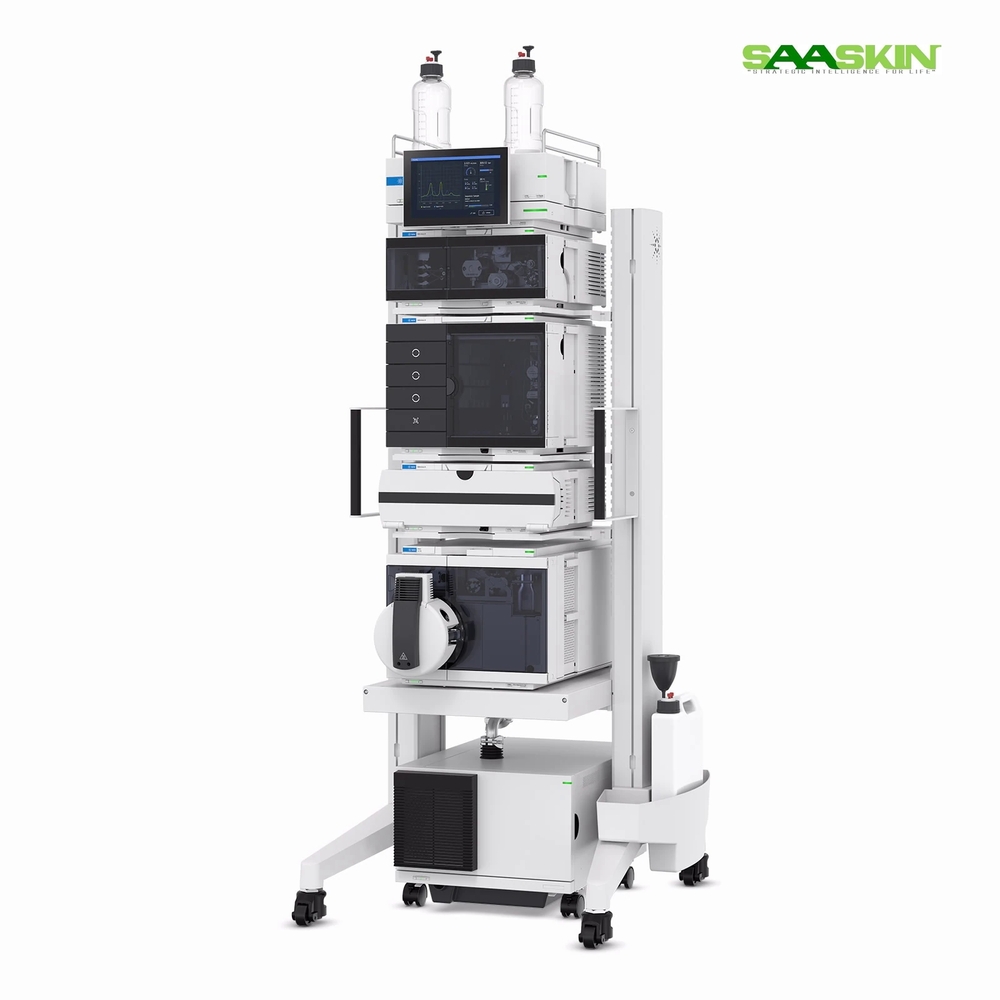

Ultivo is a compact, stackable triple quadrupole LC/MS/MS that eliminates the MS footprint by incorporating the mass spectrometer into the HPLC stack. Representing a transformative approach to triple quadrupole mass spectrometry, Ultivo provides the fit-for-purpose, straightforward, and rugged LC/MS analysis you expect from larger comparable systems, but at a fraction of their size.




Optimal Sensitivity and Speed

The Agilent Ultivo Triple Quadrupole LC/MS stands out with a sensitivity of <0.1 pg reserpine (S/N > 10,000:1) and a maximum scan speed of 15,000 u/sec. Its rapid polarity switching (15 ms) and MRM speed (up to 500 per second) streamline complex analyses and boost laboratory throughput.


Space-Saving and Easy Maintenance

Ultivo's compact footprint (54 x 44 x 50 cm) makes it a practical choice for laboratories with limited bench space. Its active exhaust system and robust, user-friendly design ensure easy maintenance, reducing instrument downtime and maintaining high productivity.


Seamless Integration and Advanced Control

The system is fully compatible with HPLC and UHPLC platforms, and the Agilent MassHunter software suite provides an intuitive touchscreen interface for streamlined operation, data acquisition, and comprehensive analysis, supporting automatic, software-driven workflows for consistent, high-quality results.

FAQ's of Agilent Technologies Ultivo Triple Quadrupole LC/MS System:


Q: How does the Agilent Ultivo Triple Quadrupole LC/MS System enhance quantitative analysis?

A: The Ultivo system employs high-sensitivity electron multiplier detection and Jet Stream ESI technology to achieve low detection limits (<0.1 pg), rapid scan speeds, and mass accuracy below 0.1 Da. This enhances the precision and reliability of quantitative results in demanding analytical applications.

Q: What types of applications are best suited for the Ultivo LC/MS System?

A: This instrument excels in quantitative analysis within pharmaceutical, environmental, food safety, and clinical research laboratories. Its high sensitivity, fast switching, and robust dynamic range make it ideal for detecting trace-level compounds in complex matrices.

Q: When is fast polarity switching beneficial, and how does Ultivo deliver this feature?

A: Fast polarity switching (15 ms) is beneficial when analyzing compounds that require both positive and negative ion detection in a single run. Ultivo's advanced electronics provide seamless switching, increasing throughput and reducing total analysis time.

Q: Where can the Ultivo LC/MS System be deployed?

A: Due to its compact design and compliance with IEC/EN 61010, EMC, and RoHS standards, the Ultivo can be installed in most analytical laboratories with appropriate infrastructure, including pharmaceutical companies, research institutions, and quality control labs.

Q: What is the process for maintaining the Ultivo system?

A: Routine maintenance is simplified by Ultivo's modular design and active exhaust features. Software-guided prompts and easy-access components help users perform regular cleaning and part replacements efficiently, minimizing downtime.

Q: How does the Ultivo LC/MS System integrate with laboratory workflows?

A: Ultivo is designed to integrate seamlessly with existing HPLC/UHPLC modules and is controlled via Agilent MassHunter Workstation software. This allows users to automate processes, manage large sample sets, and perform detailed data analysis from a central interface.

Q: What benefits does the space-saving design of Ultivo offer?

A: The compact dimensions of the Ultivo LC/MS System maximize laboratory workspace efficiency, allowing researchers to install additional instrumentation or optimize bench utilization without sacrificing analytical performance.
