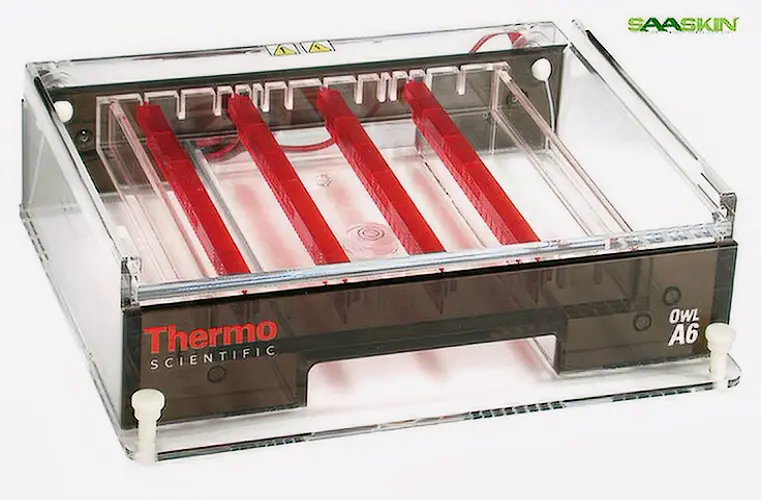

Thermo Scientific Owl A6BP Wide Gel Horizontal Electrophoresis System

Thermo Scientific Owl A6BP Wide Gel Horizontal Electrophoresis System

Get a Price/Quote

Product Details:

Weight Approximately 2.7 kg
Voltage Max. 135 V (recommended voltage: 70-100 V)
Material High-quality acrylic
Power Not specified (typically requires connection to external power supply)
Operate Method Manual operation with casting, loading, and electrophoresis
Capacity Up to 112 samples per run
Application Agarose gel electrophoresis for DNA, RNA analysis
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Owl A6BP Wide Gel Horizontal Electrophoresis System Price And Quantity

Lid Type Vented safety lid with attached power leads
End Gates Leakproof end gates for in-unit gel casting
Safety Features Safety interlock prevents operation when lid is removed
UV Transparency Base offers UV transparency for direct visualization
Operating Temperature Range Ambient laboratory temperature
Buffer Volume 700-1,400 mL
Compatibility Compatible with a range of power supplies
Gel Size 15 x 10 cm (up to 15 x 14 cm with optional accessories)
Sample Throughput 6, 8, 10, or 12 wells per comb; supports multiple comb and tray configuration
Accessories Included Two combs (one 8-well, one 16/18-well); two gel casting trays; casting stand
Maximum Sample Wells Up to 112 (using multi-comb arrangement)

Thermo Scientific Owl A6BP Wide Gel Horizontal Electrophoresis System Product Specifications

Application Agarose gel electrophoresis for DNA, RNA analysis
Color Transparent base with blue end gates/lid
Dimension (L*W*H) 35.5 x 14 x 9 cm (14 x 5.5 x 3.5 in.)
Capacity Up to 112 samples per run
Operate Method Manual operation with casting, loading, and electrophoresis
Power Not specified (typically requires connection to external power supply)
Material High-quality acrylic
Voltage Max. 135 V (recommended voltage: 70-100 V)
Weight Approximately 2.7 kg
Usage Separation and analysis of nucleic acids (DNA/RNA)
Product Type Wide Gel Horizontal Electrophoresis System
Classification Laboratory Instrument

Lid Type Vented safety lid with attached power leads
End Gates Leakproof end gates for in-unit gel casting
Safety Features Safety interlock prevents operation when lid is removed
UV Transparency Base offers UV transparency for direct visualization
Operating Temperature Range Ambient laboratory temperature
Buffer Volume 700-1,400 mL
Compatibility Compatible with a range of power supplies
Gel Size 15 x 10 cm (up to 15 x 14 cm with optional accessories)
Sample Throughput 6, 8, 10, or 12 wells per comb; supports multiple comb and tray configuration
Accessories Included Two combs (one 8-well, one 16/18-well); two gel casting trays; casting stand
Maximum Sample Wells Up to 112 (using multi-comb arrangement)

Product Description

Brand

Thermo Fisher Scientific

Model

Owl A6BP

Capacity

13.75 x 14.94 x 4.38 in. (35 x 38 x 11 cm)

CAT No.

A6BP

Application

Electrophoresis

The Thermo Scientific Owl A6BP Wide Gel Horizontal Electrophoresis System with buffer ports has been discontiued. Please consider the Owl A6 Wide Gel Horizontal Electrophoresis System as its replacement, an ideal system for high-throughput laboratories.

Versatile Gel Capacity and Throughput

The Owl A6BP system is designed for flexibility, supporting gel sizes up to 15 x 10 cm (and 15 x 14 cm with accessories). Multiple comb options allow sample throughput from 6 up to 112 wells per run via a multi-comb arrangement. This versatility makes it ideal for labs handling various nucleic acid analysis tasks.

Safety Features and User-Friendly Operation

Safety is ensured with a vented lid equipped with a safety interlock, preventing accidental operation when the lid is not properly secured. The transparent acrylic base enables direct UV visualization, and the leakproof end gates promote hassle-free gel casting. The unit's straightforward setup and manual operation streamline laboratory workflows.

Comprehensive Accessory Set Included

This electrophoresis system is supplied with a comprehensive accessory package, including two combs (8-well and multi-well), two gel casting trays, and a casting stand. The device's compatibility with standard laboratory power supplies ensures integration into existing lab infrastructure.

FAQ's of Thermo Scientific Owl A6BP Wide Gel Horizontal Electrophoresis System:

Q: How do I cast gels using the Thermo Scientific Owl A6BP system?

A: To cast gels, insert the provided gel casting tray and leakproof end gates, pour in molten agarose, and position the comb of your choice. Once the gel has solidified, remove the comb and transfer the tray with the gel into the main tank for electrophoresis.

Q: What is the maximum sample capacity per run?

A: The system accommodates up to 112 samples in a single run by using a multi-comb arrangement, making it suitable for high-throughput analyses.

Q: When can I directly visualize DNA or RNA samples in the gel?

A: You can visualize nucleic acid samples during or after electrophoresis via the UV-transparent base, allowing for real-time monitoring and documentation under a UV transilluminator.

Q: Where can the Owl A6BP be used?

A: The instrument is designed for use in laboratories conducting nucleic acid analysis, such as molecular biology research, clinical diagnostics, and academic settings. Its design supports applications ranging from DNA fingerprinting to routine RNA analysis.

Q: What are the safety features of the system?

A: The system features a vented safety lid with an interlock mechanism that prevents operation when the lid is not secured, reducing the risk of electrical hazards. Leakproof end gates also protect against buffer spills during casting.

Q: How does using the included accessories benefit my workflow?

A: Accessories such as the multiple combs, trays, and casting stand streamline gel preparation, enable varying sample throughput, and enhance efficiency. This flexibility adapts to changing experiment scales and sample numbers.

Q: What type of power supply is compatible with this electrophoresis unit?

A: The Owl A6BP is compatible with a range of external power supplies with a recommended voltage of 70-100 V (maximum 135 V), allowing integration with commonly available power sources in laboratories.
