Aspirator QuickFlow 4L

Get a Price/Quote

Product Details:

Weight 4.2 kg
Capacity 4 Litres
Material NEW
Usage Laboratory
Color White/Blue
Product Type Instrument
Operate Method Electric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Aspirator QuickFlow 4L Price And Quantity

Minimum Order Quantity 1 Unit

Aspirator QuickFlow 4L Product Specifications

Voltage 110/220V
Classification Medical Device
Application Hospital, Clinic, Laboratory
Dimension (L*W*H) 41 x 21 x 22 cm
Weight 4.2 kg
Material NEW
Usage Laboratory
Capacity 4 Litres
Operate Method Electric
Color White/Blue
Product Type Instrument
Power 110-230V AC, 50/60Hz

Flow Rate 25 L/min
Vacuum Adjustment Yes
Noise Level < 65 dB(A)
Power Consumption 90 W
Hose Material Medical Grade PVC
Mobility Portable with Carry Handle
Pump Type Oil-Free Piston
Overflow Protection Yes
Control Type Manual with Vacuum Gauge
Max Vacuum Pressure 0.08 MPa
Jar Type Autoclavable

Product Description

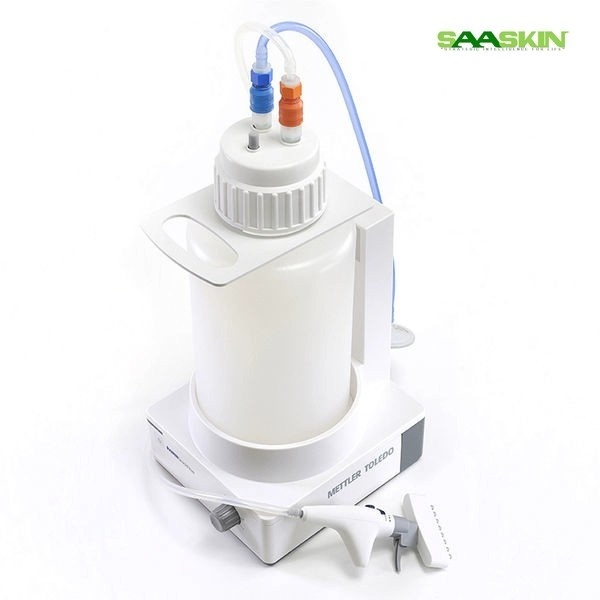

The Rainin QuickFlow aspiration system includes the base unit with pump and non-contact fill sensor, 4 L autoclavable bottle, 2 m tubing and ergonomic handle kit with 3 adaptors (single channel, 8-channel and glass Pasteur pipette).

Cat no	Product name
30551530	Aspirator QuickFlow 4L LTS EN
30519826	Aspirator QuickFlow 4L UNV EN

Optimal Suction Performance

Equipped with a high maximum vacuum pressure of 0.08 MPa and a flow rate of 25 L/min, the Aspirator QuickFlow 4L delivers efficient suction suitable for a range of medical and laboratory tasks. The oil-free piston pump reduces maintenance requirements and prevents contamination, ensuring consistent and dependable performance.

User-Friendly and Portable Design

This aspirator is designed with portability in mind, featuring a lightweight construction (4.2 kg) and a sturdy carry handle. Manual control with a vacuum gauge allows for precise adjustment, and the device operates quietly below 65 dB(A), making it suitable for clinical environments where noise should be minimized.

Safe and Hygienic Operation

Safety and hygiene are prioritized in the QuickFlow 4L. The overflow protection system prevents accidental spillage, while the autoclavable 4L jar and the medical-grade PVC hose support easy sterilization and safe fluid collection. Its compact dimensions and robust materials make it a practical solution for daily usage.

FAQ's of Aspirator QuickFlow 4L:

Q: How do I operate and adjust the vacuum pressure on the Aspirator QuickFlow 4L?

A: To operate the Aspirator QuickFlow 4L, simply plug it into a compatible power source (110/220V AC, 50/60Hz), turn it on, and use the manual control with the integrated vacuum gauge to adjust the pressure to your desired level. The device supports user-friendly operation and real-time pressure monitoring.

Q: What benefits does the oil-free piston pump offer compared to traditional aspiration systems?

A: The oil-free piston pump provides a clean, maintenance-free operation without the risk of oil contamination, thereby reducing long-term maintenance costs and improving overall device reliability. This makes it ideal for environments with strict hygiene requirements, such as laboratories and clinics.

Q: When is it necessary to sterilize the jar and how is it done?

A: You should sterilize the autoclavable jar after each use to ensure optimal hygiene and prevent cross-contamination. The jar can be cleaned using standard laboratory autoclaving methods, which involve steam sterilization at high temperature for effective disinfection.

Q: Where can the Aspirator QuickFlow 4L be used?

A: This device is suitable for use in a variety of settings-including hospitals, clinics, laboratories, and other healthcare facilities-thanks to its portability, versatile power input, and robust performance.

Q: What process is in place to prevent fluid overflow during operation?

A: The QuickFlow 4L is equipped with an overflow protection system that automatically stops fluid from entering the pump once the collection jar is full, ensuring safe and continuous operation.

Q: How does using medical-grade PVC hoses enhance device safety?

A: Medical-grade PVC hoses are designed to be biocompatible, flexible, and resistant to chemicals and contaminants, which helps maintain a sterile pathway for aspirated fluids and supports overall patient safety.
