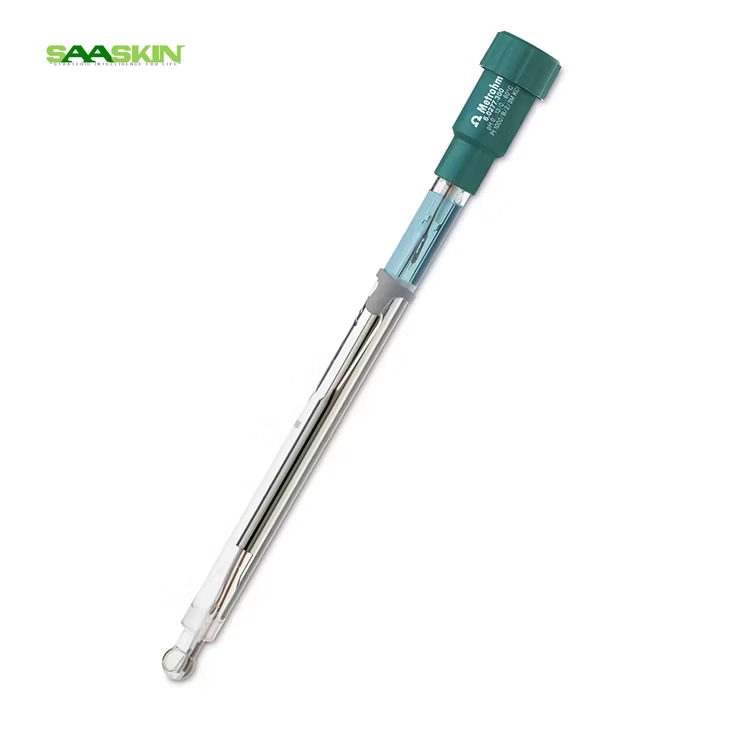

Metrohm Double Pt sheet electrode

Get a Price/Quote

Product Details:

Product Type Double Platinum Sheet Electrode
Classification Electrode (for Electrochemistry)
Usage Electrochemical measurements, titrations
Material Platinum (Pt) sheets in glass support
Dimension (L*W*H) 10 mm x 25 mm x 0.2 mm (approx.)
Weight Approx. 5 g
Operate Method Submerge and connect via electrode cable
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metrohm Double Pt sheet electrode Price And Quantity

Chemical Resistance Highly resistant (Platinum/Glass)
Temperature Range Up to 80°C
Brand Compatibility Compatible with Metrohm instruments
Maintenance Rinse with distilled water after use
Holder Material Glass
Connector Type Standard Metrohm BNC/Post connection
Electrode Shape Double sheet, parallel configuration
Part Number 6.0340.100
Packaging Supplied in protective plastic box
Calibration Required No (ready to use)

Metrohm Double Pt sheet electrode Product Specifications

Power Not Applicable (passive device)
Color Silver/Platinum
Application Coulometric and Karl Fischer titration, general electroanalytical purposes
Dimension (L*W*H) 10 mm x 25 mm x 0.2 mm (approx.)
Material Platinum (Pt) sheets in glass support
Classification Electrode (for Electrochemistry)
Product Type Double Platinum Sheet Electrode
Usage Electrochemical measurements, titrations
Weight Approx. 5 g
Voltage Compatible up to 50 V (refer instrument manual)
Operate Method Submerge and connect via electrode cable

Chemical Resistance Highly resistant (Platinum/Glass)
Temperature Range Up to 80°C
Brand Compatibility Compatible with Metrohm instruments
Maintenance Rinse with distilled water after use
Holder Material Glass
Connector Type Standard Metrohm BNC/Post connection
Electrode Shape Double sheet, parallel configuration
Part Number 6.0340.100
Packaging Supplied in protective plastic box
Calibration Required No (ready to use)

Product Description

Brand Metrohm

Material Glass

Capacity 0-14 pH

CAT No. 60309100

Application Titration Accessories

Glass shaft electrode with two platinum sheets (0.15 x 8 x 8 mm) which are polarized for redox titrations (bivoltammetric titration). This electrode is well suited for

Vitamin C determination
Coulometric nitrogen determination
Bromine index
Sulfurous acid (SO2) in wine
Oxygen content according to Winkler

Optimized for Precision Electrochemistry

Designed for use in a wide variety of electrochemical measurements and titrations, this double platinum sheet electrode delivers consistent accuracy. The parallel sheet configuration maximizes surface area for reliable results, while its premium glass holder enhances robustness against harsh chemical environments.

Uncompromised Compatibility and Convenience

Fitted with a standard Metrohm BNC/Post connection, this electrode is instantly compatible with Metrohm instruments, facilitating swift setup in laboratories. The included protective plastic box ensures safe handling and storage. Ready to use straight out of the box, no pre-use calibration is required.

Long-Lasting Performance with Minimal Maintenance

Platinum sheets embedded in glass offer high resistance to corrosive chemicals, supporting operations up to 80C. Simple maintenance-rinsing with distilled water after each use-helps preserve the electrode's longevity and measurement accuracy, making it a reliable asset for frequent and high-volume testing.

FAQ's of Metrohm Double Pt sheet electrode:

Q: How do I properly connect the Metrohm Double Pt sheet electrode to my instrument?

A: The electrode features a standard Metrohm BNC/Post connector, allowing it to be easily attached to compatible Metrohm instruments using the appropriate electrode cable. Ensure the cable is securely connected before submerging the electrode in your solution.

Q: What are the primary applications for this double platinum sheet electrode?

A: This electrode is engineered for use in coulometric and Karl Fischer titrations, as well as general electroanalytical measurements, providing high accuracy and chemical resistance in demanding laboratory environments.

Q: When is calibration required for this electrode?

A: No calibration is necessary before use. The electrode is delivered pre-calibrated and ready for electrochemical measurements, simplifying laboratory operations and maintaining efficiency.

Q: Where should the electrode be stored when not in use?

A: It is recommended to store the electrode in its provided protective plastic box in a clean and dry location. This ensures its safety from physical damage and chemical contamination when not actively being used.

Q: What maintenance steps are needed after usage?

A: After each use, thoroughly rinse the electrode with distilled water to remove any residues. This straightforward cleaning process helps maintain the electrode's high performance and extends its service life.

Q: What benefits does the platinum and glass construction provide?

A: The combination of platinum sheets and a glass holder offers exceptional chemical resistance, enabling accurate measurements even in aggressive solutions, and ensures durability during repeated laboratory use.

Q: How should the electrode be operated for measurement processes?

A: Connect the electrode to your instrument using the electrode cable, then submerge it in your sample solution according to your protocol. Always refer to your instrument's manual for specific voltage compatibility and operational guidelines.
