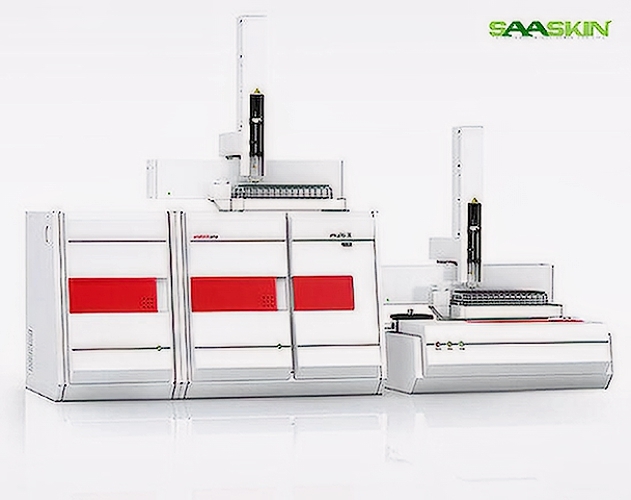

Analytikjena Multi EA 4000 S

Get a Price/Quote

Product Details:

Core Components High-temperature combustion furnace, auto sampler, detection system
Model No Multi EA 4000 S
Measurement Range C: 5 g - 100 mg, S: 8 g - 100 mg, Cl: 10 g - 100 mg (sample dependent)
Capacity Sample weights up to 3 g (solid), up to 10 L (liquid)
Frequency 50/60 Hz
Temperature Range up to 1,500 C
Automation Grade Fully Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Analytikjena Multi EA 4000 S Price And Quantity

Detection Principle High-temperature combustion with non-dispersive infrared (NDIR) and coulometric detection
Moisture Management Integrated water vapor management and removal system
Furnace Technology Resistive ceramic heating, self-monitoring temperature control
Compliance Meets ASTM, DIN, ISO, EPA, and other international standards
Operating Environment 1035 C, max 80% humidity (non-condensing)
Gas Supply Requires oxygen (purity 99.5%) and optionally carrier gas depending on application
Software Easy-to-use software with multi-user management and data export
Sample Feeding Automatic solid and liquid samplers available
Throughput Up to 120 samples per hour (dependant on method and sample)
Safety Features Overheat protection, automatic leak check, system diagnostics

Analytikjena Multi EA 4000 S Product Specifications

Feature Fully automated analysis, multi-matrix capability, modular design, suitable for a wide application spectrum
Equipment Materials Corrosion-resistant stainless steel and coated surfaces
Voltage 230 V
Accuracy ppm range (depending on configuration and analyte)
Usage Analytical determination of carbon, sulfur, chlorine, and nitrogen in solid/liquid samples
Power Source Electric
Dimension (L*W*H) 990 x 600 x 420 mm
Automation Grade Fully Automatic
Display Type Graphic LCD Display
Temperature Range up to 1,500 C
Weight approx. 75 kg
Frequency 50/60 Hz
Type Elemental Analyzer (C, S, Cl, N) for solid and liquid samples
Capacity Sample weights up to 3 g (solid), up to 10 L (liquid)
Measurement Range C: 5 g - 100 mg, S: 8 g - 100 mg, Cl: 10 g - 100 mg (sample dependent)
Core Components High-temperature combustion furnace, auto sampler, detection system
Model No Multi EA 4000 S

Detection Principle High-temperature combustion with non-dispersive infrared (NDIR) and coulometric detection
Moisture Management Integrated water vapor management and removal system
Furnace Technology Resistive ceramic heating, self-monitoring temperature control
Compliance Meets ASTM, DIN, ISO, EPA, and other international standards
Operating Environment 1035 C, max 80% humidity (non-condensing)
Gas Supply Requires oxygen (purity 99.5%) and optionally carrier gas depending on application
Software Easy-to-use software with multi-user management and data export
Sample Feeding Automatic solid and liquid samplers available
Throughput Up to 120 samples per hour (dependant on method and sample)
Safety Features Overheat protection, automatic leak check, system diagnostics

Product Description

Brand Analytikjena

Model 4000 S

Capacity 2 %, RSD < 2 %

CAT No 450-126.565

Application TOC Analyzer

The multi EA 4000 guarantees the fully automated determination of TS, TC, TX contents and the environmentally relevant parameters TOC, TIC, EC, and BOC in soil, sediments, waste, minerals, and other organic and inorganic solids. Its modular design concept allows to expand the application range from an one element analyzer to a fully automated multi-element analysis system at any time.

Effortless Multi-Element Analysis

The Multi EA 4000 S streamlines elemental analysis with its fully automated, multi-matrix approach. Operators can measure carbon, sulfur, chlorine, and nitrogen across a wide range of sample types with minimal user intervention. Its modular design improves efficiency, enabling swift transition between various applications and sample matrices.

Superior Detection and Throughput

With cutting-edge detection methods - combining high-temperature combustion, NDIR, and coulometry - the system offers sensitivity in the ppm range. Capable of processing up to 120 samples per hour, the Multi EA 4000 S boosts laboratory productivity, making it a top choice for high-throughput environments.

Comprehensive Safety and Compliance

Equipped with overheat protection, automated leak checks, and systematic diagnostics, the Multi EA 4000 S prioritizes operator safety and long-term reliability. Its compliance with international standards (ASTM, DIN, ISO, EPA) assures data integrity and regulatory alignment for laboratories worldwide.

FAQ's of Analytikjena Multi EA 4000 S:

Q: How does the Multi EA 4000 S detect elements in samples?

A: The Multi EA 4000 S uses high-temperature combustion to break down samples, then employs non-dispersive infrared (NDIR) and coulometric detection to accurately quantify carbon, sulfur, chlorine, and nitrogen. This combination ensures both precision and versatility across a broad range of sample matrices.

Q: What are the sample handling capabilities of the Multi EA 4000 S?

A: It supports both automatic solid and liquid sample feeding, accommodating up to 3 grams for solids and up to 10 L for liquids. This flexibility allows efficient analysis of diverse substances without manual intervention, maximizing throughput and reliability.

Q: When should routine maintenance be performed on the instrument?

A: Regular maintenance intervals vary depending on usage and sample types but typically include checking the combustion furnace, cleaning sample feeders, and verifying gas supplies. The built-in diagnostic system also prompts users when specific maintenance is required to ensure continuous optimal performance.

Q: Where can the Multi EA 4000 S be installed and operated effectively?

A: The analyzer is designed for laboratory environments, best operated within temperatures of 10-35 C and up to 80% non-condensing humidity. Its corrosion-resistant build and compact dimensions (990 x 600 x 420 mm) allow easy integration into standard laboratory setups.

Q: What is the measurement range and accuracy for elemental detection?

A: Measurement ranges depend on the element: carbon (5 g - 100 mg), sulfur (8 g - 100 mg), and chlorine (10 g - 100 mg, sample dependent). The analyzer delivers accuracy in the ppm range, making it suitable for highly sensitive and precise quantitative analysis.

Q: How does the software enhance the user experience?

A: The easy-to-use software features multi-user management, allowing multiple operators to work simultaneously. It also supports comprehensive data export for result tracking and reporting, contributing to streamlined workflows in multi-user lab environments.

Q: What are the key benefits of using the Multi EA 4000 S?

A: The instrument offers automated, high-throughput elemental analysis with rigorous safety and compliance, making it ideal for quality control and research tasks. Its robust design, modularity, and advanced detection technologies provide reliable results for a variety of applications in industrial and environmental laboratories.
