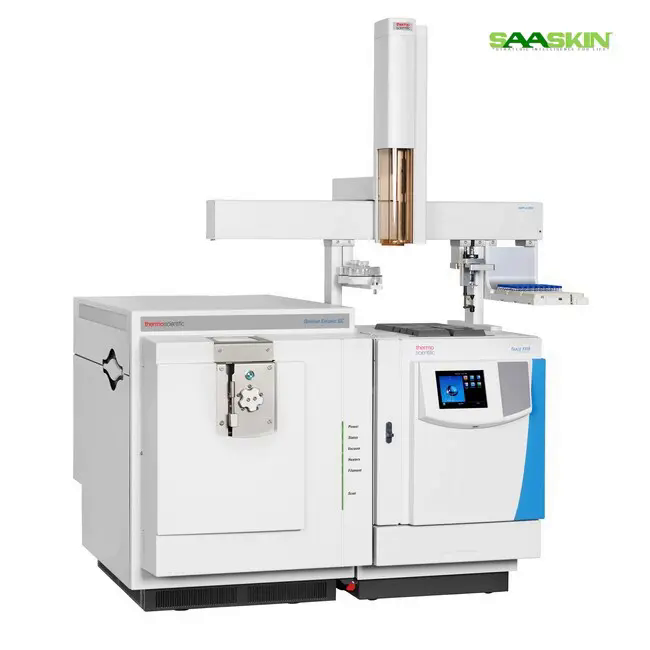

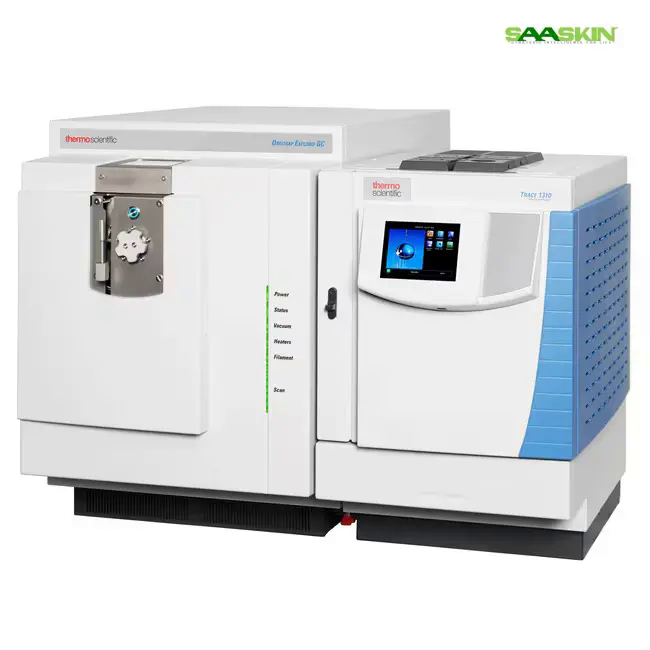

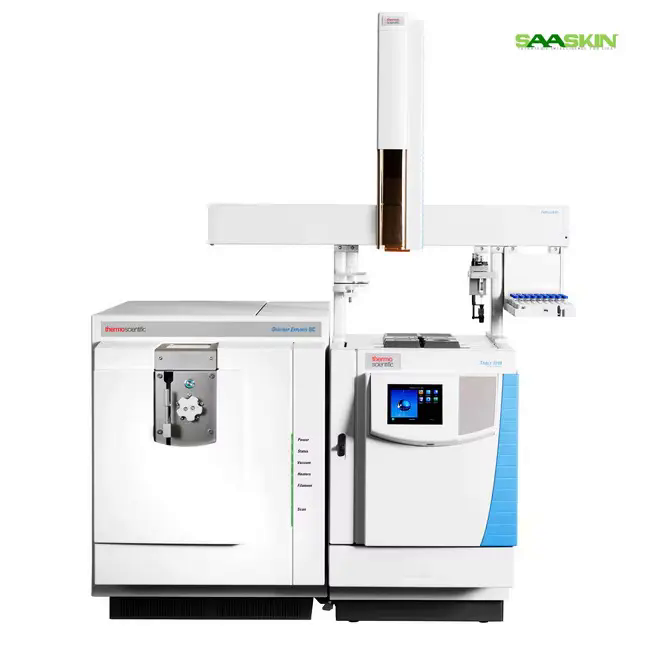

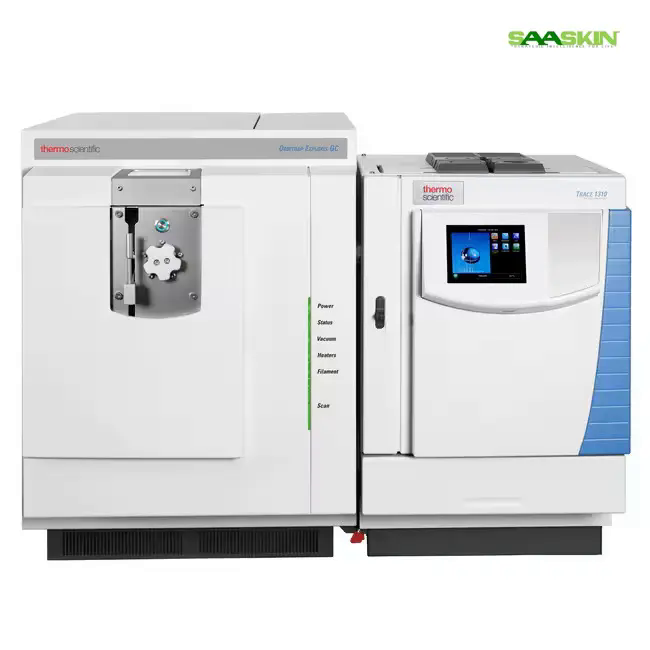

Thermo Scientific Orbitrap Exploris GC Mass Spectrometer

Thermo Scientific Orbitrap Exploris GC Mass Spectrometer

Get a Price/Quote

Product Details:

Automation Grade Fully automated/autosampler-compatible
Power Source AC mains
Accuracy Mass accuracy <1 ppm RMS (with external calibration)
Feature High-resolution accurate mass analysis, wide dynamic range, full scan MS and tandem MS (MS/MS), compatibility with multiple ionization sources
Temperature Range Ambient to 450C (oven); transfer line up to 400C
Frequency 50/60 Hz
Measurement Range Up to 6 orders of magnitude dynamic range
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Orbitrap Exploris GC Mass Spectrometer Price And Quantity

Noise Level <65 dB(A)
Scan Speed Up to 60 Hz
Cooling System Built-in intelligent cooling
Mass Resolution >= 60,000 FWHM at m/z 200
Sample Throughput High, supports multi-sample automation
Ion Source Electron Ionization (EI), Chemical Ionization (CI) supported
Operating Environment 1530C, up to 80% relative humidity (non-condensing)
Data System Thermo Scientific Chromeleon and TraceFinder compatibility
Vacuum System Robust turbomolecular and backing pump system
Detector Type High efficiency detection system

Thermo Scientific Orbitrap Exploris GC Mass Spectrometer Product Specifications

Weight Approx. 140 kg (instrument only)
Frequency 50/60 Hz
Temperature Range Ambient to 450C (oven); transfer line up to 400C
Display Type Digital touchscreen interface
Accuracy Mass accuracy <1 ppm RMS (with external calibration)
Feature High-resolution accurate mass analysis, wide dynamic range, full scan MS and tandem MS (MS/MS), compatibility with multiple ionization sources
Automation Grade Fully automated/autosampler-compatible
Power Source AC mains
Voltage 220240 V AC
Model No Orbitrap Exploris GC
Dimension (L*W*H) 1260 x 980 x 710 mm
Usage Analytical and research laboratories for qualitative and quantitative GC-MS analysis
Core Components Orbitrap mass analyzer, GC module, vacuum system, electronics, sampling interface
Type Gas Chromatograph-Mass Spectrometer (GC-MS)
Equipment Materials Corrosion-resistant high-grade stainless steel, engineered polymers
Capacity 96 samples (standard) via autosampler, expandable with compatible autosamplers
Measurement Range Up to 6 orders of magnitude dynamic range

Noise Level <65 dB(A)
Scan Speed Up to 60 Hz
Cooling System Built-in intelligent cooling
Mass Resolution >= 60,000 FWHM at m/z 200
Sample Throughput High, supports multi-sample automation
Ion Source Electron Ionization (EI), Chemical Ionization (CI) supported
Operating Environment 1530C, up to 80% relative humidity (non-condensing)
Data System Thermo Scientific Chromeleon and TraceFinder compatibility
Vacuum System Robust turbomolecular and backing pump system
Detector Type High efficiency detection system

Product Description

Brand

Thermo Fisher Scientific

Model

Orbitrap

Capacity

Up to 40 Hz at resolution setting 7,500 at m/z 200

CAT No

BRE725541

Application

Spectroscopy

Simplify operations and deliver consistently accurate results in analytical testing using the Thermo Scientific Orbitrap Exploris GC Mass Spectrometer. This GC-MS system offers a unique depth of analysis and unparalleled accuracy and precision to improve everyday quantitation, screening and sample profiling. It provides the flexibility to keep pace with ever-changing regulations and explore new analytical opportunities through increased scope and method consolidation. Simple instrument set up and intelligent informatics enable users of all abilities to easily access data-rich information.

Exceptional Mass Accuracy and Resolution

With a mass resolution of 60,000 FWHM at m/z 200 and mass accuracy under 1 ppm, the Orbitrap Exploris GC delivers highly confident identification and quantitation, streamlining analysis even for complex samples. Its high-resolution analyzing capability enables detailed detection, essential for both research and routine QC labs.

Versatile Ionization and Dynamic Detection

Supporting both Electron Ionization (EI) and Chemical Ionization (CI), this instrument adapts to diverse analytical needs. The high-efficiency detection system allows acquisition of data at scan speeds up to 60 Hz, ensuring sensitive, accurate, and high-throughput sample analysis in a range of laboratory environments.

Smart Automation and User-Friendly Operation

With auto-sampler support for 96 samples (expandable), built-in intelligent cooling, and a digital touchscreen, this GC-MS system is designed for easy handling and continuous performance. Integration with Thermo Scientific Chromeleon and TraceFinder supports seamless data management and workflow automation.

FAQ's of Thermo Scientific Orbitrap Exploris GC Mass Spectrometer:

Q: How does the Orbitrap Exploris GC Mass Spectrometer improve laboratory workflow?

A: The Orbitrap Exploris GC features high sample throughput with a 96-sample autosampler, expandable with additional compatible units. Fully automated, it minimizes manual handling, speeds up analysis time, and ensures reliable, repeatable results. Its digital touchscreen and intelligent cooling further enhance operational efficiency.

Q: What sample types and analyses are suitable for this GC-MS system?

A: This instrument supports both qualitative and quantitative analyses of volatile and semi-volatile compounds across various sample matrices. It's ideal for applications in environmental, food safety, forensics, pharmaceuticals, and research labs requiring high-resolution, accurate mass GC-MS analysis.

Q: When should I use Electron Ionization (EI) versus Chemical Ionization (CI) with this instrument?

A: Use Electron Ionization (EI) for general-purpose, high-sensitivity analysis of compounds with known fragmentation patterns. Chemical Ionization (CI) is suitable for softer ionization, often applied when analyzing compounds prone to fragmentation or where molecular ion information is critical.

Q: Where can the Orbitrap Exploris GC be installed and what are the environmental requirements?

A: The instrument can be installed in analytical or research laboratories, requiring ambient temperatures of 15-30C and non-condensing humidity up to 80%. It operates on standard 220-240 V AC mains and has a noise level of less than 65 dB(A), supporting quiet lab environments.

Q: What is the process for data acquisition and analysis on this instrument?

A: Data is acquired using the high-resolution Orbitrap mass analyzer, with real-time processing via Thermo Scientific Chromeleon and TraceFinder software. These platforms provide streamlined control, result interpretation, and reporting for both full scan MS and MS/MS experiments.

Q: How does the instrument ensure analytical accuracy and consistency?

A: The mass spectrometer delivers mass accuracy below 1 ppm RMS (with external calibration) and uses a robust high-grade stainless steel construction, advanced vacuum system, and built-in cooling to provide stable, reliable analysis over prolonged operational periods.

Q: What benefits does the wide dynamic and measurement range offer to users?

A: A wide dynamic range of up to 6 orders of magnitude enables the detection and quantification of trace and abundant analytes within the same run, increasing confidence and versatility for complex sample analysis.
