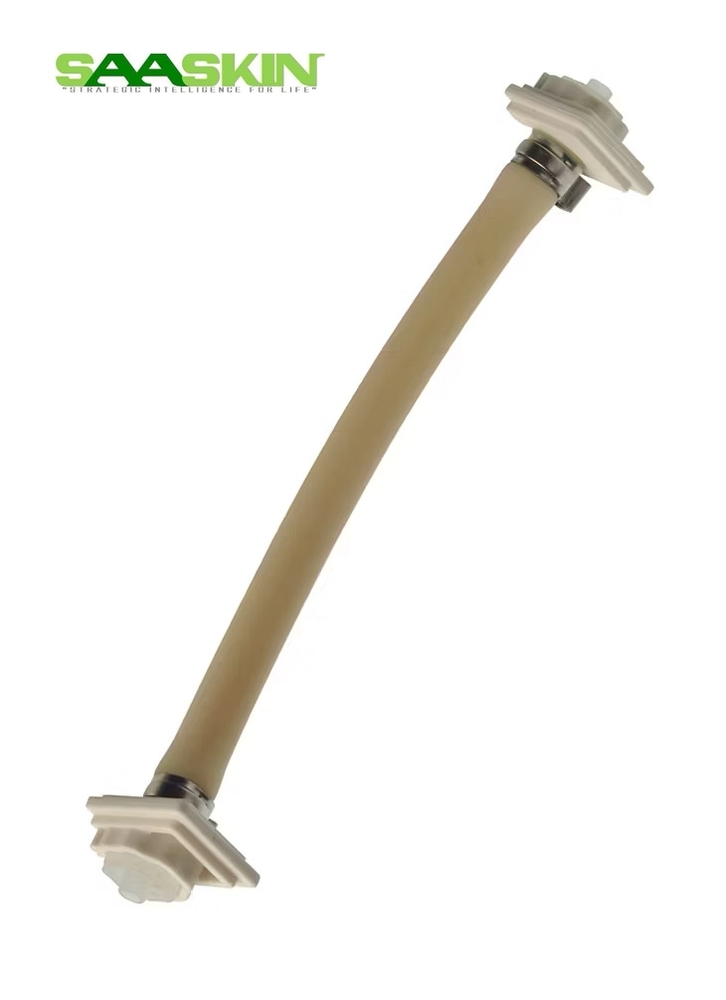

Metrohm Pharm-A-line pump tubing to the peristaltic pump module

Metrohm Pharm-A-line pump tubing to the peristaltic pump module

Get a Price/Quote

Product Details:

Product Type Pharm-A-line Pump Tubing
Power N/A (dependent on connected pump module)
Application Pharmaceutical analysis, laboratory applications, dispensing, fluid transfer
Color Translucent/White
Operate Method Manual or automated with Metrohm peristaltic pump module
Capacity Depends on tubing size and pump configuration
Dimension (L*W*H) Custom sizes available (refer to product selection)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metrohm Pharm-A-line pump tubing to the peristaltic pump module Price And Quantity

Metrohm Pharm-A-line pump tubing to the peristaltic pump module Product Specifications

Capacity Depends on tubing size and pump configuration
Product Type Pharm-A-line Pump Tubing
Dimension (L*W*H) Custom sizes available (refer to product selection)
Material Pharm-A-line (thermoplastic elastomer, high purity)
Classification Laboratory Consumables
Color Translucent/White
Operate Method Manual or automated with Metrohm peristaltic pump module
Weight Varies with tubing size (lightweight)
Usage Fluid transfer in peristaltic pump systems
Voltage N/A (dependent on connected pump module)
Power N/A (dependent on connected pump module)
Application Pharmaceutical analysis, laboratory applications, dispensing, fluid transfer

Sterility Non-sterile (can be sterilized by autoclaving or gamma irradiation)
Maximum Operating Temperature Up to 80°C (176°F)
Flexibility Highly flexible, suitable for repeated pump cycling
Wall Thickness Approximately 1.6 mm (varies by tubing size)
Connector Compatibility Compatible with standard Metrohm and most peristaltic pump modules
Typical Flow Rate Up to 1200 ml/min (depends on pump speed and tubing size)
Shelf Life Up to 2 years when properly stored
Inner Diameter Range 1.6 mm to 8.0 mm (varies by model)
Chemical Resistance Resistant to acids, bases, and aqueous solutions
Transparency Good visibility of flow
Maximum Working Pressure Up to 2.7 bar (dependant on tubing ID and wall thickness)

Product Description

Brand Metrohm

Material PP

Capacity A-Line pump

CAT No. 601801020

Application Titration Accessories

The pump tubing comes pre-equipped with adapters that permit direct installation in the peristaltic pump of the pump module. The Pharm-A-line pump tubing is used for the transport of both aqueous and nonaqueous solutions and must be operated in connection with the white press clamp in the pump module.

Engineered for Versatility in Pharma and Laboratory Use

Pharm-A-line tubing stands out for its adaptability across numerous laboratory and pharmaceutical analysis processes. Its broad inner diameter and wall thickness selections allow precise matching to pump modules and applications, ensuring reliable and consistent fluid transfer. Metrohm compatibility further enhances its utility in automated or manual workflows.

Superior Chemical Resistance and Durability

Made from a high-purity thermoplastic elastomer, Pharm-A-line tubing resists a wide array of acids, bases, and aqueous solutions. It maintains flexible integrity through repeated peristaltic cycling and endures operating temperatures up to 80C, making it suitable for demanding laboratory and pharmaceutical environments.

FAQ's of Metrohm Pharm-A-line pump tubing to the peristaltic pump module:

Q: How can Metrohm Pharm-A-line pump tubing be sterilized before use?

A: Metrohm Pharm-A-line pump tubing is supplied non-sterile but can be sterilized using autoclaving or gamma irradiation, depending on your laboratory's standard protocols.

Q: What are the typical applications for this tubing in laboratory and pharmaceutical settings?

A: This tubing is typically used for fluid transfer, dispensing, and pharmaceutical analysis. It is especially suited for integration with peristaltic pump systems thanks to its chemical resistance, flexibility, and compatibility with standard Metrohm modules.

Q: When should I replace the tubing to maintain optimal performance?

A: It is advisable to replace the tubing annually, or sooner if signs of wear or a reduction in flow accuracy are observed. Proper storage extends the shelf life to up to two years, but usage frequency and the chemicals transferred can influence replacement intervals.

Q: Where can I order custom sizes for specific peristaltic pump configurations?

A: Custom sizes are available directly from authorized Metrohm dealers, distributors, or suppliers. Refer to the product selection guide or consult your local representative in India for precise dimensions matching your requirements.

Q: What is the maximum pressure and temperature the tubing can handle?

A: The tubing can withstand maximum working pressures up to 2.7 bar, depending on inner diameter and wall thickness, and operates efficiently at temperatures up to 80C (176F). Always verify these specifications based on your selected model.

Q: What are the benefits of using Pharm-A-line pump tubing over standard options?

A: Benefits include excellent chemical resistance, good visibility of fluid flow thanks to its translucency, flexibility for repeated cycling, and compatibility with various Metrohm pump systems, making it highly reliable for laboratory and pharmaceutical fluid transfer.
