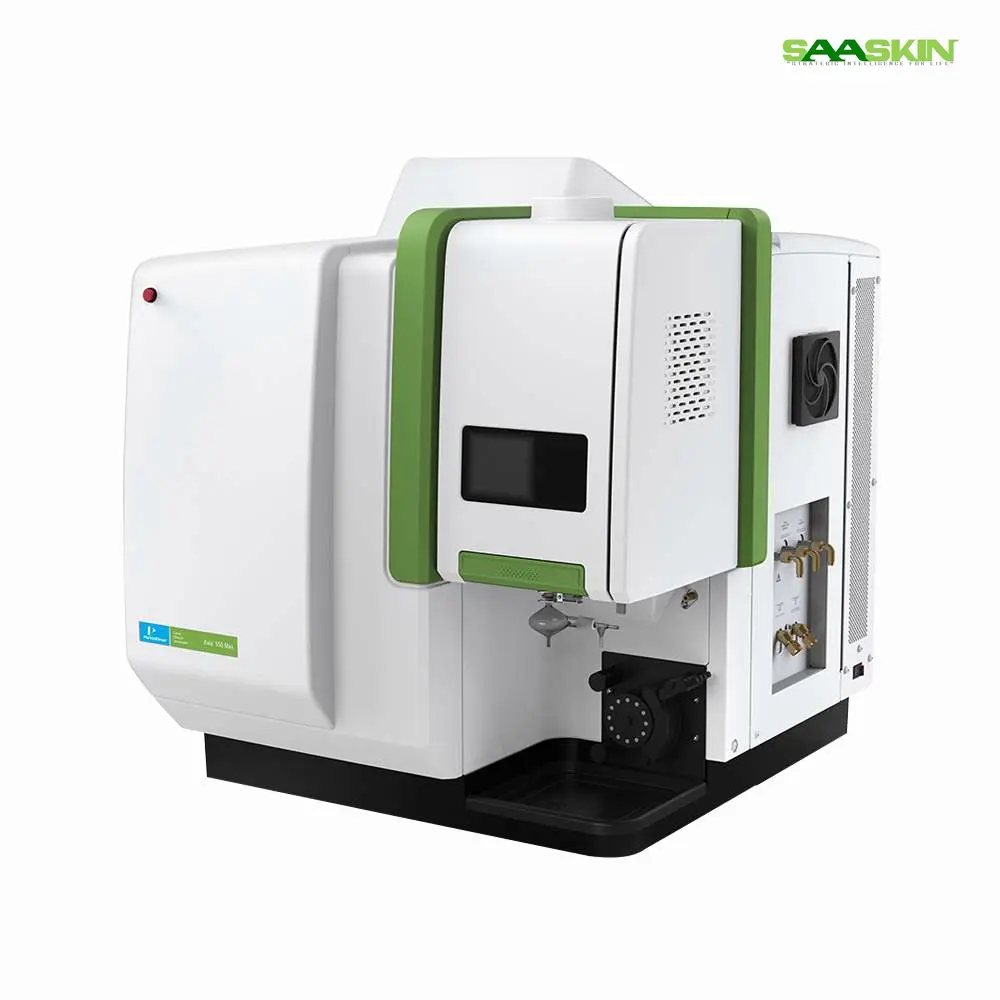

PerkinElmer Avio 550 Max ICP-OES Concentric/Cyclonic Configuration

PerkinElmer Avio 550 Max ICP-OES Concentric/Cyclonic Configuration

Get a Price/Quote

Product Details:

Model No Avio 550 Max
Feature High sensitivity, low argon consumption, advanced plasma view, plug-and-play torch technology
Measurement Range ppm to % level detection for most elements
Frequency 50/60 Hz
Voltage 100-240 V AC
Power Source AC Electricity
Capacity Simultaneous multi-element analysis capability
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer Avio 550 Max ICP-OES Concentric/Cyclonic Configuration Price And Quantity

PerkinElmer Avio 550 Max ICP-OES Concentric/Cyclonic Configuration Product Specifications

Frequency 50/60 Hz
Voltage 100-240 V AC
Display Type Integrated touch screen and software interface
Type Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES)
Feature High sensitivity, low argon consumption, advanced plasma view, plug-and-play torch technology
Measurement Range ppm to % level detection for most elements
Equipment Materials Corrosion-resistant alloys, polymeric and ceramic components
Model No Avio 550 Max
Temperature Range Ambient to 40C (operating environmental range)
Core Components Plasma system, Shear gas system, CID detector, Concentric/Cyclonic sample introduction system, Optical system
Usage Elemental analysis in laboratory applications (environmental, food, pharma, mining, petrochemicals, etc.)
Weight Approximately 115 kg (253 lbs)
Accuracy Sub-ppb detection limits, high precision (typical RSD < 1%)
Automation Grade Fully automatic (with autosampler option)
Power Source AC Electricity
Capacity Simultaneous multi-element analysis capability
Dimension (L*W*H) 107.5 cm x 64.5 cm x 68.5 cm

Start-up Time Less than 10 minutes
RF Generator Power 1500 W, free-running solid-state
Interface USB, Ethernet connectivity
Detection System High-speed segmented-array Charge Coupled Device (SCD) detector
Gas Flows Plasma gas (argon): up to 16 L/min; Auxiliary gas: 0-2.0 L/min; Nebulizer gas: 0-1.2 L/min
Maintenance Tool-free torch/injector removal and replacement
Shear Gas System Built-in, argon compatible
Element Coverage Detects over 73 elements
Data Handling Syngistix for ICP software for easy operation and data analysis
Nebulizer Type Concentric nebulizer with cyclonic spray chamber
Safety Compliance CE, RoHS, and international safety standards
Plasma View Dual view (radial and axial)
Operating Humidity 20% - 80% (non-condensing)
Sample Throughput High throughput; short analysis time (as fast as 10 seconds per sample)
Wavelength Range 165 - 900 nm

Product Description

Brand

PerkinElmer

Model

550

Capacity

Double-monochromator optical system

CAT No

N0810005

Application

Spectroscopy

The Avio 550 Max is a compact, fully simultaneous ICP-OES instrument, ideal for labs with high throughput requirements. It utilizes a vertical plasma and is engineered to handle even the most difficult, high-matrix samples without dilution, delivering productivity, performance and faster return on investment. Plus, Syngistix for ICP software provides an intuitive and smart environment with smart monitoring for real-time instrument and sample diagnostics as well as results viewing to easily track sample analysis, quality control, and internal standard performance to guarantee sample accuracy.

Dual Plasma View for Enhanced Versatility

The Avio 550 Max offers both radial and axial plasma observation, allowing users to tailor detection for maximum sensitivity or higher linearity, depending on the sample matrix and element of interest. This flexible plasma view ensures accurate, robust quantification across a wide elemental range.

High Throughput and Rapid Analysis

This ICP-OES system is optimized for laboratories handling a large volume of samples, thanks to its capacity for high throughput and swift analysis-delivering results in as fast as 10 seconds per sample. The combination of advanced detector technology and automation significantly streamlines laboratory workflows.

User-Friendly and Low Maintenance Design

With tool-free torch and injector removal, intuitive SyngistixTM software, and built-in safety compliance, the Avio 550 Max is engineered for straightforward, reliable operation. Corrosion-resistant construction and sophisticated self-diagnostic features support long-term durability and minimal maintenance downtime.

FAQ's of PerkinElmer Avio 550 Max ICP-OES Concentric/Cyclonic Configuration:

Q: How does the Avio 550 Max ICP-OES achieve high sample throughput?

A: The Avio 550 Max utilizes a high-speed segmented-array CCD detector and efficient sample introduction system, allowing it to perform elemental analysis in as little as 10 seconds per sample. Its fully automatic operation and compatibility with autosamplers further enhance throughput in busy laboratory environments.

Q: What are the benefits of dual plasma view in this instrument?

A: The dual plasma view offers both radial and axial observation options. This flexibility enables optimized analysis: axial view provides higher sensitivity for trace elements, while radial view favors higher concentration and sample robustness. Users can switch or combine views to achieve the best results for any sample type.

Q: When is the Avio 550 Max ideal for use in the lab?

A: The instrument is suited for laboratories that require fast, precise, and simultaneous multi-element analysis-including environmental, food, pharmaceutical, mining, and petrochemical labs. Its broad detection range and low argon consumption also make it an excellent choice for routine and high-volume analysis tasks.

Q: Where can the Avio 550 Max be installed and used?

A: Designed for laboratory environments, the Avio 550 Max operates efficiently within 20%-80% (non-condensing) humidity and temperatures up to 40C. Its corrosion-resistant construction allows placement in labs handling diverse sample matrices across a range of industries.

Q: What is the maintenance process for the Avio 550 Max?

A: Routine maintenance is simplified by tool-free removal and replacement of the torch and injector. The system features corrosion-resistant components and is designed for quick start-up and minimal downtime. SyngistixTM software also provides maintenance prompts and diagnostics to guide users.

Q: How does the instrument ensure accuracy and ease of data analysis?

A: It offers sub-ppb detection limits and high precision (typical RSD < 1%) with advanced optical and detector systems. Data acquisition and analysis are managed through SyngistixTM software, which provides streamlined operation, real-time monitoring, and comprehensive data reporting.

Q: What advantages does the concentric/cyclonic sample introduction system provide?

A: The concentric nebulizer coupled with a cyclonic spray chamber ensures efficient sample aerosol generation and stable signal, contributing to better sensitivity, reproducibility, and reduced argon consumption, which is critical for accurate and cost-effective elemental analysis.
