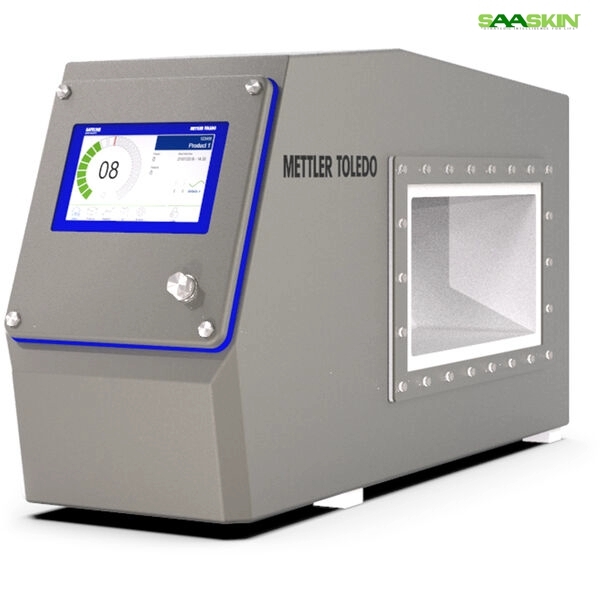

Mettler Toledo Metal Detector M31R

Get a Price/Quote

Product Details:

Feature Advanced Multi-Simultaneous Frequency Inspection, Precision Detection, Ease of Operation, Full Password Protection, HACCP and IFS compliant
Capacity Varies (dependent on product and application)
Accuracy High Sensitivity (up to 0.4 mm Fe, 0.6 mm Non-Fe under optimal conditions)
Power Source AC supply
Temperature Range 0C to 40C (Operating)
Voltage 100 240 V AC, 50/60 Hz
Frequency Multi-frequency (typically 50 1000 kHz)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Metal Detector M31R Price And Quantity

Mettler Toledo Metal Detector M31R Product Specifications

Type Industrial Metal Detector
Core Components Detector head, control panel, conveyor system
Measurement Range Program configurable, dependent on product/package size
Model No M31R
Automation Grade Automatic
Equipment Materials Stainless Steel (304/316)
Weight Approx. 65 kg (varies by configuration)
Temperature Range 0C to 40C (Operating)
Frequency Multi-frequency (typically 50 1000 kHz)
Voltage 100 240 V AC, 50/60 Hz
Feature Advanced Multi-Simultaneous Frequency Inspection, Precision Detection, Ease of Operation, Full Password Protection, HACCP and IFS compliant
Capacity Varies (dependent on product and application)
Accuracy High Sensitivity (up to 0.4 mm Fe, 0.6 mm Non-Fe under optimal conditions)
Dimension (L*W*H) 1100 mm x 630 mm x 1340 mm (typical, may vary)
Power Source AC supply
Display Type TFT Color Touchscreen
Usage Detecting ferrous, non-ferrous, and stainless steel contaminants in food and pharmaceutical products

Ingress Protection Rating IP65 (standard), IP69K available for washdown
Operating Humidity 0% to 90% (non-condensing)
Connectivity USB, Ethernet, optional fieldbus connectivity
Calibration Automatic (self-learning and manual)
Alarm System Audio/visual alarm; reject confirmation sensor
Product Memory Up to 200 product profiles
Reject System Integrated (air blast, pusher, or drop-flap available)
Belt Speed Up to 60 m/min (configurable)
Language Support Multi-language interface

Product Description

Brand Mettler Toledo

Model M31R

Capacity Up to 300 kHz

CAT No 3066721100

Application X-Ray Detection

Next generation industrial metal detector delivers high sensitivity with ease of use to deliver affordable quality control. Suitable for dry or wet product inspection.

High Precision Multi-Frequency Detection

Utilizing advanced multi-simultaneous frequency technology, the M31R provides high sensitivity for detecting even the smallest metal contaminants, including ferrous, non-ferrous, and stainless steel, ensuring compliance with stringent quality and safety regulations. This capability reduces the risk of product recalls and enhances consumer safety.

Versatile and User-Friendly Operation

The M31R features a TFT color touchscreen for intuitive control and supports a multi-language interface, making it accessible to diverse operators. With automatic self-learning calibration and up to 200 product memory profiles, the detector streamlines setup for quick product changeovers and consistent reliability.

Robust Construction and Hygienic Design

Constructed from durable stainless steel (304/316), the M31R withstands harsh industrial conditions. It is available with IP65 as standard and IP69K for washdown environments, making it perfect for use in demanding food processing and pharmaceutical settings that require rigorous cleaning protocols.

FAQ's of Mettler Toledo Metal Detector M31R:

Q: How does the Mettler Toledo M31R metal detector improve product safety?

A: The M31R uses advanced multi-frequency detection to identify and remove metallic contaminants such as ferrous, non-ferrous, and stainless steel from products, reducing the risk of contamination. Its integration with automatic reject systems ensures that compromised products are safely separated from the production line.

Q: What is the process for calibrating the M31R metal detector?

A: Calibration can be performed automatically using the self-learning feature or manually via the intuitive touchscreen interface. This ensures precise detection regardless of product type or packaging, maintaining consistent performance and minimal false rejects.

Q: When should the M31R be used in an industrial setting?

A: The M31R is ideal for installation at critical control points in food and pharmaceutical production lines, particularly where there is a need to ensure products are free from metallic contaminants to comply with HACCP and IFS standards.

Q: Where can the M31R be implemented within a production facility?

A: The M31R is versatile and suitable for use on conveyor lines in both food and pharmaceutical environments. Its robust IP65/IP69K construction makes it appropriate for dry areas or washdown zones, providing flexibility in installation.

Q: What are the connectivity options available on the M31R?

A: The detector includes USB and Ethernet interfaces as standard, with optional fieldbus connectivity. This allows seamless data integration, remote access, and efficient compliance reporting for quality management systems.

Q: How does the M31R handle different types or sizes of products?

A: With a product memory that stores up to 200 profiles, the M31R quickly adapts to various product types and packaging sizes by automatically recalling the optimal sensitivity and reject settings for each, minimizing setup time and ensuring reliable performance.

Q: What operational benefits does the M31R offer for production lines?

A: Key benefits include high sensitivity detection, fast product changeovers, automatic reject confirmation, audio/visual alarms, password protection, and easy multilingual operation. These features help maximize uptime, maintain product integrity, and streamline compliance with food safety standards.
