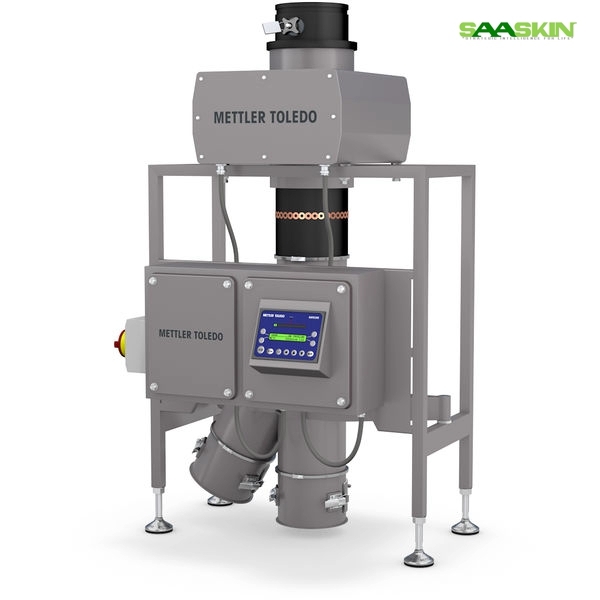

Mettler Toledo Gravity Fall Signature Metal Detector

Mettler Toledo Gravity Fall Signature Metal Detector

Get a Price/Quote

Product Details:

Feature High sensitivity, stable performance, auto-calibration, HACCP compliance
Voltage 230V AC / 50 Hz
Frequency Frequency selectable (typically 50 to 60 Hz)
Automation Grade Automatic
Model No Signature Gravity Fall
Core Components Detection coil, digital display unit, reject mechanism, stainless steel frame
Accuracy High accuracy with typical detection sensitivity up to 0.7 mm Fe, 1.0 mm non-Fe, 1.2 mm stainless steel
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Gravity Fall Signature Metal Detector Price And Quantity

Mettler Toledo Gravity Fall Signature Metal Detector Product Specifications

Model No Signature Gravity Fall
Usage Detection of ferrous, non-ferrous, and stainless steel contaminants in bulk powders and granules
Type Gravity Fall Metal Detector
Core Components Detection coil, digital display unit, reject mechanism, stainless steel frame
Voltage 230V AC / 50 Hz
Feature High sensitivity, stable performance, auto-calibration, HACCP compliance
Equipment Materials Stainless steel construction
Automation Grade Automatic
Frequency Frequency selectable (typically 50 to 60 Hz)
Measurement Range Detects metal contaminants from 0.7 mm ferrous and above
Display Type LCD digital display
Capacity Variable, suitable for high-throughput bulk and packaged products
Temperature Range 0C to 45C operating range
Weight Approx. 41 kg
Dimension (L*W*H) Approx. 500 mm x 400 mm x 1400 mm
Accuracy High accuracy with typical detection sensitivity up to 0.7 mm Fe, 1.0 mm non-Fe, 1.2 mm stainless steel
Power Source Electric

Data Interface RS232/RS485 communication
Software Features Digital signal processing, self-diagnostic functions
Product Memory Multiple product settings programmable
Ingress Protection IP65 rated for dust-tight and washdown environments
Reject System Integrated pneumatic reject flap
Environmental Conditions Suitable for food industry and pharmaceutical environments
Alarms Visual and audible alarms in case of detection
Conveyor Height Adjustment Available for customized integration
Compliance FDA, CE certified
Detection Method Electromagnetic signature processing
Calibration Automatic and manual calibration modes

Product Description

Brand Mettler Toledo

Model X3750

Capacity Up to 800 kHz

CAT No 2801547100

Application X-Ray Detection

Gravity fall metal detector controlled from a membrane style operator interface, for the inspection of powders and granular products.

High-Sensitivity Detection for Safety Assurance

Engineered for the reliable detection of metal contaminants, the Signature Gravity Fall Metal Detector delivers high accuracy with detection sensitivity as fine as 0.7 mm for ferrous materials. Designed to handle both bulk and packaged products, it supports HACCP compliance and ensures heightened food safety and quality assurance in manufacturing lines.

Designed for Easy Integration and Operation

The metal detector accommodates customized conveyor height adjustments and provides multiple programmable product settings, making it customizable and versatile. Its automatic pneumatic reject flap and intuitive digital interface enable seamless operation with minimal downtime, while self-diagnostic functions simplify maintenance tasks.

Built to Endure Demanding Environments

Constructed with robust stainless steel and protected by an IP65 rating, the Signature Gravity Fall Metal Detector withstands washdowns and harsh industrial environments. Its temperature operating range from 0C to 45C and self-calibration options make it suitable for various food and pharmaceutical production settings.

FAQ's of Mettler Toledo Gravity Fall Signature Metal Detector:

Q: How does the Mettler Toledo Gravity Fall Signature Metal Detector detect metal contaminants?

A: This metal detector uses electromagnetic signature processing, allowing it to identify the presence of ferrous, non-ferrous, and stainless steel particles in bulk powders and granules with high sensitivity and accuracy.

Q: What makes this metal detector suitable for food and pharmaceutical environments?

A: It features stainless steel construction, an IP65 rating for washdown and dust-tight protection, FDA and CE compliance, and advanced self-diagnostic and calibration functions, making it fit for stringent food and pharmaceutical production standards.

Q: When should calibration be performed on the Signature Gravity Fall Metal Detector?

A: Calibration can be performed using either automatic or manual modes, as required by quality assurance protocols. Routine calibration is recommended to maintain optimal sensitivity and reliability during ongoing operations.

Q: Where can the Signature Gravity Fall Metal Detector be integrated within a production line?

A: Thanks to its adjustable conveyor height and compact design, this detector can be integrated into various points of bulk material handling lines, ensuring comprehensive contaminant detection before further processing or packaging.

Q: What is the process after the detector finds a contaminant?

A: On detection, the integrated pneumatic reject flap is automatically activated to swiftly remove contaminated material from the product flow. Simultaneously, visual and audible alarms alert operators to ensure proper response.

Q: How can product data and detection events be tracked or communicated?

A: The system provides RS232/RS485 communication interfaces for seamless data exchange and event logging, facilitating integration with existing quality control and traceability systems.

Q: What are the user benefits of installing this metal detector?

A: Users benefit from high detection accuracy, stable performance, auto-calibration, easy maintenance, and assurance of regulatory compliance, resulting in enhanced product safety, reduced recall risks, and efficient bulk processing.
