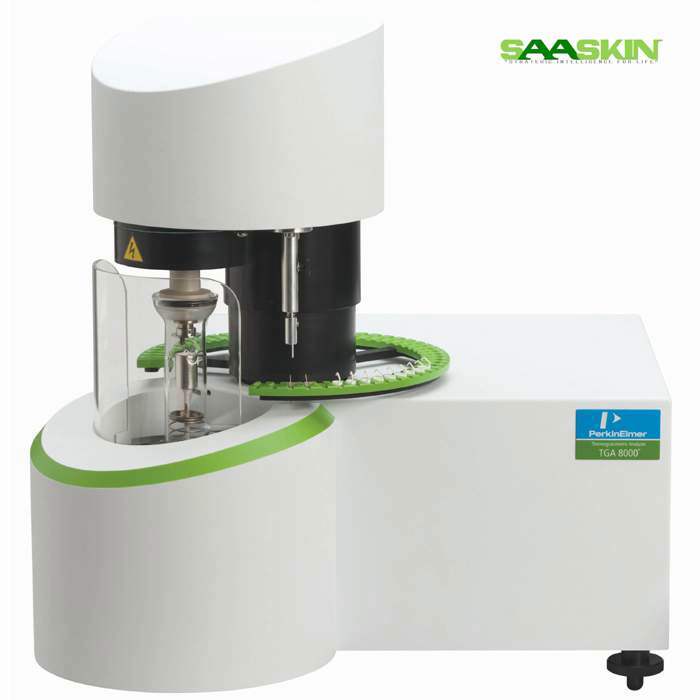

PerkinElmer TGA 8000

Get a Price/Quote

Product Details:

Measurement Range 0.1 mg to 1000 mg
Feature High sensitivity, automatic calibration, advanced gas control
Core Components Furnace, microbalance, control electronics
Temperature Range Up to 1000C
Model No TGA 8000
Voltage 220-240V
Power Source 220-240V AC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer TGA 8000 Price And Quantity

PerkinElmer TGA 8000 Product Specifications

Automation Grade Fully Automatic
Frequency 50/60 Hz
Capacity Up to 1 gram sample capacity
Accuracy 0.01% for mass measurement
Dimension (L*W*H) 57 cm x 54 cm x 42 cm
Feature High sensitivity, automatic calibration, advanced gas control
Weight Approx. 48 kg
Equipment Materials High-grade stainless steel and ceramic
Usage Laboratory analysis, thermal characterization
Measurement Range 0.1 mg to 1000 mg
Voltage 220-240V
Power Source 220-240V AC
Core Components Furnace, microbalance, control electronics
Temperature Range Up to 1000C
Display Type Digital LCD
Type Thermogravimetric Analyzer
Model No TGA 8000

Software Compatibility Pyris software suite
Balance Resolution 0.1 µg
Maximum Sample Throughput Single sample per run
Heating Rate 0.1°C/min to 100°C/min
Atmosphere Control Nitrogen, Oxygen, Argon, Air
Sample Holder Type Ceramic crucible
Operating Humidity 20% - 80% RH non-condensing
Cooling Type Forced air
Safety Features Automatic over-temperature protection, gas leak detection
Interface Ports USB, Ethernet
Purge Gas Flow Rate 0-200 mL/min

Product Description

Brand PerkinElmer

Model 8000

Capacity -20 C - 1200 C

CAT No N5320010

Application Thermal Analyzer

Our TGA 8000 Thermogravimetric analyzer gives you complete control over your sample environment and delivers high throughput and reliability, even unattended. Plus, advanced hyphenation technology works beautifully with FT-IR, MS, GC/MS, and other systems for better understanding of evolved gases.

High-Performance Thermal Analysis

Engineered for demanding laboratory environments, the TGA 8000 provides accurate mass measurements (0.01%) and a broad heating rate range from 0.1C/min to 100C/min. Its advanced microbalance and robust construction using high-grade stainless steel and ceramic enhance durability and data reliability for thermal decomposition, compositional, and thermal stability analysis.

Sophisticated Atmosphere and Gas Control

The TGA 8000 supports dynamic atmosphere control with automatic switching among nitrogen, oxygen, argon, and air. Up to 200 mL/min gas purge rates enable precise monitoring and manipulation of reaction environments, while forced air cooling and advanced leak detection ensure both operator and sample safety during operation.

User-Centric Design and Software Integration

Designed with laboratory convenience in mind, the TGA 8000 operates via digital LCD display and interfaces seamlessly with the Pyris software suite for comprehensive data recording and analysis. USB and Ethernet connectivity ensure straightforward data handling, while its compact design fits a variety of lab spaces.

FAQ's of PerkinElmer TGA 8000:

Q: How does the TGA 8000 maintain accuracy during thermal analysis?

A: The TGA 8000 utilizes a microbalance with 0.1 g resolution and offers automatic calibration. Its mass measurement accuracy (0.01%) ensures precise tracking of sample weight changes throughout temperature ramps up to 1000C.

Q: What types of samples and experiments are suitable for the TGA 8000?

A: The analyzer is ideal for thermal decomposition, compositional analysis, and studying the thermal stability of materials. It accommodates up to 1 gram samples in ceramic crucibles, making it suitable for polymers, pharmaceuticals, composites, and more.

Q: Which atmospheric and gas flow conditions can the system manage?

A: The TGA 8000 features atmosphere control for nitrogen, oxygen, argon, and air, with automated switching. Purge gas flow rates can be adjusted from 0 to 200 mL/min, allowing tailored experimental environments for diverse applications.

Q: When should the safety features of the TGA 8000 be activated or checked?

A: Automatic over-temperature protection and gas leak detection operate continuously to safeguard both the equipment and users. Regular maintenance checks and software notifications help ensure optimal function and laboratory safety.

Q: Where can the TGA 8000 be installed for optimal performance?

A: The analyzer is best installed in laboratory environments with stable ambient conditions (humidity 20-80% RH, non-condensing), and access to 220-240V AC power. A bench space fitting its dimensions (57 x 54 x 42 cm) is recommended to accommodate the unit securely with sufficient ventilation.

Q: What are the main benefits of using the TGA 8000 in a laboratory setting?

A: The system offers high sensitivity, rapid response, robust safety measures, and advanced gas and temperature control. Its fully automatic operations, digital LCD, and Pyris software integration streamline workflow and data analysis, maximizing laboratory efficiency and reliability.
