Metrohm 2060 IC Process Analyzer

Get a Price/Quote

Product Details:

Power Source Mains powered
Automation Grade Fully automated
Accuracy Trace ion analysis at sub-ppm concentrations
Voltage 100240 V AC
Capacity Simultaneous measurement of up to 3 sample streams
Feature Automated calibration, chemical suppression, remote monitoring, multi-stream analysis
Model No 2060 IC Process Analyzer
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metrohm 2060 IC Process Analyzer Price And Quantity

Sample Intake Online and offline sampling capability
Alarm Integrated system alarms for status and maintenance
Detection Technique Conductometric, amperometric, UV/VIS detectors supported
Data Output Digital and analog outputs for process control
Maintenance Interval Extended maintenance cycles (up to 6 months)
Ambient Humidity Max. 95% RH (non-condensing)
Software MagIC Net Process software included
Connectivity Ethernet, USB, and OPC protocols
Operating Modes Autosampler, multi-stream, sequential/gapless sampling
Sample Preparation Inline filtration, sample dilution, degassing, chemical suppression
Control Interface Integrated PLC platform (Siemens TIA Portal/Step 7)
Protection Class IP65

Metrohm 2060 IC Process Analyzer Product Specifications

Measurement Range ppb to % (depending on analyte, up to 7 orders of magnitude)
Temperature Range 5C to 40C
Core Components High-performance IC system, automated sample pretreatment units
Frequency 50-60 Hz
Weight Approx. 70 kg (depending on configuration)
Equipment Materials Corrosion resistant robust housing (IP65)
Usage Continuous, automated ion chromatography for industrial process monitoring
Dimension (L*W*H) 800 x 600 x 600 mm (approx.)
Type IC process analyzer
Model No 2060 IC Process Analyzer
Voltage 100240 V AC
Capacity Simultaneous measurement of up to 3 sample streams
Feature Automated calibration, chemical suppression, remote monitoring, multi-stream analysis
Display Type 10 industrial touchscreen display
Accuracy Trace ion analysis at sub-ppm concentrations
Automation Grade Fully automated
Power Source Mains powered

Sample Intake Online and offline sampling capability
Alarm Integrated system alarms for status and maintenance
Detection Technique Conductometric, amperometric, UV/VIS detectors supported
Data Output Digital and analog outputs for process control
Maintenance Interval Extended maintenance cycles (up to 6 months)
Ambient Humidity Max. 95% RH (non-condensing)
Software MagIC Net Process software included
Connectivity Ethernet, USB, and OPC protocols
Operating Modes Autosampler, multi-stream, sequential/gapless sampling
Sample Preparation Inline filtration, sample dilution, degassing, chemical suppression
Control Interface Integrated PLC platform (Siemens TIA Portal/Step 7)
Protection Class IP65

Product Description

Brand Metrohm

Model 2060

Capacity Multiple sample streams (1 to 20)

CAT No A402060011C

Application Chromatography

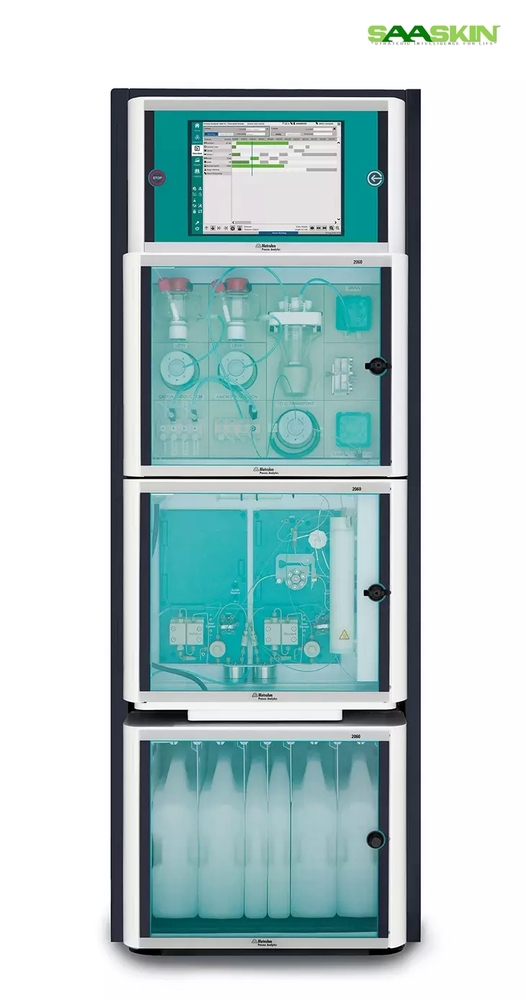

The 2060 Ion Chromatograph (IC) Process Analyzer from Metrohm Process Analytics is based on the modular 2060 platform concept. This modular architecture enables the separation of the cabinets in different locations around a plant and the connection to up to 20 sample streams for time-saving sequential analysis at multiple areas inside of a plant

Superior Automation and Integration

The analyzer features a fully automated platform supported by an integrated Siemens PLC (TIA Portal/Step 7) and comprehensive MagIC Net Process software. Automated calibration, remote monitoring, and gapless sequential or multi-stream sampling dramatically reduce manual effort while enhancing operational security and efficiency across diverse industrial environments.

Robust Design for Harsh Environments

Constructed with corrosion-resistant housing and rated to IP65, the 2060 IC Process Analyzer withstands demanding industrial conditions. Its 800 x 600 x 600 mm chassis supports a large 10-inch industrial touchscreen, while the system is capable of handling ambient humidities up to 95% (non-condensing) and operates reliably between 5C and 40C.

Versatile and High-Precision Analysis

Employing advanced detection technologies including conductometric, amperometric, and UV/VIS detectors, the analyzer enables trace-level measurement (sub-ppm) across a wide concentration spectrum (ppb to %). Capacity for up to three sample streams, autosampler modes, and inline sample prep (filtration, dilution, degassing) provide unmatched analytical flexibility.

FAQ's of Metrohm 2060 IC Process Analyzer:

Q: How does the Metrohm 2060 IC Process Analyzer support process automation?

A: The 2060 IC Analyzer integrates a Siemens PLC using TIA Portal/Step 7 and is managed via MagIC Net Process software, enabling automated calibration, sequencing, remote monitoring, and chemical suppression routines. These features ensure seamless continuous analysis with minimal operator intervention.

Q: What sample types and environments can be analyzed with this system?

A: The analyzer is designed for both online and offline sample analysis, accommodating a variety of industrial process streams. Its corrosion-resistant, IP65-rated enclosure and wide temperature/humidity tolerance make it suitable for harsh manufacturing environments.

Q: When should maintenance be performed on the 2060 IC Process Analyzer?

A: The system offers extended maintenance intervals, allowing for up to six months of continuous operation before routine servicing is required. Integrated system alarms will notify users of status and necessary maintenance, minimizing unscheduled downtime.

Q: Where can data from the analyzer be accessed or integrated within a facility?

A: Data outputs include both digital and analog signals, and connectivity is provided via Ethernet, USB, and OPC protocols. This ensures easy integration with plant control systems and remote workstations for comprehensive process oversight.

Q: What is the process for sample preparation in this analyzer?

A: Automated sample pretreatment units handle inline filtration, dilution, degassing, and chemical suppression, preparing samples for high-accuracy ion chromatography with minimal manual steps required, thus optimizing analytical consistency.

Q: How does the analyzer improve workflow efficiency and measurement reliability?

A: By supporting multi-stream, autosampler, and sequential/gapless sampling modes, the 2060 IC minimizes manual sampling steps, allows simultaneous measurement of up to three streams, and ensures highly reproducible trace-level analysis across extended operational periods.

Q: What are the primary benefits of using the Metrohm 2060 IC Process Analyzer in industrial applications?

A: Users benefit from high analytical precision over broad concentration ranges, low maintenance requirements, robust construction, versatile connectivity, and full automation-delivering reliable, real-time process monitoring for enhanced product quality and operational efficiency.
