Agilent Technologies 6530 Q-TOF LC Mass Spectrometer Agilent Technologies 6530 Q-TOF LC Mass Spectrometer Agilent Technologies 6530 Q-TOF LC Mass Spectrometer

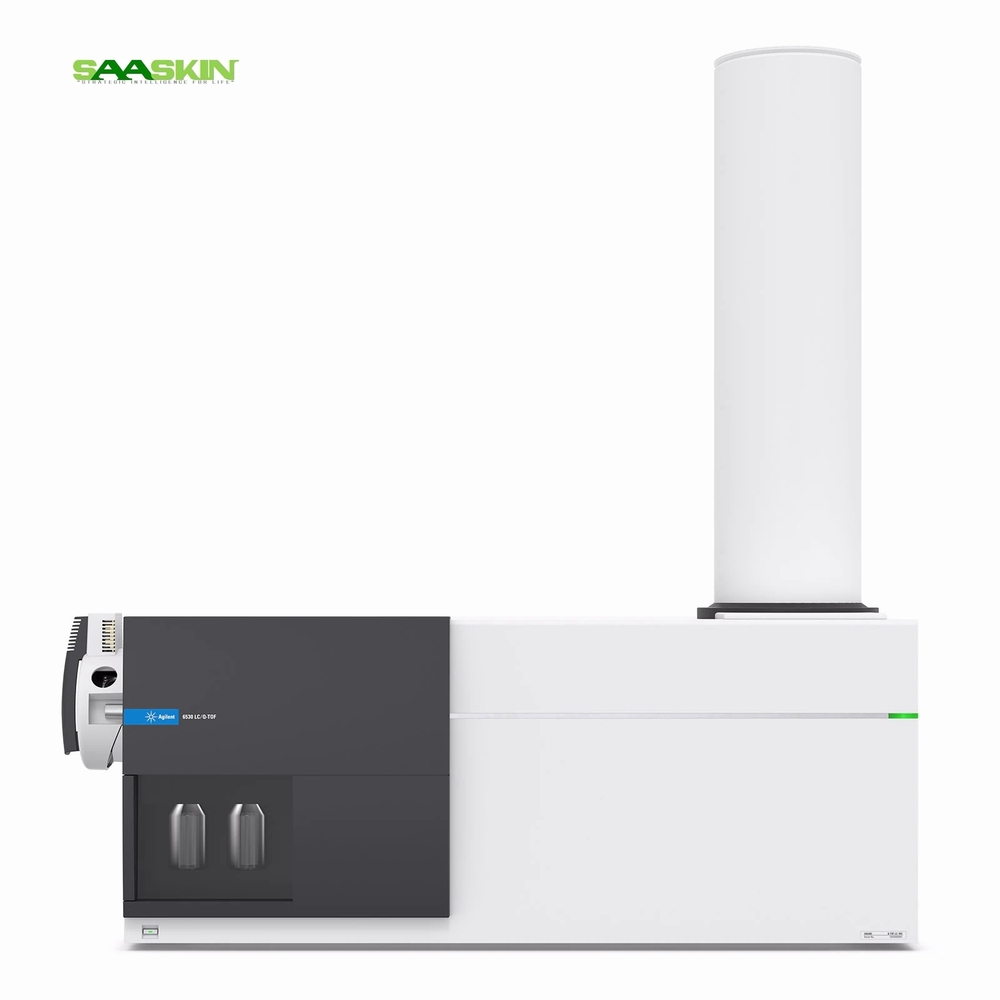

Agilent Technologies 6530 Q-TOF LC Mass Spectrometer
Agilent Technologies 6530 Q-TOF LC Mass Spectrometer Agilent Technologies 6530 Q-TOF LC Mass Spectrometer

Agilent Technologies 6530 Q-TOF LC Mass Spectrometer

Get a Price/Quote

Product Details:

  • Accuracy Mass accuracy < 2 ppm with reference mass correction
  • Model No 6530 Q-TOF LC/MS
  • Automation Grade Fully automated with acquisition and data analysis software
  • Temperature Range Ambient to 40C (operation)
  • Measurement Range 1040,000 m/z
  • Frequency 50/60 Hz
  • Feature High resolution, accurate mass, extended dynamic range, fast MS/MS acquisition
  • Click to View more
Request to Call Back Send Inquiry
X

Agilent Technologies 6530 Q-TOF LC Mass Spectrometer Price And Quantity

Agilent Technologies 6530 Q-TOF LC Mass Spectrometer Product Specifications

  • Stainless steel, aluminum, corrosion-resistant polymers
  • Up to 40,000 m/z (mass range), 600 samples per batch (typical LC)
  • High resolution, accurate mass, extended dynamic range, fast MS/MS acquisition
  • 50/60 Hz
  • 111 x 60 x 71 cm (43.7 x 23.6 x 27.9 in)
  • 1040,000 m/z
  • Ambient to 40C (operation)
  • Qualitative and quantitative analysis in pharma, proteomics, environmental, research labs
  • Fully automated with acquisition and data analysis software
  • 6530 Q-TOF LC/MS
  • Mass accuracy < 2 ppm with reference mass correction
  • Approx. 200 kg (instrument only)
  • Software controlled, graphical user interface on computer workstation
  • AC Mains
  • Mass analyzer, vacuum system, detector, ESI/APCI ion source, LC interface
  • Quadrupole Time-of-Flight (Q-TOF) LC/MS System
  • 100-240 VAC
  • < 65 dB(A) at 1 m distance (typical)
  • MassHunter Data Acquisition/Analysis, compliance-ready
  • LAN, USB
  • CE, RoHS, cTUVus
  • Dual-stage, oil-free pumping system
  • ESI (Electrospray Ionization), APCI (Atmospheric Pressure Chemical Ionization)
  • >20,000 FWHM
  • Agilent Jet Stream or standard ESI/APCI source
  • < 10 fg reserpine on column
  • 045C, <85% RH (non-condensing)
  • Up to 50 spectra/sec

Product Description

Brand                        Agilent Technologies

Model                       Quadrupole

Capacity                   m/z 20-20,000

CAT No                     G6530CA

Application              Spectroscopy

Raise your analysis to a new level with the Agilent 6530 Q-TOF mass spectrometer. Full MS spectra followed by MS/MS or All Ions acquisition make this instrument suitable for applications in the pharmaceutical industry as well as life sciences and governmental agencies. Accurate mass spectrometry enables you to gain more confidence in your analysis compared to unit resolution instrumentation.




Superior Resolution and Sensitivity

With advanced quadrupole time-of-flight technology, the Agilent 6530 Q-TOF LC/MS provides a resolution greater than 20,000 FWHM and exceptional sensitivity (<10 fg reserpine on column). This performance is ideal for detecting trace compounds and complex mixtures, enabling detailed molecular characterization and accurate quantification, even in challenging analytical scenarios.


Versatile Ionization and Mass Range

Supporting both ESI and APCI ionization modes, this instrument offers versatility across a broad spectrum of analytes. The extensive mass range (10-40,000 m/z) makes it suitable for analyzing small molecules, peptides, proteins, and polymers, accommodating diverse research and quality control requirements in a single platform.


User-Friendly Automation and Software

The Agilent 6530 system is fully automated, integrating MassHunter software for streamlined acquisition, analysis, and compliance-ready data management. The user interface is software-controlled on a workstation, supporting batch processing (up to 600 samples), real-time monitoring, and customizable reporting. This enhances productivity and ensures reliable operation for high-throughput laboratories.

FAQ's of Agilent Technologies 6530 Q-TOF LC Mass Spectrometer:


Q: How does the Agilent 6530 Q-TOF ensure high mass accuracy during analysis?

A: The Agilent 6530 Q-TOF LC/MS achieves mass accuracy of less than 2 ppm using reference mass correction. This feature calibrates the mass axis in real time, ensuring precise identification and quantitation of analytes throughout the entire analysis.

Q: What sample types and ionization modes are compatible with this mass spectrometer?

A: The instrument supports both Electrospray Ionization (ESI) and Atmospheric Pressure Chemical Ionization (APCI), making it suitable for a wide variety of sample types including small molecules, biomolecules, peptides, proteins, and polymers in both pharmaceutical and environmental applications.

Q: When should the system be used for high-throughput or fast analysis?

A: With a data acquisition rate of up to 50 spectra per second and a batch capability of up to 600 samples, the Agilent 6530 Q-TOF is ideal for high-throughput laboratories and studies requiring rapid or automated sample analysis, such as large-scale proteomics and drug discovery projects.

Q: Where can the Agilent 6530 Q-TOF LC/MS be installed, and what are its storage requirements?

A: The system is designed for laboratories and research facilities, with operational temperatures from ambient to 40C and storage from 0-45C at less than 85% relative humidity (non-condensing). Its compact design and noise level below 65 dB(A) ensure compatibility with standard analytical lab environments.

Q: What is the process for controlling and analyzing data with this instrument?

A: Control and data analysis are managed through the MassHunter software suite on a connected workstation via LAN or USB interface. This platform offers graphical user control, automated acquisition, real-time monitoring, and comprehensive tools for data processing and regulatory compliance.

Q: How does the Q-TOF system benefit researchers in pharmaceutical and proteomics fields?

A: Researchers benefit from the instrument's high resolution, sensitivity, and accurate mass capabilities, allowing for the confident identification, quantification, and characterization of trace components in complex matrices. Automation and robust data analysis accelerate workflows and improve reproducibility.
