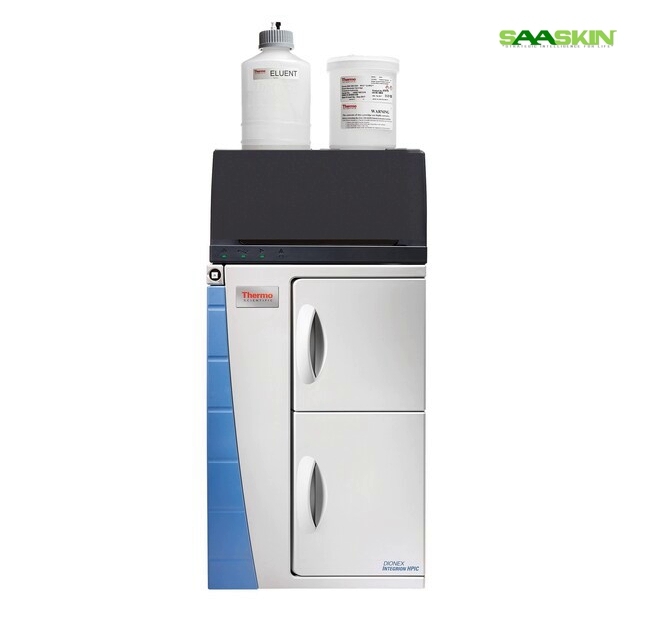

Thermo Scientific Dionex Integrion HPIC System

Thermo Scientific Dionex Integrion HPIC System

Get a Price/Quote

Product Details:

Voltage 100240 V AC
Feature High pressure capability (up to 5000 psi), integrated eluent generation, modular design, and ease of use interface
Measurement Range Up to fourteen decades of dynamic range for anions and cations
Temperature Range Ambient to 60C (column compartment)
Capacity Dual-channel configuration (supports up to two pump and detector modules)
Accuracy High analytical accuracy with low detection limits (sub-ppb)
Model No Dionex Integrion HPIC System
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Dionex Integrion HPIC System Price And Quantity

Thermo Scientific Dionex Integrion HPIC System Product Specifications

Type High-Performance Ion Chromatography System (HPIC)
Weight Approximately 40 kg (system configuration dependent)
Frequency 50/60 Hz
Display Type Graphical touchscreen LCD display
Core Components Pump, Detector, Eluent Generator, Column Oven, Autosampler (optional)
Power Source AC electrical
Model No Dionex Integrion HPIC System
Dimension (L*W*H) 45 cm 50 cm 50 cm (approximate system size)
Automation Grade Fully Automated
Usage Laboratory ion analysis, trace-level detection, water, food, pharmaceutical, and environmental applications
Feature High pressure capability (up to 5000 psi), integrated eluent generation, modular design, and ease of use interface
Measurement Range Up to fourteen decades of dynamic range for anions and cations
Temperature Range Ambient to 60C (column compartment)
Capacity Dual-channel configuration (supports up to two pump and detector modules)
Accuracy High analytical accuracy with low detection limits (sub-ppb)
Equipment Materials Corrosion-resistant polymeric flow path materials
Voltage 100240 V AC

System Control Software Chromeleon Chromatography Data System (CDS)
Detector Options Integrated conductivity, suppressed and non-suppressed detectors, UV/Vis (optional)
Eluent Generation Supports electrolytic eluent generation
Data Connectivity Ethernet and USB interfaces for data transfer and control
Sample Throughput Automated high-throughput (autosampler capacity up to 120 vials, optional)
Pump Pressure Limit Up to 5000 psi (34.5 MPa)
Noise <0.002 µS/cm (conductivity detector)
Injection Volume Variable; programmable by user
Baseline Drift <0.005 µS/cm/h (conductivity detector)

Product Description

Brand Thermo Fisher Scientific

Model Dionex

Capacity 0.000 to 10.000 mL/min.

CAT No 22153-60305

Application Chromatography

Meet your routine ion analysis demands using the easy-to-use and reliable Thermo Scientific Dionex Integrion HPIC system. This system performs versatile and efficient analyses through comprehensive application solutions and interactive wellness features. The Dionex Integrion system's flexible detector configurations meet your analysis needs for today and tomorrow. Its high-pressure capabilities enable faster analysis without compromising data quality. Use the system's automated eluent generation (EG) to eliminate error-prone manual eluent preparation and achieve better method reproducibility.

Advanced Performance and Versatility

This HPIC system boasts a high-pressure capability of up to 5000 psi and configurable modules to suit a range of chromatographic needs. Integrated eluent generation and optional dual-channel support enable faster workflows and simultaneous analyses, greatly enhancing productivity in diverse laboratory environments.

Superior Detection and Automation

With integrated conductivity detection (noise <0.002 S/cm), optional UV/Vis detection, and programmable injection volumes, the Dionex Integrion HPIC provides exceptional sensitivity and accuracy. The optional autosampler accommodates up to 120 vials, supporting high-throughput operations and reducing manual intervention.

User-Friendly Interface and Data Connectivity

A graphical touchscreen LCD display allows easy system navigation and method setup. Data management and control are streamlined via Chromeleon CDS, with Ethernet and USB interfaces ensuring seamless connectivity for data transfer and remote management, making it adaptable for modern laboratory workflows.

FAQ's of Thermo Scientific Dionex Integrion HPIC System:

Q: How does the Dionex Integrion HPIC System automate high-throughput sample analysis?

A: The system can be equipped with an optional autosampler that holds up to 120 vials, allowing for automated, sequential sample injection. This increases sample throughput and reduces operator workload, making it ideal for laboratories requiring analysis of large sample batches.

Q: What types of detectors are available with the Dionex Integrion HPIC System?

A: The system features integrated conductivity detection-both suppressed and non-suppressed-offering excellent sensitivity. Additionally, an optional UV/Vis detector can be integrated for broader application versatility across a wide range of analytes.

Q: When is electrolytic eluent generation beneficial in ion chromatography?

A: Electrolytic eluent generation is particularly advantageous for trace-level analysis or when precise reproducibility is required, as it delivers high-purity eluents on demand and reduces variability associated with manual eluent preparation.

Q: Where can the Dionex Integrion HPIC System be used effectively?

A: This HPIC system is designed for laboratory settings, especially in water, food, pharmaceutical, and environmental testing labs where accurate ion quantification and trace detection are essential.

Q: What is the measurement range for ions using this HPIC system?

A: The Dionex Integrion HPIC System can measure concentrations spanning up to fourteen decades of dynamic range for both anions and cations, supporting trace-level as well as high-concentration analyses.

Q: How does the modular design of the Dionex Integrion HPIC benefit users?

A: The modular design allows users to configure the system with up to two pump and detector modules, enabling dual-channel operation or the integration of additional detection methods. This flexibility supports a wider range of applications and future expansion.

Q: What are the main benefits of using Chromeleon Chromatography Data System (CDS) software with this instrument?

A: Chromeleon CDS software enhances user experience through intuitive system control, method development, and comprehensive data processing. It streamlines routine workflows, supports regulatory compliance, and provides robust data analysis and reporting features.
