Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package
Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package
Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package

Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package

Get a Price/Quote

Product Details:

  • Classification High-Content Analysis Package
  • Dimension (L*W*H) 730 560 550 mm
  • Usage Fluorescence and brightfield cell imaging and high-content analysis
  • Capacity Compatible with microplates (up to 384-well), slides, and flasks
  • Weight Approximately 55 kg
  • Application Life Science Research, Cell Biology, Drug Discovery, High-Content Screening
  • Product Type Imaging System
  • Click to View more
Request to Call Back Send Inquiry
X

Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package Price And Quantity

Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package Product Specifications

  • Fluorescence and brightfield cell imaging and high-content analysis
  • 730 560 550 mm
  • High-Content Analysis Package
  • Imaging System
  • White / Grey
  • Approximately 55 kg
  • Life Science Research, Cell Biology, Drug Discovery, High-Content Screening
  • Compatible with microplates (up to 384-well), slides, and flasks
  • High-grade laboratory materials, metal/plastic composite
  • Touchscreen and PC software control
  • 100240 VAC, 50/60 Hz
  • 250 W (typical)
  • Automated high-precision XYZ stage with positional repeatability
  • Solid-state LED, multichannel (DAPI, GFP, RFP, and Cy5
  • Onboard laser- and image-based autofocus systems
  • Accepts 1.25X to 100X objectives (air/oil); automated objective turret (up to 5 positions)
  • Compatible with onstage incubation for temperature, CO2, and humidity regulation
  • Supports external storage/USB connectivity and network integration
  • CE, UL, CSA, RoHS compliant
  • Optimized for high-content, multiwell plate imaging and batch processing
  • High-sensitivity, high-resolution scientific CMOS camera
  • EVOS Imaging System software for acquisition, analysis, and live-cell imaging workflows
  • Fluorescence, transmitted light (brightfield), colorimetric, phase contrast
  • Integrated 22-inch touchscreen monitor

Product Description

Brand                 Thermo Fisher Scientific

Model                  EVOS M7000

Capacity             3.2MP, Monochrome, CMOS

CAT No               AMF7000HCA

Application         Microscopy

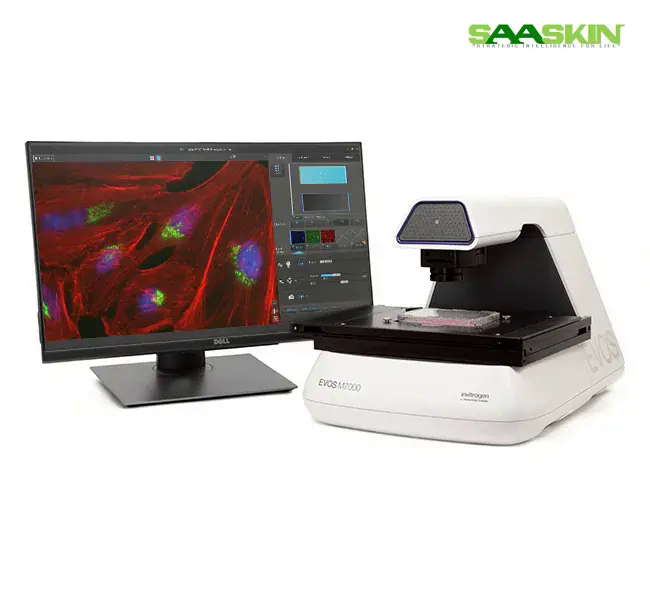

The EVOS M7000 Imaging System, High-Content Analysis Package, combines the fully automated, inverted, multi-channel fluorescence and transmitted light imaging system with Celleste 6.0 Image Analysis Software, a full-featured image analysis suite with protocols optimized to deliver the most relevant data for a range of popular live and fixed cell-based assays. The EVOS M7000 system was developed to meet todayas expectations for publication-quality images and data with just a few clicks using its powerful and time-saving acquisition tools with enhanced autofocus algorithms and automated routines for microwell plate assays, time-lapse live cell imaging, area scanning in time lapse mode, and Z-stacks in scan mode.



High-Resolution Multimode Imaging

The EVOS M7000 Imaging System integrates fluorescence, transmitted light, colorimetric, and phase contrast imaging modes to accommodate diverse cell imaging requirements. Its high-sensitivity scientific CMOS camera ensures the capture of detailed, publication-quality images, while the solid-state LED light source guarantees stable multichannel illumination for a wide range of fluorophores.


Automated Precision and Throughput

Designed for efficiency, the system's automated XYZ stage and objective turret (up to 5 positions, 1.25X-100X, air/oil) streamline high-content screening on microplates, slides, and flasks. The onboard laser and image-based autofocus systems offer reliable, hands-off operation, optimizing batch processing and repeatability for demanding workflows.


User-Friendly Controls and Integration

Featuring a spacious 22-inch touchscreen and EVOS Imaging System software, users gain intuitive control over imaging, analysis, and live-cell experiments. The system enables data export via USB and network, with optional environmental controls supporting live-cell assays. CE, UL, CSA, and RoHS certifications offer confidence in safety and compliance.

FAQ's of Thermo Fisher Scientific EVOS M7000 Imaging System, High-Content Analysis Package:


Q: How does the EVOS M7000 Imaging System support high-throughput experiments?

A: The system features an automated XYZ stage with precise positional repeatability, enabling seamless batch imaging of microplates (up to 384 wells), slides, and flasks. This automation, combined with optimized software, streamlines high-content screening, making it ideal for multiwell assays and large-scale data collection.

Q: What imaging modes are available on the EVOS M7000, and what applications are they suited for?

A: This system supports fluorescence, transmitted light (brightfield), colorimetric, and phase contrast imaging. These modes are highly suited for applications in life science research, such as cellular imaging, drug discovery, and high-content screening workflows.

Q: When would I use the onboard autofocus features?

A: You would use the laser- and image-based autofocus systems when imaging high-content, multiwell plates, or conducting time-lapse experiments to ensure crisp, consistent focus across multiple samples and throughout extended imaging sessions, reducing manual intervention.

Q: Where can data acquired by the imaging system be exported or stored?

A: Data can be exported to external storage devices via USB connectivity, or transferred over network integration. This enables easy sharing, backup, and integration into laboratory data management systems for further analysis and reporting.

Q: What is the process for switching objectives on the EVOS M7000?

A: The system includes an automated objective turret with up to five positions, compatible with air and oil objectives from 1.25X to 100X. Switching objectives is fully automated and managed via the touchscreen or accompanying PC software, ensuring smooth transitions between magnifications.

Q: How does environmental control benefit live-cell imaging experiments?

A: Compatible onstage incubation options allow precise regulation of temperature, CO2, and humidity, creating a stable environment for live-cell imaging, time-lapse studies, and experiments requiring physiological conditions-thereby improving the reliability and relevance of dynamic cellular observations.

Q: What safety certifications does the EVOS M7000 Imaging System have?

A: The EVOS M7000 is compliant with CE, UL, CSA, and RoHS standards, ensuring it adheres to rigorous safety, quality, and environmental guidelines suitable for laboratory use globally.
