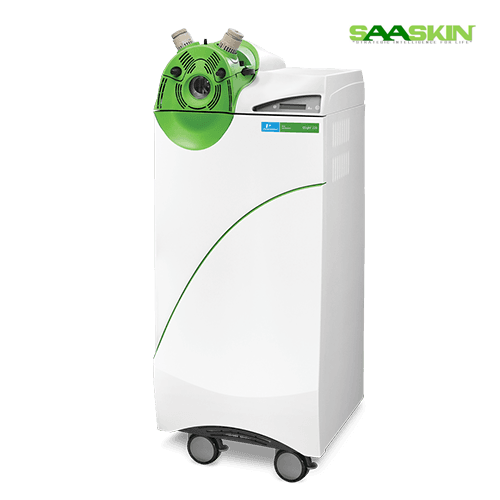

PerkinElmer QSight 220 LC/MS/MS System

Get a Price/Quote

Product Details:

Model No QSight 220
Measurement Range Low ppt to high ppm
Power Source AC mains
Temperature Range Ambient to 40C
Accuracy < 1% RSD
Automation Grade Fully Automated
Feature Simultaneous multi-analyte detection, high sensitivity
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer QSight 220 LC/MS/MS System Price And Quantity

PerkinElmer QSight 220 LC/MS/MS System Product Specifications

Core Components Dual source, vacuum system, ion optics, detector
Type LC/MS/MS System
Voltage 230 V AC
Display Type LCD touchscreen
Capacity Up to 500 samples/day
Automation Grade Fully Automated
Feature Simultaneous multi-analyte detection, high sensitivity
Usage Laboratory analytical instrument
Frequency 50/60 Hz
Measurement Range Low ppt to high ppm
Equipment Materials Stainless steel, polymer
Model No QSight 220
Power Source AC mains
Temperature Range Ambient to 40C
Accuracy < 1% RSD
Weight Approx. 140 kg
Dimension (L*W*H) 113 cm x 65 cm x 66 cm

Detector Type Electron multiplier
Ionization Modes Electrospray (ESI), Atmospheric Pressure Chemical Ionization (APCI)
Maintenance Tool-free maintenance design
Sensitivity Up to 0.1 ppt
User Interface Touchscreen with intuitive controls
Noise Level < 60 dB
Data Acquisition Multi-channel
Mass Range 101250 amu
Connectivity USB, Ethernet
Sample Introduction Integrated liquid chromatography
Software QSight Software Suite

Product Description

Brand PerkinElmer

Model QSight 220

Capacity Patented flow-based technology

CAT No BC003382

Application Chromatography

With the PerkinElmer QSight Triple Quad LC/MS/MS labs can test for the most challenging samples with maximized uptime and confidence. The unique dual-source configuration enables high-throughput labs to collect data in two complementary modes, maximizing the output from a single injection. Combined with the StayClean technology dramatically reduced source cleaning and maintenance, translating into higher productivity and high ROI. Running on the PerkinElmer Simplicity 3Q Software, the PerkinElmer QSight Triple Quad LC/MS/MS is easy-to-learn and use and it is a complete solution streamlining the complete workflow, from validated method development to data reporting.

Dual Ionization Flexibility

The QSight 220 supports both Electrospray (ESI) and Atmospheric Pressure Chemical Ionization (APCI), ensuring versatility in analyzing a broad range of compounds. This flexibility enables laboratories to switch methods quickly, optimizing sensitivity for various sample types and meeting complex analysis requirements efficiently.

Integrated Chromatography for High Throughput

With integrated liquid chromatography and a multi-channel data acquisition system, the QSight 220 can process up to 500 samples per day. The fully automated sample introduction and user-friendly software minimize operator intervention, boosting laboratory productivity and ensuring consistent, reproducible results.

User-Centric Design and Connectivity

Designed for ease-of-use, the system features a large LCD touchscreen with intuitive controls, a tool-free maintenance structure, and low operational noise. Modern connectivity options such as USB and Ethernet facilitate seamless data management and system integration, making it suitable for various laboratory settings in India.

FAQ's of PerkinElmer QSight 220 LC/MS/MS System:

Q: How does the QSight 220 LC/MS/MS System handle multiple analytes simultaneously?

A: The QSight 220 utilizes advanced multi-channel data acquisition and dual ionization modes, allowing simultaneous detection and quantification of multiple analytes within a single analytical run. This capability increases throughput and provides comprehensive results for complex samples.

Q: What are the benefits of the tool-free maintenance design?

A: The tool-free maintenance design simplifies routine upkeep and reduces downtime, ensuring the system remains operational with minimal technical intervention. This feature helps laboratories maintain optimal performance and cost-effective operation.

Q: When should you select between Electrospray (ESI) and APCI ionization modes?

A: Electrospray ionization (ESI) is recommended for analyzing polar, thermally labile compounds or biomolecules, while Atmospheric Pressure Chemical Ionization (APCI) is ideal for less polar, stable, and volatile analytes. The system allows easy switching based on application needs.

Q: Where can the QSight 220 be used effectively?

A: The QSight 220 LC/MS/MS System is suitable for pharmaceutical, environmental, food safety, and chemical laboratories across India requiring high-sensitivity, high-throughput analytical instrumentation for routine and advanced analyses.

Q: What is the measurement range and sensitivity of the QSight 220?

A: The instrument supports a measurement range from low parts per trillion (ppt) to high parts per million (ppm), with a sensitivity down to 0.1 ppt, ensuring detection of trace analytes even in complex matrices.

Q: How does the QSight Software Suite enhance user experience?

A: The QSight Software Suite offers intuitive touchscreen controls, streamlined workflow management, real-time data processing, and easy connectivity for rapid method setup and efficient data handling, supporting both novice and experienced users.
