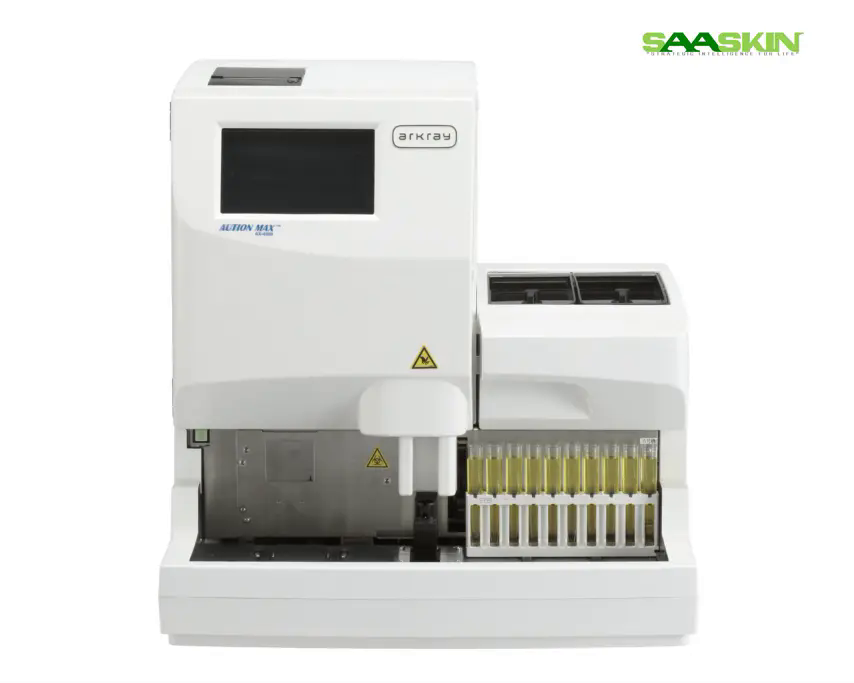

Arkray Fully Automated Urine Analyzer AUTION MAX AX-4060

Arkray Fully Automated Urine Analyzer AUTION MAX AX-4060

Get a Price/Quote

Product Details:

Material Standard Medical Grade Components
Storage Instructions Store in Cool, Dry Place
Power AC Powered
Condition New
Technology Dry Chemistry, Reflective Photometry
Attributes High Throughput, Touchscreen Interface
Lighting Type LED for Photometric Reading
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Arkray Fully Automated Urine Analyzer AUTION MAX AX-4060 Price And Quantity

Sample Throughput Up to 225 tests/hour (Max 240 tests/hour with STAT function)
Model AUTION MAX AX-4060
Interface Color Touchscreen LCD, USB, RS232C
Data Storage Capacity Up to 10,000 patient results
Reaction Time Flexible (based on application)
Operating Humidity Range 30%85% RH (non-condensing)
Barcode Reader Optional
Test Principle Reflective Photometry & Electrochemical Measurement
No. of Test Parameters Up to 11 tests per strip
Specimen Type Urine
Display Large Color Touch Panel
Sampling Method Automatic aspiration
Operating Temperature Range 15C to 30C
Sample Loading 100 samples continuous loading, STAT processing supported
Maintenance Self-cleaning and Calibration System
Connectivity LIS/HIS Compatible
Printer Output Built-in Thermal Printer

Arkray Fully Automated Urine Analyzer AUTION MAX AX-4060 Product Specifications

Wall Mounted No
Equipment Type Fully Automated Urine Analyzer
Function Urine Chemistry Analysis
Power Consumption Approx. 300 VA
Portable No
Feature STAT Mode, Sample ID Recognition, Barcode Reader Option
Shape Rectangular
Set Contains Main Analyzer, Accessories, User Manual
Capacity Up to 240 samples/hour
Real-Time Operation Yes
Suitable For Use Clinical Laboratories, Hospitals
Use Urinalysis, Diagnostic
Operating Type Automatic
Size Standard Bench-top
Accuracy High Accuracy, Reliable Results
Application Automated Urine Analysis in Laboratories
Operation Mode Fully Automated
Storage Instructions Store in Cool, Dry Place
Material Standard Medical Grade Components
Power AC Powered
Lighting Type LED for Photometric Reading
Technology Dry Chemistry, Reflective Photometry
Condition New
Attributes High Throughput, Touchscreen Interface
Dimension (L*W*H) 520 520 420 mm
Color White
Voltage AC 100-240V, 50/60Hz
Noise Level Low

Sample Throughput Up to 225 tests/hour (Max 240 tests/hour with STAT function)
Model AUTION MAX AX-4060
Interface Color Touchscreen LCD, USB, RS232C
Data Storage Capacity Up to 10,000 patient results
Reaction Time Flexible (based on application)
Operating Humidity Range 30%85% RH (non-condensing)
Barcode Reader Optional
Test Principle Reflective Photometry & Electrochemical Measurement
No. of Test Parameters Up to 11 tests per strip
Specimen Type Urine
Display Large Color Touch Panel
Sampling Method Automatic aspiration
Operating Temperature Range 15C to 30C
Sample Loading 100 samples continuous loading, STAT processing supported
Maintenance Self-cleaning and Calibration System
Connectivity LIS/HIS Compatible
Printer Output Built-in Thermal Printer

Product Description

Brand

Arkray

Model AX-4060

Capacity 1 nos

CAT No AX-4060

Application Urinalysis

Color Touch Panel for good usability 7 inch WVGA color touchscreen with high operability displays measurement results, instrument conditions and operating instructions. As the sample is drawn through the nozzle and delivered correctly and quantitatively to each pad of the strip, the micro volume samples (minimum 1mL) can be measured easily. No cross contaminations are found on the reagent portions despite high sample volume.

Advanced Automated Urinalysis

The AUTION MAX AX-4060 streamlines the urine analysis process, maximizing laboratory productivity with minimal operator intervention. The system's automatic sample aspiration, continuous sample loading, and STAT mode ensure efficient workflows, making it suitable for clinics and high-volume labs. Integrated with a user-friendly color touchscreen panel, the analyzer allows for easy operation, sample identification, and quick access to results, delivering rapid throughput and reliable diagnostics every time.

Comprehensive Features and Connectivity

Equipped with a built-in thermal printer, optional barcode reader, and compatibility with laboratory information systems (LIS/HIS), the analyzer ensures smooth data management and traceability. Its flexible reaction time, large patient data storage (up to 10,000 results), and versatile interface options (USB, RS232C) make it highly adaptable for modern laboratory environments. Automatic self-cleaning and calibration systems minimize maintenance, further supporting uninterrupted daily operations.

FAQ's of Arkray Fully Automated Urine Analyzer AUTION MAX AX-4060:

Q: How does the AUTION MAX AX-4060 urine analyzer ensure accurate results?

A: The analyzer employs advanced reflective photometry and electrochemical measurement technologies to provide high accuracy for up to 11 test parameters per strip. Automatic calibration and self-cleaning further ensure consistent and reliable performance.

Q: What type of samples and test parameters can be processed with this analyzer?

A: The AUTION MAX AX-4060 is designed for urine specimens and can analyze up to 11 different parameters per test strip, making it suitable for a comprehensive range of urinalysis needs in diagnostics.

Q: When should the STAT mode be used, and how does it benefit laboratories?

A: STAT mode enables prioritized urgent sample testing, increasing the throughput up to 240 tests per hour. This function is invaluable in critical situations where rapid diagnostic results are essential.

Q: Where is the AUTION MAX AX-4060 best utilized?

A: This analyzer is ideal for use in clinical laboratories, hospital diagnostic centers, and any facility requiring high-throughput, automated urine chemistry analysis with minimal manual intervention.

Q: What is the process for loading and analyzing samples?

A: The system allows continuous loading of up to 100 urine samples, with automatic aspiration for analysis. Each sample is processed based on the selected application, ensuring flexibility and efficiency in testing workflows.

Q: How are patient results managed and stored?

A: The AUTION MAX AX-4060 can store up to 10,000 patient results. Data can be accessed via the color touchscreen, printed on the built-in thermal printer, and exported through USB or RS232C interfaces. It is also compatible with LIS/HIS for secure record management.

Q: What maintenance is required for optimal analyzer performance?

A: Maintenance is minimal due to its self-cleaning and automatic calibration systems. Regular power supply checks and proper storage in a cool, dry environment help maintain optimal operation.
