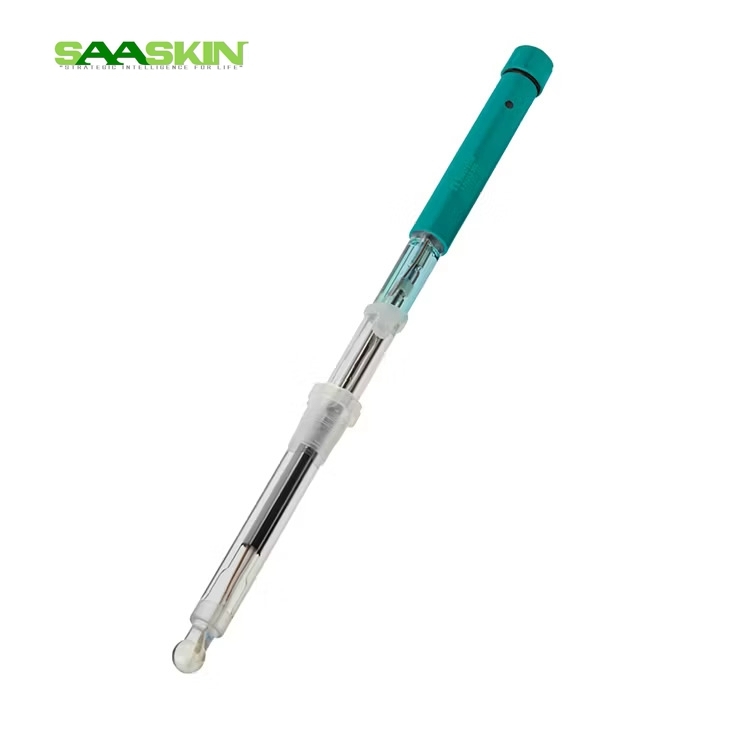

Metrohm dAquatrode Plus with Pt1000

Get a Price/Quote

Product Details:

Material Glass Body with Plastic Cap
Product Type pH Combination Electrode with Integrated Pt1000 Temperature Sensor
Color Transparent/Blue Cap
Classification Laboratory Electrode
Application Laboratory analysis, water analysis, beverage industry, environmental analysis
Weight Approx. 50 g
Operate Method Electrochemical measurement via pH meter
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metrohm dAquatrode Plus with Pt1000 Price And Quantity

Metrohm dAquatrode Plus with Pt1000 Product Specifications

Product Type pH Combination Electrode with Integrated Pt1000 Temperature Sensor
Weight Approx. 50 g
Classification Laboratory Electrode
Material Glass Body with Plastic Cap
Application Laboratory analysis, water analysis, beverage industry, environmental analysis
Capacity Shaft length: 120 mm (typical capacity not applicable)
Color Transparent/Blue Cap
Usage For pH measurement in aqueous solutions
Power Not applicable (passive sensor)
Operate Method Electrochemical measurement via pH meter
Dimension (L*W*H) Length: 120 mm, Shaft Diameter: 12 mm

Reference Electrolyte c(KCl) = 3 mol/L, Ag+ free
Sensor Type Pt1000 temperature sensor, integrated
Suitable For Moderately to highly contaminated samples, viscous samples
Measuring Range (pH) 0 14 pH
Storage Solution KCl solution (3 mol/L)
Membrane Shape Sphere
Fillable Refillable
Temperature Range 0 100 C
Connector Type BNC and Cinch with fixed cable
Diaphragm Platinum wire

Product Description

Brand Metrohm

Material Glass

Capacity 0-13 pH

CAT No. 600202300

Application Titration Accessories

Digital, combined pH electrode for OMNIS, with integrated Pt1000 temperature sensor, for pH measurements/titrations in ion-deficient aqueous media (e.g., drinking water, process water). This electrode shows a very short response time in these samples.
The fixed ground-joint diaphragm is insensitive to contamination.
When c(KCl) = 3 mol/L is used as bridge electrolyte, storage in storage solution is recommended.
The bridge electrolyte can be easily replaced with a chloride-free electrolyte (e.g., potassium nitrate c(KNO3) = 1 mol/L (6.2310.010)). Storage in the bridge electrolyte used.
dTrodes can be used on OMNIS Titrators.

Precision Laboratory Performance

The dAquatrode Plus offers outstanding accuracy for pH measurement with a 0-14 pH range and a wide temperature tolerance from 0 to 100C. Its integrated Pt1000 temperature sensor ensures simultaneous temperature calibration for more reliable readings, essential for laboratories handling sensitive analyses.

Engineered for Contaminated and Viscous Samples

With a platinum wire diaphragm and 3 mol/L KCl reference electrolyte, this electrode operates effectively in moderately to highly contaminated or viscous samples. Its refillable design makes it ideally suited for laboratories handling complex matrices or high-throughput water and beverage testing.

Versatile Connectivity and Robust Construction

The electrode features both BNC and Cinch connectors with a fixed cable for easy integration with most pH meters. Constructed from high-quality glass with a durable plastic cap, it balances chemical resistance with user-friendly operation. The blue cap enhances safe and convenient handling.

FAQ's of Metrohm dAquatrode Plus with Pt1000:

Q: How should the Metrohm dAquatrode Plus with Pt1000 be stored when not in use?

A: To maintain optimal performance and longevity, store the electrode in a 3 mol/L KCl solution in the provided storage vessel. Avoid letting the glass membrane dry out, as this can affect response time and measurement accuracy.

Q: What types of samples is this electrode suitable for?

A: This electrode is specifically designed for moderately to highly contaminated or viscous samples. Its platinum wire diaphragm and robust reference electrolyte system make it ideal for water analysis, beverage industry quality control, and environmental laboratory measurements.

Q: When is it necessary to refill the reference electrolyte?

A: Refill the reference electrolyte (3 mol/L KCl) whenever the level drops below the minimum mark on the shaft. Regular refilling is essential to maintain proper flow and reliable reference conditions during measurements.

Q: Where can this electrode be used within the laboratory setting?

A: The dAquatrode Plus can be used across diverse laboratory environments, including environmental, water, and beverage testing labs. Its compatibility with most pH meters via BNC and Cinch connectors ensures seamless integration into standard laboratory workflows.

Q: What is the benefit of having an integrated Pt1000 temperature sensor?

A: The integrated Pt1000 sensor allows for simultaneous measurement and automatic temperature calibration, resulting in highly accurate pH readings regardless of temperature fluctuations in the sample.

Q: How is pH measurement performed with this electrode?

A: Connect the electrode to a compatible pH meter using the provided BNC or Cinch connector. Immerse the refillable glass membrane in the aqueous solution to be tested, then follow the pH meter's operating instructions to complete the electrochemical measurement process.

Q: What should be considered during usage to ensure optimal results?

A: Ensure the glass membrane is always hydrated in KCl solution and the reference chamber is adequately filled. Proper rinsing between measurements and regular maintenance will help achieve consistent, precise results even in complex sample matrices.
