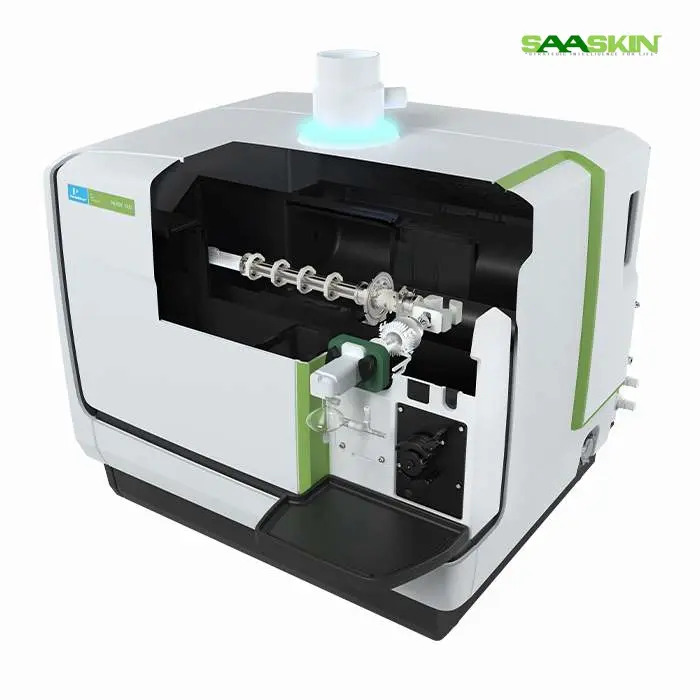

PerkinElmer NexION 1100 ICP Mass Spectrometer

PerkinElmer NexION 1100 ICP Mass Spectrometer

Get a Price/Quote

Product Details:

Automation Grade Fully Automated
Core Components Quadrupole mass analyzer, plasma torch, auto-sampler
Capacity High throughput sample processing
Voltage 200-240 V
Power Source AC Mains
Model No NexION 1100
Accuracy Trace level analysis accuracy (ppt to low ppb levels)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer NexION 1100 ICP Mass Spectrometer Price And Quantity

PerkinElmer NexION 1100 ICP Mass Spectrometer Product Specifications

Automation Grade Fully Automated
Core Components Quadrupole mass analyzer, plasma torch, auto-sampler
Weight Approx. 120 kg
Equipment Materials Corrosion-resistant alloy, polymer housing
Dimension (L*W*H) 98 cm x 68 cm x 69 cm
Capacity High throughput sample processing
Voltage 200-240 V
Power Source AC Mains
Model No NexION 1100
Accuracy Trace level analysis accuracy (ppt to low ppb levels)
Measurement Range Ultra-trace to major element detection
Usage Elemental analysis, environmental, clinical, and industrial laboratory applications
Type ICP Mass Spectrometer
Feature Universal Cell Technology for reaction/collision cell, high sensitivity, rapid sample analysis
Display Type Color touchscreen interface
Frequency 50/60 Hz
Temperature Range Ambient operation

Data Output USB, LAN, RS232, export to LIMS
RF Power 800-1600 W, adjustable
Sample Introduction Nebulizer and spray chamber, autosampler compatible
Detection System Dual-stage discrete dynode detector
Plasma Gas Flow Rate 8-18 L/min (Argon)
Cooling System Internal water cooling or external recirculating chiller
Noise Level <70 dB
Sensitivity Be > 1000 cps/ppb
Software Syngistix for ICP-MS
Mass Range 1-285 amu
Operating Environment Temperature: 15-30°C, Humidity: <80% RH non-condensing
Installation Benchtop, easy-access design
Compliance CE, RoHS, ISO standards
Interface User-friendly touchscreen UI

Product Description

Brand PerkinElmer

Model 1100 ICP

Capacity 34 MHz

CAT No N8170011

Application Spectroscopy

The NexION 1100 is a single-analyzer ICP-MS with three quad-design and a single gas channel, boasting a unique combination of proprietary technologies.

High Precision in Elemental Analysis

The NexION 1100 delivers superior performance and sensitivity for trace and ultra-trace detection, capable of analyzing elements from parts per trillion (ppt) to major concentration levels. Its dual-stage discrete dynode detector and advanced Universal Cell Technology ensure precise quantification, making it ideal for demanding applications where accuracy is essential.

User-Friendly Operation & Automation

This ICP Mass Spectrometer features a color touchscreen interface and is driven by Syngistix software, simplifying daily workflows. Sample introduction is fully automated via autosampler compatibility, providing efficient, high-capacity processing. The easy-access benchtop design and corrosion-resistant materials further enhance user convenience and equipment longevity.

Versatile Application & Compliance

Perfect for environmental, clinical, and industrial applications, the NexION 1100 complies with international CE, RoHS, and ISO standards. Its robust construction and flexible data output options-including USB, LAN, RS232, and LIMS export-ensure seamless integration into any modern laboratory. Designed to meet the highest standards, it delivers reliable results under ambient operational conditions.

FAQ's of PerkinElmer NexION 1100 ICP Mass Spectrometer:

Q: How does the NexION 1100 achieve ultra-trace detection levels in elemental analysis?

A: The NexION 1100 utilizes a dual-stage discrete dynode detector and Universal Cell Technology, offering high sensitivity (e.g., Be > 1000 cps/ppb). Its quadrupole mass analyzer enables detection from ultra-trace (ppt) to major levels, while the adjustable RF power (800-1600 W) allows for optimized plasma conditions, facilitating highly accurate and reliable results.

Q: What sample introduction methods are supported by this spectrometer?

A: Sample introduction is performed via a high-efficiency nebulizer and spray chamber system. The instrument is also compatible with autosamplers, supporting automated, high-throughput sample analysis, which is ideal for laboratories processing large volumes of samples daily.

Q: When should I consider using the NexION 1100 in laboratory workflows?

A: This spectrometer is ideal when precise, multi-elemental analyses at trace or ultra-trace levels are required, such as compliance testing, environmental monitoring, clinical diagnostics, or industrial quality control. Its automation and throughput capabilities make it suitable for both routine and complex analytical tasks.

Q: Where can the NexION 1100 be installed in a laboratory setting?

A: With its easy-access, benchtop design and compact dimensions (98 cm x 68 cm x 69 cm), the NexION 1100 can be placed in standard laboratory environments. It operates within ambient temperature (15-30C) and under <80% RH humidity, making it suitable for most controlled laboratory conditions.

Q: What is the process for exporting data from the NexION 1100 to laboratory information systems?

A: Data can be exported via multiple interfaces including USB, LAN, or RS232. The system is LIMS-compatible, allowing seamless transfer of analytical results directly to laboratory information management systems, thereby streamlining workflow documentation and reporting.

Q: How does the instrument benefit high-throughput laboratories?

A: The high level of automation, autosampler compatibility, and rapid data acquisition allow for efficient processing of large sample batches. This, combined with robust sensitivity and reliable operation, maximizes throughput and provides timely results for laboratories under demanding workloads.

Q: What safety and compliance features does the NexION 1100 offer?

A: The instrument is designed with user safety in mind, including a noise level below 70 dB, built-in cooling options, and a corrosion-resistant construction. It meets CE, RoHS, and ISO requirements, ensuring that it adheres to global safety and operational standards.
