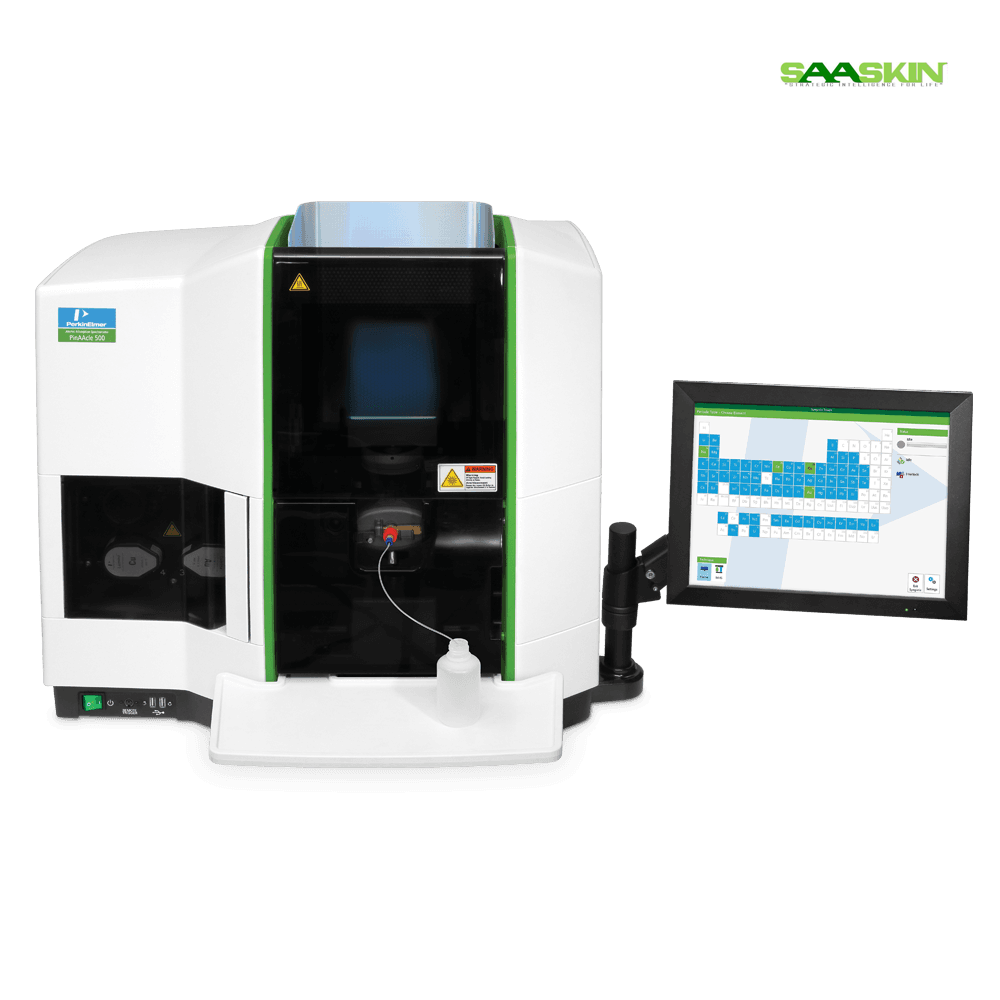

PerkinElmer PinAAcle 500 Flame Atomic Absorption Spectrometer

PerkinElmer PinAAcle 500 Flame Atomic Absorption Spectrometer

Get a Price/Quote

Product Details:

Feature FAST Flame sample automation compatibility, Bluetooth connectivity, USB ports, multi-language support, compact single-flame design
Temperature Range Ambient to 3200C (depending on flame type)
Model No PinAAcle 500
Automation Grade Semi-automatic (with manual or automated sample handling options)
Frequency 50/60 Hz
Measurement Range Sub-ppm to high ppm range depending on element and conditions
Core Components Burner, nebulizer, optical system, atomizer, computer interface
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer PinAAcle 500 Flame Atomic Absorption Spectrometer Price And Quantity

Data Storage Built-in data storage and export via USB
Readout Modes Absorbance, emission, concentration (direct and standard addition methods)
Software WinLab32 for AA software suite
Safety Features Flame sensor, pressure monitoring, automatic gas shutoff
Flame Options Air-acetylene standard; nitrous oxide-acetylene optional
Sample Introduction ASP-40 autosampler compatible (optional)
Lamp Type Hollow cathode lamp (HCL), deuterium background correction optional
Operating Environment Temperature 1035C, humidity 2080% non-condensing
Wavelength Range 190900 nm
Burner Type 10-cm, high-efficiency slot burner
Nebulizer Type High-precision inert nebulizer

PerkinElmer PinAAcle 500 Flame Atomic Absorption Spectrometer Product Specifications

Weight 40 kg (approx.)
Type Flame Atomic Absorption Spectrometer
Feature FAST Flame sample automation compatibility, Bluetooth connectivity, USB ports, multi-language support, compact single-flame design
Temperature Range Ambient to 3200C (depending on flame type)
Model No PinAAcle 500
Dimension (L*W*H) 56 x 48 x 39 cm
Measurement Range Sub-ppm to high ppm range depending on element and conditions
Automation Grade Semi-automatic (with manual or automated sample handling options)
Frequency 50/60 Hz
Accuracy Hightypical RSD < 0.5% for standard solutions
Voltage 110240 V AC universal
Core Components Burner, nebulizer, optical system, atomizer, computer interface
Power Source Electric (mains supply)
Usage Elemental analysis in environmental, food, clinical, and pharmaceutical labs
Equipment Materials Corrosion-resistant, durable metal housing
Display Type Integrated color touchscreen display
Capacity Single or dual element measurement

Data Storage Built-in data storage and export via USB
Readout Modes Absorbance, emission, concentration (direct and standard addition methods)
Software WinLab32 for AA software suite
Safety Features Flame sensor, pressure monitoring, automatic gas shutoff
Flame Options Air-acetylene standard; nitrous oxide-acetylene optional
Sample Introduction ASP-40 autosampler compatible (optional)
Lamp Type Hollow cathode lamp (HCL), deuterium background correction optional
Operating Environment Temperature 1035C, humidity 2080% non-condensing
Wavelength Range 190900 nm
Burner Type 10-cm, high-efficiency slot burner
Nebulizer Type High-precision inert nebulizer

Product Description

Brand PerkinElmer

Model 500

Capacity 21 CFR Part 11 Compatible

CAT No PinAAcle500

Application Spectroscopy

Our PinAAcle 500 is the worlds first completely corrosion-resistant flame atomic absorption (AA) spectrometer, designed to withstand the harshest environments and most corrosive samples. It offers superior durability, longer life, lower maintenance costs, and the fastest return on investment of any flame AA.

Advanced Optical Performance

The PinAAcle 500's broad wavelength range of 190-900 nm and integrated high-efficiency optical system ensure precise detection of a wide variety of elements. The hollow cathode lamp, optional deuterium background correction, and high-stability burner optimize analysis accuracy even in challenging sample matrices.

User-Friendly Operation and Versatile Software

With WinLab32 software and an integrated color touchscreen, users can effortlessly navigate controls, store and export data via USB, and utilize multi-language support. The semi-automatic design accommodates both manual and automated workflows, streamlining processes and adapting to changing laboratory needs.

Designed for Safety and Reliability

Equipped with flame sensors, pressure monitors, and automatic gas shutoff, the PinAAcle 500 prioritizes safety. Its corrosion-resistant, durable metal housing ensures longevity in demanding laboratory environments, and robust automation options including sample automation compatibility further enhance security and reproducibility.

FAQ's of PerkinElmer PinAAcle 500 Flame Atomic Absorption Spectrometer:

Q: How does the PinAAcle 500 ensure reliable and accurate elemental analysis?

A: The PinAAcle 500 utilizes a high-efficiency slot burner, high-precision inert nebulizer, and advanced optics with a wavelength range of 190-900 nm. These features, combined with its hollow cathode lamp and optional deuterium background correction, provide accuracy with a typical RSD of less than 0.5% for standard solutions.

Q: What types of samples or industries can benefit from using the PinAAcle 500?

A: This spectrometer is ideal for laboratories involved in environmental monitoring, food safety, clinical diagnostics, and pharmaceutical analysis. It handles a wide concentration range-sub-ppm to high ppm-making it suitable for routine and stringent quality control testing.

Q: When should I consider using optional nitrous oxide-acetylene flames?

A: Optional nitrous oxide-acetylene flames are recommended when analyzing refractory elements requiring higher temperatures, such as aluminum or titanium, as the instrument supports an ambient to 3200C temperature range depending on flame type.

Q: Where can the PinAAcle 500 be installed and what operating conditions are required?

A: The PinAAcle 500 is suitable for any laboratory with electric mains supply (110-240 V AC) and can operate efficiently in environments with temperatures between 10-35C and relative humidity of 20-80% (non-condensing). Its compact size allows placement in space-limited labs.

Q: What is the process for introducing samples, and can the PinAAcle 500 be automated?

A: Samples can be introduced manually or using the optional ASP-40 autosampler for automation. The system is compatible with FAST Flame sample automation, enabling higher throughput and consistent analysis results for various application needs.

Q: How does the software facilitate data storage and reporting?

A: WinLab32 for AA software offers integrated data storage, seamless USB export, and report generation. Results can be reviewed and shared efficiently, and the multi-language interface enhances ease of use in diverse laboratory settings.

Q: What are the main benefits of the PinAAcle 500 for laboratory workflows?

A: Key benefits include high accuracy and reliability, user-friendly operation, robust safety mechanisms, flexible automation options, and compatibility with both air-acetylene and optional nitrous oxide-acetylene flames, helping laboratories achieve dependable elemental determinations with minimal training.
