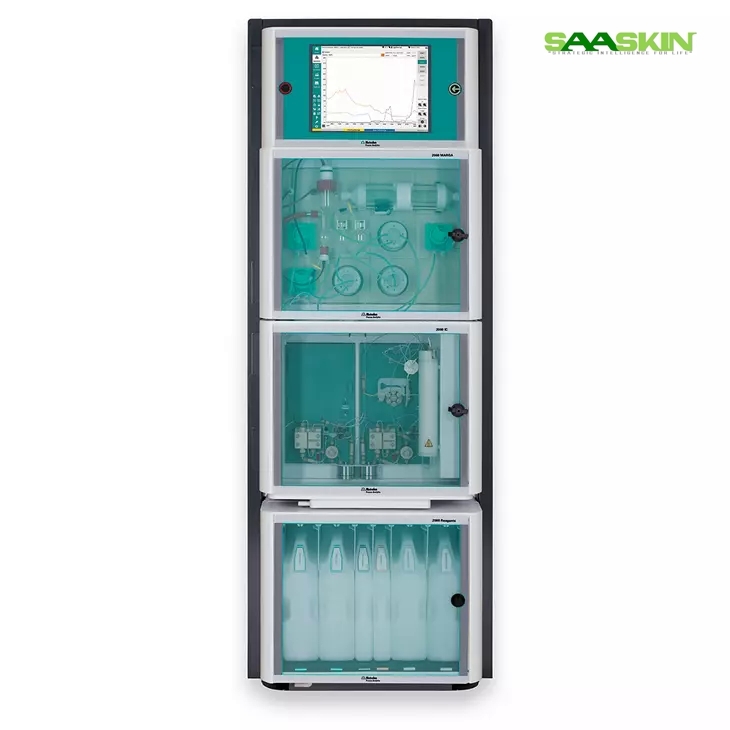

Metrohm 2060 MARGA M Continuous air monitoring

Metrohm 2060 MARGA M Continuous air monitoring

Get a Price/Quote

Product Details:

Voltage 230 V AC, 50/60 Hz
Feature Real-time analysis, remote access, multi-parameter detection, high sampling efficiency
Capacity Continuous monitoring (no traditional volume limitation) for aerosols and gases
Core Components Ion chromatographs, air sampling inlet, wet rotating denuder, analytical pumps, software
Measurement Range 0 - 100 g/m (typical analyte-dependent)
Temperature Range -20C to +40C (operating conditions)
Model No 2060 MARGA M
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Metrohm 2060 MARGA M Continuous air monitoring Price And Quantity

Metrohm 2060 MARGA M Continuous air monitoring Product Specifications

Equipment Materials Corrosion-resistant, powder-coated steel housing; inert wetted parts
Type Continuous air monitoring analyzer
Measurement Range 0 - 100 g/m (typical analyte-dependent)
Temperature Range -20C to +40C (operating conditions)
Voltage 230 V AC, 50/60 Hz
Feature Real-time analysis, remote access, multi-parameter detection, high sampling efficiency
Weight Approx. 130 kg
Capacity Continuous monitoring (no traditional volume limitation) for aerosols and gases
Usage Automatic sampling and analysis of inorganic gases and aerosols in ambient air
Core Components Ion chromatographs, air sampling inlet, wet rotating denuder, analytical pumps, software
Display Type Digital display, touchscreen interface
Accuracy High accuracy, LOD as low as 0.01 g/m depending on analyte
Automation Grade Fully automatic, unattended operation
Power Source 230 V AC, 50/60 Hz
Model No 2060 MARGA M
Frequency 50/60 Hz
Dimension (L*W*H) 710 mm x 2000 mm x 500 mm

Cooling System Integrated for stable operation
Compliance EN 12341, US-EPA, and ISO 10473 standards
Analytes Measured NH, SO, HNO, HCl, HNO, Cl, NO, SO, NH, Na, K, Ca, Mg
Detection Method Ion chromatography (IC)
Maintenance Minimal, fully automated calibration and cleaning cycles
Data Communication Ethernet, USB, RS232
Remote Monitoring Capability Yes, via built-in software interface
Sampling Duration Hourly and daily resolution (customizable)
Data Storage Integrated data logger with export functions
Operating Humidity Up to 95% RH (non-condensing)
Sample Flow Rate ~1 m/h (adjustable)
Safety Features Leak detection sensors, fail-safe operation

Product Description

Brand Metrohm

Model 2060

Capacity 20-30 C

CAT No A402060111C

Application Spectroscopy

The 2060 Monitor for AeRosols and Gases in ambient Air (MARGA) uses ion chromatography to monitor air quality by measuring the concentration of water-soluble gases and aerosols in air containing different sizes of particulate matter. Air is drawn in to the instrument by a vacuum pump at a constant flow rate. Before entering the instrument, the maximum size of particulate matter (PM) can be limited by utilizing a size-selective inlet (e.g. PM 1.0, PM 2.5 or PM 10). The water-soluble gases are absorbed in a Wet Rotating Denuder (WRD) device and then the water-soluble ions in the aerosols are extracted in a Steam-Jet Aerosol Collector (SJAC).

Comprehensive Real-Time Air Analysis

The 2060 MARGA M provides continuous, high-precision measurement of both aerosols and gases commonly found in ambient air. Its ion chromatography technology captures critical environmental data at hourly or daily intervals, giving users full insight into air composition trends and variations.

Seamless Automation and Remote Monitoring

With its fully automatic calibration and cleaning cycles, the system requires minimal manual intervention. Remote access and monitoring are enabled by integrated software, allowing users to control, check, and export data from any location through Ethernet, USB, or RS232 connectivity.

Reliable Performance in Challenging Environments

Engineered with a robust, corrosion-resistant housing and an integrated cooling system, the 2060 MARGA M operates effectively in extreme temperatures and high humidity. Its leak detection and fail-safe mechanisms ensure uninterrupted, safe operation even under demanding field conditions.

FAQ's of Metrohm 2060 MARGA M a Continuous air monitoring:

Q: How does the Metrohm 2060 MARGA M perform continuous air analysis?

A: The 2060 MARGA M utilizes ion chromatography to automatically collect, analyze, and quantify inorganic gases and aerosols in real-time. Through fully automated sampling, calibration, and cleaning cycles, it ensures reliable and accurate data capture around the clock.

Q: What types of substances can the 2060 MARGA M detect in ambient air?

A: This analyzer measures a wide range of analytes including NH3, SO2, HNO3, HCl, HNO2, Cl, NO3, SO42, NH4+, Na+, K+, Ca2+, and Mg2+, covering both gaseous and particulate-phase components crucial for regulatory and research monitoring.

Q: When should I consider using the 2060 MARGA M for air quality monitoring?

A: The 2060 MARGA M is ideal for continuous air quality surveillance, regulatory compliance, research studies, or industrial site monitoring. It provides precise measurements at customizable hourly or daily intervals, making it suitable for both routine and specialized monitoring needs.

Q: Where can the 2060 MARGA M be installed and operated?

A: Designed for field deployment and laboratory settings, the device performs optimally in ambient environments ranging from -20C to +40C with up to 95% RH (non-condensing). Its corrosion-resistant housing ensures durability in diverse locations.

Q: What is the process for accessing and exporting collected data?

A: Data is securely stored on an integrated logger and can be exported via Ethernet, USB, or RS232 connections. Additionally, users can monitor and control the analyzer remotely using its built-in software interface, ensuring flexible data management.

Q: How is maintenance managed for this analyzer?

A: The system features fully automated calibration and cleaning cycles, reducing the need for manual maintenance. Leak detection sensors and robust fail-safe operations further minimize intervention and enhance operational reliability.

Q: What are the key benefits of using the Metrohm 2060 MARGA M?

A: Key advantages include unattended, continuous monitoring, high-accuracy multi-parameter detection, real-time analysis, remote accessibility, compliance with international standards, and robust performance under challenging environmental conditions.
