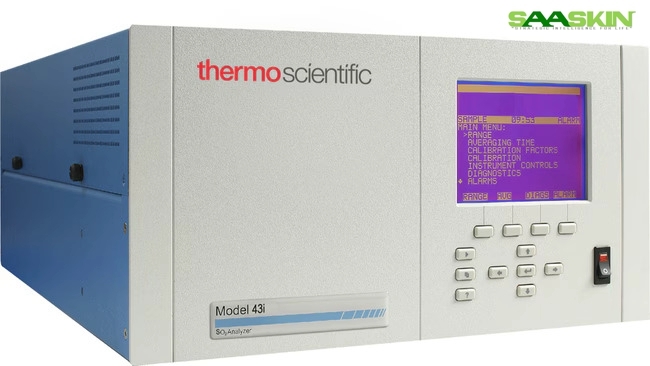

Thermo Scientific Model 43i SO2 Analyzer

Thermo Scientific Model 43i SO2 Analyzer

Get a Price/Quote

Product Details:

Voltage 90250 VAC
Measurement Range 0-50 ppb to 0-10,000 ppm (user selectable)
Frequency 50/60 Hz
Automation Grade Automatic/Continuous
Power Source AC Mains (90250 VAC)
Core Components UV Fluorescence detector, microprocessor control unit, sample pump
Temperature Range 5C to 40C (operating)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Model 43i SO2 Analyzer Price And Quantity

Thermo Scientific Model 43i SO2 Analyzer Product Specifications

Display Type Alphanumeric backlit LCD display
Accuracy 1% of full scale
Usage Ambient air monitoring, stack gas monitoring, environmental monitoring
Capacity Up to 10,000 ppm SO2 (user selectable range)
Equipment Materials Corrosion resistant metal chassis, stainless steel sample cell
Feature Dual range, auto-ranging, Ethernet connectivity, RS232/RS485 outputs, internal data storage
Temperature Range 5C to 40C (operating)
Dimension (L*W*H) 17 in x 19 in x 8.75 in (432 mm x 483 mm x 222 mm)
Core Components UV Fluorescence detector, microprocessor control unit, sample pump
Type Continuous Gas Analyzer
Model No Model 43i
Power Source AC Mains (90250 VAC)
Frequency 50/60 Hz
Voltage 90250 VAC
Measurement Range 0-50 ppb to 0-10,000 ppm (user selectable)
Weight Approximately 18 kg (40 lbs)
Automation Grade Automatic/Continuous

Product Description

Brand

Thermo Fisher Scientific

Model

Model 43i

Capacity

0.5 L/min. (standard), 1 L/min. (optional)

CAT No

43I

Application

Electrochemistry

Measure SO2 in ambient air up to 100ppm with the Thermo Scientific Model 43i SO2 Analyzer, the first gas analyzer to utilize pulsed fluorescence technology to measure SO2. Reflective bandpass filters are less subject to photochemical degradation and more selective in wavelength isolation, resulting in both increased detection specificity and long term stability.

Advanced Detection with Ultraviolet Fluorescence

The Model 43i employs ultraviolet fluorescence as its core detection principle, ensuring highly sensitive and selective measurement of sulfur dioxide concentrations. This method provides rapid response and excellent noise performance, making it suitable for both high and low SO2 environments.

Designed for Precision and Reliability

With features including a corrosion-resistant chassis, stainless steel sample cell, and 1% linearity and accuracy of full scale, the 43i guarantees durable, dependable operation. Its internal microprocessor control and dual range, auto-ranging capability further enhance measurement flexibility and reliability.

Comprehensive Data Handling and Connectivity

Store up to one year of 1-minute SO2 data internally, and choose from multiple analog and digital output options such as Ethernet, USB, RS232, and RS485 for seamless system integration. Programmable alarm relays and an intuitive display offer complete monitoring and system status at a glance.

FAQ's of Thermo Scientific Model 43i SO2 Analyzer:

Q: How does the Thermo Scientific Model 43i SO2 Analyzer measure sulfur dioxide levels?

A: The Model 43i uses ultraviolet fluorescence detection, which involves exposing the sampled gas to UV light. SO2 molecules fluoresce under UV radiation, and the emitted light is measured, delivering accurate SO2 concentration readings.

Q: What are the main applications for this SO2 analyzer?

A: This analyzer is widely utilized in ambient air monitoring, stack gas monitoring, and environmental monitoring. Its broad measurement range and robust data handling capabilities make it suitable for industrial, environmental, and regulatory compliance settings.

Q: When should maintenance be performed on the Model 43i?

A: Routine maintenance, such as checking the sample pump and replacing filters, should be performed per the manufacturer's guidelines or when the analyzer indicates reduced performance. Frequent checks in harsh environments can ensure accuracy and longevity.

Q: Where can the Model 43i be installed for monitoring?

A: Thanks to its durable, corrosion-resistant chassis and operating temperature range of 5C to 40C, the analyzer can be installed in indoor laboratories, process control rooms, or sheltered outdoor monitoring stations, as long as non-condensing humidity conditions are ensured.

Q: What process does the analyzer use for data storage and retrieval?

A: The Model 43i features internal data storage, capturing up to one year of 1-minute interval SO2 data. Data can be retrieved locally via USB or remotely through Ethernet or serial communication (RS232/RS485), compatible with standard data acquisition systems.

Q: How can users benefit from the analog and digital output options?

A: With both 0-10 V and 4-20 mA analog outputs, plus Ethernet, USB, RS232, and RS485 digital outputs, the 43i allows easy integration with SCADA systems, data loggers, or process controllers, enabling real-time monitoring and alarms for process optimization or compliance reporting.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Life Sciences' category

PerkinElmer Spectrum Two Educational System Automation Grade : Automatic background collection, simple workflows Weight : ~14 kg Measurement Range : 7800350 cm Model No : Spectrum Two Educational System Core Components : Interferometer, desiccant protection system, IR source, detector Type : FTIR Spectrometer Temperature Range : Ambient Dimension (L*W*H) : 475 mm x 300 mm x 195 mm Equipment Materials : Robust, chemicalresistant plastics and metals Feature : Plugandplay operation, easytouse interface, minimal maintenance Accuracy : Wavenumber accuracy better than 0.5 cm (polystyrene film) Usage : Educational laboratory and routine FTIR analysis Display Type : Highcontrast LCD touch screen Voltage : 100240 V AC, autosensing Frequency : Electrical: 50/60 Hz | Spectral: 7800350 cm Power Source : AC (100240 V) Mains Capacity : Single beam, standard sample compartment accepts a variety of cuvettes and holders

Send Inquiry

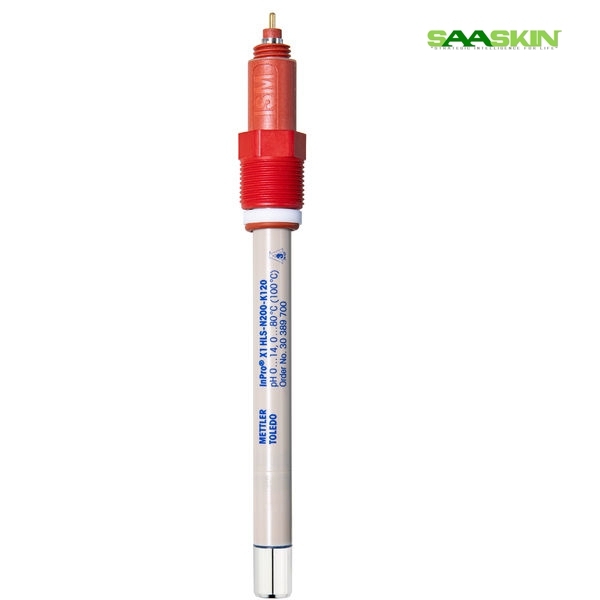

Mettler Toledo pH Sensor InPro X1 HLS-N200-K120 Automation Grade : Automatic, for continuous measurement Weight : Approx. 200 grams Measurement Range : pH 0 14 Model No : InPro X1 HLSN200K120 Core Components : Glass pH electrode, Noryl/PEEK housing, cable connection Type : pH Sensor Temperature Range : 0C to 100C Dimension (L*W*H) : Length 120 mm, Diameter 12 mm Equipment Materials : Durable glass body, Noryl head and PEEK shaft Feature : Designed for hygienic applications, robust and chemical resistant, steam sterilizable, autoclavable Accuracy : 0.02 pH Usage : Inline pH measurement for hygienic applications Display Type : None (sensor with cable output) Voltage : Not applicable (passive electrochemical sensor) Frequency : N/A (not applicable for sensor) Power Source : Not required for sensor; powered via pH transmitter Capacity : Suitable for standard process volumes (exact capacity not specified)
