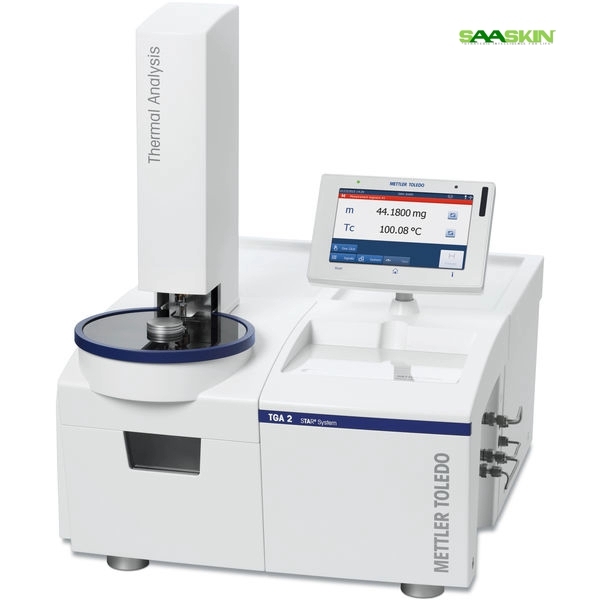

Mettler Toledo Thermal Analysis System TGA 2

Mettler Toledo Thermal Analysis System TGA 2

Get a Price/Quote

Product Details:

Automation Grade Automatic
Capacity 1 g to 5 g
Measurement Range 200 g ... 5 g
Temperature Range Room temperature to 1600C
Core Components TGA Measuring Cell, Furnace, Control Unit
Accuracy 0.1 g
Power Source AC Electrical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Thermal Analysis System TGA 2 Price And Quantity

Compliance GLP/GMP and 21 CFR Part 11 ready
Atmosphere Static or Dynamic (Inert or Oxidizing)
Balance Resolution 0.1 g
Language Support Multi-language user interface
Calibration Fully automated weight calibration
Gas Flow Control Integrated, up to 3 gases
Sample Crucible Volume Up to 900 L
Software STARe Software Suite
Maximum Sample Size 5 g
Sample Pans Aluminum, Platinum, Ceramic compatible
Operating Temperature 15C 35C (ambient)
Cooling Time (1600C to 100C) ~20 min
Data Interface USB, Ethernet
Heating Rate 0.1 to 200 K/min

Mettler Toledo Thermal Analysis System TGA 2 Product Specifications

Power Source AC Electrical
Equipment Materials Aluminum, Stainless steel
Feature Fully automatic, High precision balance, Fast heating rates
Voltage 100240 V AC
Model No TGA 2
Usage Thermal analysis of materials
Frequency 50/60 Hz
Accuracy 0.1 g
Core Components TGA Measuring Cell, Furnace, Control Unit
Weight ~14 kg (instrument only)
Temperature Range Room temperature to 1600C
Measurement Range 200 g ... 5 g
Dimension (L*W*H) 410 x 210 x 360 mm
Automation Grade Automatic
Display Type 7-inch Color Touchscreen
Capacity 1 g to 5 g
Type Thermo Gravimetric Analyzer

Compliance GLP/GMP and 21 CFR Part 11 ready
Atmosphere Static or Dynamic (Inert or Oxidizing)
Balance Resolution 0.1 g
Language Support Multi-language user interface
Calibration Fully automated weight calibration
Gas Flow Control Integrated, up to 3 gases
Sample Crucible Volume Up to 900 L
Software STARe Software Suite
Maximum Sample Size 5 g
Sample Pans Aluminum, Platinum, Ceramic compatible
Operating Temperature 15C 35C (ambient)
Cooling Time (1600C to 100C) ~20 min
Data Interface USB, Ethernet
Heating Rate 0.1 to 200 K/min

Product Description

Brand Mettler Toledo

Model TGA 2

Capacity 1 K

CAT No 30139260

Application Thermal Analysis

The unique One ClickTM function allows to safely and easily start predefined measuring methods directly from the instruments color touchscreen display

Superior Thermal Analysis Performance

The TGA 2 delivers fast heating rates up to 200 K/min and quick cooling capabilities, making it suitable for a variety of thermal analysis applications up to 1600C. With a balance resolution of 0.1 g and automated weight calibration, users can trust its measurement accuracy for demanding research or quality control tasks.

Designed for Flexibility and Ease of Use

Compatible with aluminum, platinum, and ceramic sample crucibles, the TGA 2 accommodates a wide range of sample types, from 200 g to 5 g, in up to 900 L volumes. It features a vibrant 7-inch color touchscreen and supports multi-language interfaces for convenient operation in diverse laboratory settings.

Advanced Connectivity and Compliance

The system includes integrated gas flow control for up to three gases, USB and Ethernet data transfer, and is 21 CFR Part 11 ready with GLP/GMP compliance. The robust STARe Software Suite streamlines equipment management, data integrity, and regulatory compliance for laboratories.

FAQ's of Mettler Toledo Thermal Analysis System TGA 2:

Q: How does the TGA 2 handle different atmospheric conditions during analysis?

A: The TGA 2 accommodates both static and dynamic atmospheres, allowing users to perform analyses in either inert or oxidizing conditions. Integrated gas flow control enables precise management of up to three different gases during measurements.

Q: What are the main benefits of using the TGA 2 for thermal analysis?

A: The TGA 2 offers high-precision measurements, automated weight calibration, rapid heating and cooling, and multi-language support. Its compliance with regulatory standards (GLP/GMP and 21 CFR Part 11) and compatibility with various sample pans provide versatility and reliability for laboratory applications.

Q: When is it recommended to use aluminum, platinum, or ceramic crucibles with the TGA 2?

A: Choice of crucible depends on the sample's thermal and chemical properties. Aluminum is often used for standard samples, platinum for high-temperature or reactive samples, and ceramic for corrosive materials or specific analyses demanding chemical inertness.

Q: Where can the TGA 2 be installed, and what are its space requirements?

A: The TGA 2 should be installed in laboratories with an ambient temperature of 15C to 35C. It requires a space of at least 410 x 210 x 360 mm for the instrument alone and access to AC electrical supply (100-240 V, 50/60 Hz).

Q: What types of materials or samples can be analyzed with the TGA 2?

A: The TGA 2 is ideal for analyzing polymers, pharmaceuticals, metals, inorganic and organic materials, and more, due to its wide temperature range and crucible compatibility.

Q: How does the TGA 2 ensure data integrity and regulatory compliance?

A: The fully automated system utilizes the STARe Software Suite, providing secure data management, traceability, and electronic records in accordance with 21 CFR Part 11 as well as GLP/GMP guidelines.

Q: What is the typical process for conducting a thermal gravimetric analysis using the TGA 2?

A: Prepare the sample in a compatible crucible, load it into the instrument, set the desired temperature program and atmosphere using the touchscreen and software, and initiate the measurement. The TGA 2 automatically controls the environment, records data, and calibrates as needed for accuracy.
