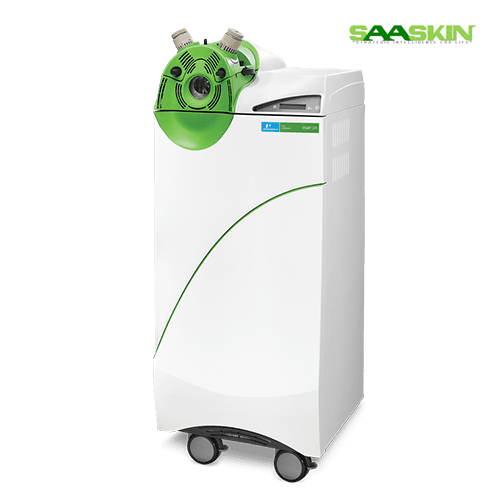

PerkinElmer QSight 210 LC/MS/MS System

Get a Price/Quote

Product Details:

Automation Grade Fully automated sample analysis
Capacity High-throughput, suitable for routine quantitation in pharmaceutical, food, and environmental labs
Frequency 50/60 Hz
Core Components Ion source, triple quadrupole mass analyzer, vacuum system, ESI and APCI source
Accuracy High accuracy; attogram/fg range for target compound detection
Voltage 220-240 V
Model No QSight 210
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer QSight 210 LC/MS/MS System Price And Quantity

PerkinElmer QSight 210 LC/MS/MS System Product Specifications

Measurement Range fg to ng (attogram to nanogram detection limits)
Equipment Materials Stainless steel, specialized alloys and engineering polymers for robustness and chemical resistance
Temperature Range Ambient (for system operation)
Feature Exceptional sensitivity, All-new StayClean Source technology, rapid screening, minimal maintenance
Power Source AC Mains
Weight Approximately 120 kg
Usage Quantitative and confirmatory analysis in pharmaceutical, food safety, and environmental applications
Capacity High-throughput, suitable for routine quantitation in pharmaceutical, food, and environmental labs
Display Type 10.4-inch color touchscreen interface (Chromera Software)
Dimension (L*W*H) 103 cm 55 cm 55 cm
Type Triple Quadrupole LC/MS/MS System
Automation Grade Fully automated sample analysis
Model No QSight 210
Voltage 220-240 V
Accuracy High accuracy; attogram/fg range for target compound detection
Core Components Ion source, triple quadrupole mass analyzer, vacuum system, ESI and APCI source
Frequency 50/60 Hz

Maintenance StayClean self-cleaning source technology reduces downtime
Ionization Modes Dual ESI (Electrospray Ionization) and APCI (Atmospheric Pressure Chemical Ionization)
Carrier Gas Pressure Adjustable, typically 65-100 psi
Operating Environment 15 to 35C; < 80% RH (non-condensing)
Scan Types MRM (Multiple Reaction Monitoring), full scan, and product ion scan
MS Resolution < 0.7 u FWHM (Full Width Half Maximum)
Sample Introduction Automated via compatible LC system
Software QSight acquisition and data analysis software
Data System Chromera CDS integration, Windows platform
Desolvation Gas User-supplied dry air or nitrogen
Nebulizer Gas User-supplied nitrogen
Maximum Flow Rate 2.0 mL/min (depending on method)
Interface USB, Ethernet
Noise Level < 60 dB(A)

Product Description

Brand PerkinElmer

Model QSight 210

Capacity Patented flow-based technology

CAT No BC003383

Application Chromatography

The QSight LC/MS/MS System provides the capability and confidence required to analyze the most complex food and environmental samples. With high level of sensitivity and throughput, laboratories can meet even the most stringent regulatory requirements rapidly, easily, and effectively

Exceptional Sensitivity and Versatile Ionization

The QSight 210 features dual Electrospray Ionization (ESI) and Atmospheric Pressure Chemical Ionization (APCI) to accommodate a wide array of sample types. Coupled with rapid scanning modes such as MRM, full scan, and product ion scan, the system enables precise quantitation and identification of trace-level analytes, ensuring robust results across diverse laboratory settings.

Cutting-edge Maintenance Reduction with StayCleanTM Technology

Engineered with the innovative StayCleanTM self-cleaning source, the QSight 210 significantly reduces downtime, ensuring maximum system availability for demanding workflows. This design innovation supports extended operation without the frequent manual cleaning typically required in conventional systems.

Comprehensive Data Management with Chromera Software

Integration with Chromera CDS software on a 10.4-inch touchscreen delivers streamlined control and data analysis. Automated sample handling and customizable reporting capabilities support high-throughput workflows while maintaining compliance and traceability, essential for regulated environments.

FAQ's of PerkinElmer QSight 210 LC/MS/MS System:

Q: How does the StayCleanTM self-cleaning source technology benefit laboratory operations?

A: The StayCleanTM self-cleaning source technology sustains peak instrument performance by automatically removing contaminants from the ion source, thereby reducing manual maintenance and minimizing instrument downtime, which increases efficiency in busy labs.

Q: What types of analyses can the QSight 210 LC/MS/MS system perform?

A: The QSight 210 is designed for both quantitative and confirmatory analyses, ideal for pharmaceutical quality control, food safety testing, and environmental monitoring applications requiring high sensitivity and accuracy.

Q: When should I use ESI versus APCI ionization modes on this system?

A: Use Electrospray Ionization (ESI) for polar, thermally labile compounds typically found in biological or pharmaceutical samples. Atmospheric Pressure Chemical Ionization (APCI) is better suited for less polar, more volatile analytes, extending the system's application range.

Q: Where can the QSight 210 system be installed and operated?

A: This system is suitable for installation in laboratories that maintain an ambient temperature between 15 and 35C and relative humidity below 80% (non-condensing). Its robust build and relatively quiet operation position it well for diverse research and quality assurance environments.

Q: What processes are automated with the QSight 210?

A: The system supports fully automated sample introduction via compatible LC systems, as well as automated data acquisition and analysis using Chromera software, enhancing throughput and reducing operator intervention.

Q: How is data managed and accessed on the QSight 210 LC/MS/MS?

A: All experiment setup, control, acquisition, and analysis are managed via Chromera CDS integration, accessible through a 10.4-inch color touchscreen running on a Windows platform. Data can be easily exported, archived, and reviewed across secure networks using USB or Ethernet interfaces.

Q: What is the practical benefit of the QSight 210's exceptional sensitivity and accuracy?

A: With sensitivity in the attogram to nanogram range, the system allows for accurate detection and quantitation of ultra-trace levels of target compounds. This ensures regulatory compliance and supports rigorous quality standards in pharmaceutical, food, and environmental testing.
