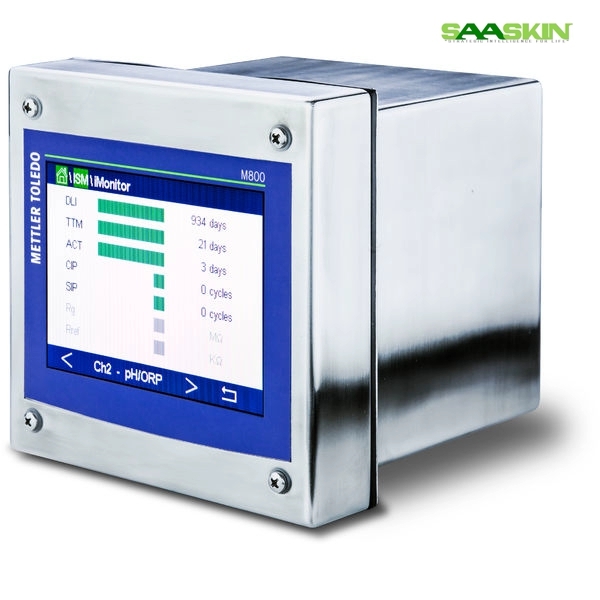

Mettler Toledo Transmitter M800 Process 1-CH SS

Mettler Toledo Transmitter M800 Process 1-CH SS

Get a Price/Quote

Product Details:

Model No M800 Process 1-CH SS
Measurement Range Sensor dependent (e.g., Conductivity: 0.01 S/cm to 1,000 mS/cm)
Core Components Microprocessor, LCD Display, Stainless Steel Case
Temperature Range -20C to +55C
Feature Intuitive user interface, robust stainless steel enclosure, modular design, USB port for data export
Automation Grade Automatic
Capacity 1-Channel (1-CH)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Transmitter M800 Process 1-CH SS Price And Quantity

Mettler Toledo Transmitter M800 Process 1-CH SS Product Specifications

Model No M800 Process 1-CH SS
Measurement Range Sensor dependent (e.g., Conductivity: 0.01 S/cm to 1,000 mS/cm)
Core Components Microprocessor, LCD Display, Stainless Steel Case
Display Type LCD graphical display with status indicators
Equipment Materials Stainless Steel Housing (SS)
Temperature Range -20C to +55C
Dimension (L*W*H) 178 x 145 x 123 mm
Automation Grade Automatic
Feature Intuitive user interface, robust stainless steel enclosure, modular design, USB port for data export
Accuracy High measurement precision (Sensor-dependent, e.g., 0.1% for conductivity)
Capacity 1-Channel (1-CH)
Power Source AC power supply
Type Process Transmitter
Usage Multiparameter process analytics: pH/ORP, Dissolved Oxygen, Conductivity, Ozone
Frequency 50/60 Hz
Voltage 100240 V AC
Weight Approximately 2.1 kg

Data Logging Internal event log with time-stamped measurements and calibration records
Outputs 4 x 420 mA isolated outputs, 4 configurable relays, Ethernet and Fieldbus compatible
Display Backlight Yes, adjustable
Applicable Sensors Digital ISM sensors and analog pH/ORP, O2, Conductivity, Ozone sensors
User Interface Multiple language support, customizable display options
Communication Interface USB, Ethernet, optional Profibus/Modbus
Operating Humidity 10% to 90% RH non-condensing
Enclosure Rating Corrosion-resistant, suitable for harsh industrial environments
Mounting Type Wall or panel mount
Ingress Protection IP66 / NEMA 4X

Product Description

Brand Mettler Toledo

Model M800

Capacity 10 x 0/4-20mA

CAT No 30246551

Application Water System

The single-channel M800 Process is a multi-parameter transmitter with a stainless steel enclosure that provides high-performance, reliable measurement and offers the ability to integrate with a wide range of ISM and analog sensors.

Robust Performance in Demanding Environments

With a corrosion-resistant stainless steel housing and IP66/NEMA 4X enclosure, the M800 Process 1-CH SS transmitter is designed for optimal reliability in harsh industrial settings. Its wide operating temperature range and resistance to humidity ensure dependable analytics in chemical, pharmaceutical, and water treatment plants.

Flexible Communication and Integration

Equipped with Ethernet, USB, and optional Profibus/Modbus interfaces, alongside 4 configurable relays and four 4-20 mA isolated outputs, the M800 seamlessly integrates into modern automated systems. Its compatibility with digital ISM and analog sensors enables diverse application possibilities.

User-Friendly Operation and Advanced Data Logging

The intuitive, multi-language interface, adjustable display backlight, and internal event log simplify both daily operation and records management. Automatic event logging with time-stamping helps maintain measurement, calibration, and maintenance traceability, supporting stringent process controls.

FAQ's of Mettler Toledo Transmitter M800 Process 1-CH SS:

Q: How do I install the M800 Process 1-CH SS transmitter in my facility?

A: The M800 Process 1-CH SS can be wall or panel mounted, offering flexibility to suit your site layout. The robust stainless steel enclosure and IP66/NEMA 4X ingress protection ensure safe installation in harsh environments.

Q: What types of sensors are compatible with this transmitter?

A: It supports a range of digital ISM sensors and analog sensors for pH/ORP, Dissolved Oxygen, Conductivity, and Ozone, providing multiparameter process analytics across multiple applications.

Q: When is data logging activated and how is data stored?

A: Data logging occurs automatically, recording all events, measurements, and calibrations in a time-stamped internal log. This feature helps monitor process histories and trace any anomalies for enhanced quality control.

Q: Where can I access and export logged data from the transmitter?

A: Logged data can be accessed via the user interface and exported through the onboard USB port or Ethernet connection, supporting efficient process documentation and remote supervision.

Q: What is the main benefit of the stainless steel (SS) housing?

A: The stainless steel housing offers superior corrosion resistance and durability, making the M800 suitable for challenging chemical, pharmaceutical, and food industry environments.

Q: How does the user interface enhance operation efficiency?

A: The transmitter features a customizable graphical LCD with adjustable backlight, multi-language support, and intuitive menu navigation, enabling quick set-up and easy monitoring for operators.

Q: What advantages does the M800 offer for process automation?

A: With four 4-20 mA isolated outputs, four configurable relays, comprehensive communication interfaces, and high measurement accuracy, the M800 supports full integration into automated control systems, optimizing reliability and process performance.
