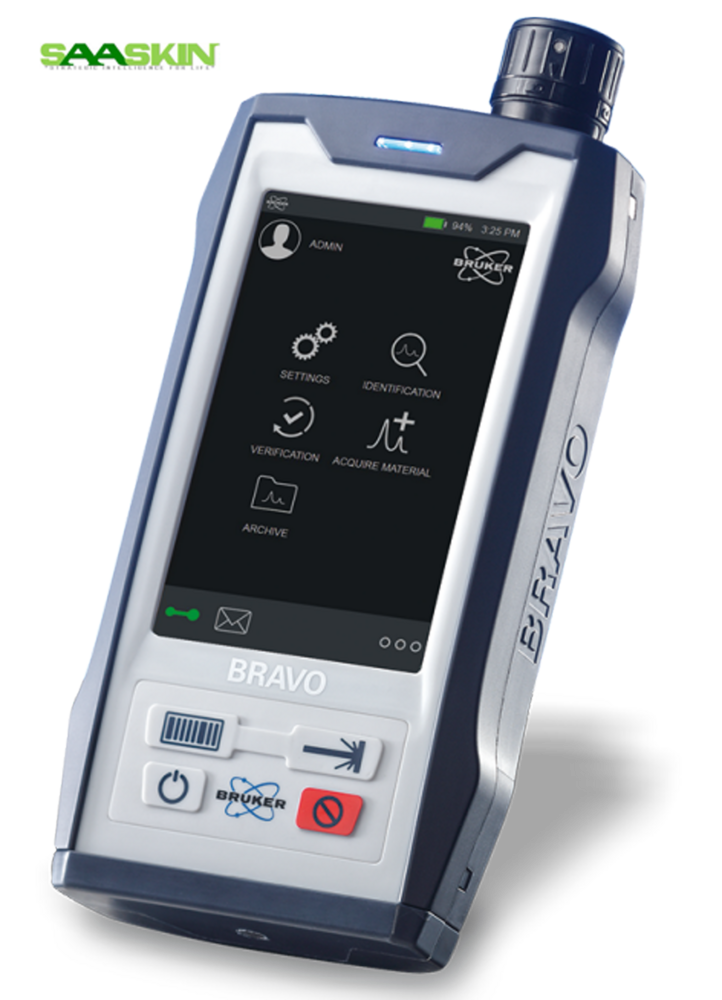

Bruker Bravo Handheld Raman Spectrometer

Bruker Bravo Handheld Raman Spectrometer

Get a Price/Quote

Product Details:

Model No Bravo
Frequency Laser frequency: 785 & 852 nm dual laser excitation
Core Components Dual laser, CCD detector, touch display
Measurement Range Raman shift 300 3200 cm
Accuracy 7 cm Raman shift precision
Automation Grade Automatic & manual
Capacity 10,000+ spectra storage
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Bruker Bravo Handheld Raman Spectrometer Price And Quantity

Bruker Bravo Handheld Raman Spectrometer Product Specifications

Voltage Battery: 7.4 V / 6.6 Ah
Temperature Range Operation: -20C to +40C
Power Source Lithium-ion rechargeable battery
Feature SSE patented fluorescence mitigation technology, on-board library
Capacity 10,000+ spectra storage
Dimension (L*W*H) 255 x 100 x 60 mm
Accuracy 7 cm Raman shift precision
Automation Grade Automatic & manual
Measurement Range Raman shift 300 3200 cm
Usage Material identification, verification, and authentication
Display Type Color touch screen (QVGA, sunlight-readable)
Weight 2.9 lbs (1.3 kg)
Core Components Dual laser, CCD detector, touch display
Equipment Materials Rugged plastic housing, IP rated
Type Handheld Raman Spectrometer
Frequency Laser frequency: 785 & 852 nm dual laser excitation
Model No Bravo

Product Description

Brand Bruker

Model BRAVO

Capacity 21 CFR Part 11

CAT No BRAVO

Application Spectroscopy

BRAVO is THE handheld Raman spectrometer dedicated for fast raw materials identification and verification with optimal spectrum quality and an unrivalled bunch of features.

Dual Laser Excitation with SSE Fluorescence Mitigation

Bravo's automated switching between 785 nm and 852 nm lasers enables optimal Raman measurements, while SSE technology minimizes interference from sample fluorescence. This capability enhances performance on challenging materials and expands the application scope for the device.

Designed for Demanding Environments

With its IP65 protection rating and rugged plastic housing, the Bravo Handheld Raman Spectrometer functions reliably from -20C to +40C. The display is sunlight-readable, supporting accurate analysis even in outdoor or industrial settings, making it ideal for global field use.

Efficient Data Management and Connectivity

Bravo streamlines workflow with internal flash memory for 10,000+ spectra, export options (.csv, .txt, proprietary formats), and connectivity through USB 2.0 and Wi-Fi. Onboard software and Bruker OPUS ensure fast and flexible data evaluation and transmission.

FAQ's of Bruker Bravo Handheld Raman Spectrometer:

Q: How does the Bravo spectrometer mitigate fluorescence during Raman analysis?

A: Bravo uses SSE patented fluorescence mitigation technology, which allows automatic switching between 785 nm and 852 nm lasers to reduce fluorescence effects, ensuring more reliable spectral results across a broader range of samples.

Q: What is the process for exporting data from the Bravo device?

A: Spectral data collected with Bravo can be exported in .csv, .txt, or its proprietary file formats via onboard software, utilizing either USB 2.0 or Wi-Fi connection for flexible integration with laboratory data systems.

Q: When and where can Bravo be used for material identification?

A: Bravo is suitable for both laboratory and field environments, operating within a temperature range of -20C to +40C. Its IP65-rated rugged design enables dependable use in industrial, pharmaceutical, and outdoor settings, day or night.

Q: What types of materials and substances can Bravo identify or verify?

A: Bravo is capable of identifying, verifying, and authenticating a wide variety of chemicals, pharmaceuticals, and raw materials, especially those prone to fluorescence, thanks to its dual-wavelength excitation and on-board material library.

Q: How long can Bravo be used continuously before recharging?

A: Bravo offers more than 8 hours of continuous operation on a single charge, powered by a 7.4 V, 6.6 Ah lithium-ion battery. It requires approximately 4 hours to fully recharge, supporting extended field missions and routine laboratory use.

Q: What sampling accessories are available with Bravo and how do they benefit analysis?

A: Bravo comes standard with a vial holder and offers optional immersion probes, enabling flexible sample analysis. These accessories support a variety of sample types, enhancing the device's adaptability for different measurement scenarios.
