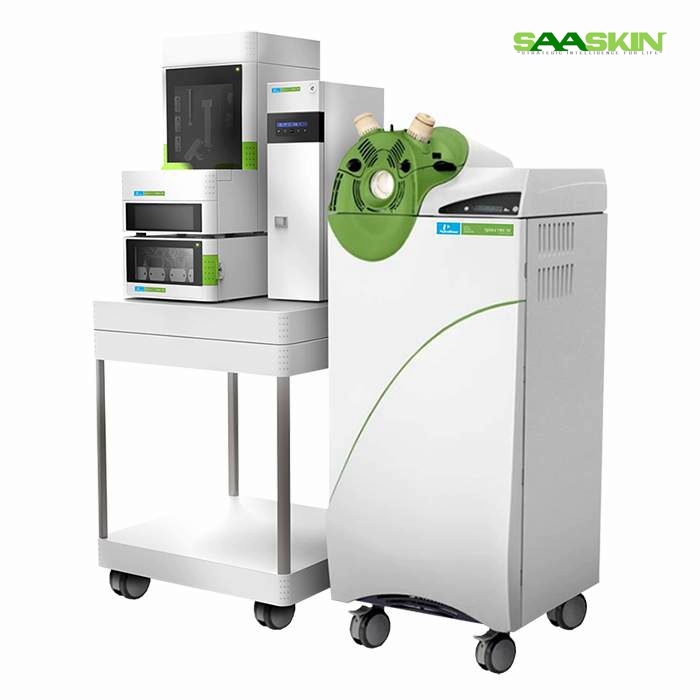

PerkinElmer QSight 110 LC/MS/MS System

Get a Price/Quote

Product Details:

Temperature Range Ambient to 40C (autosampler); source up to 600C
Core Components Triple quadrupole mass spectrometer, vacuum system, autosampler, HPLC, data system
Capacity Up to 600 samples (via autosampler)
Model No QSight 110
Frequency 50/60 Hz
Feature Ultra-high sensitivity, low maintenance, dual-source design, continuous flow mode
Accuracy High accuracy; ppt-ppb detection limits depending on method
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer QSight 110 LC/MS/MS System Price And Quantity

PerkinElmer QSight 110 LC/MS/MS System Product Specifications

Equipment Materials Stainless steel, high-impact polymer, anodized aluminum
Voltage 230 V AC
Display Type Integrated digital touchscreen interface
Accuracy High accuracy; ppt-ppb detection limits depending on method
Measurement Range fg/mL to g/mL depending on method
Feature Ultra-high sensitivity, low maintenance, dual-source design, continuous flow mode
Power Source Electrical
Automation Grade Fully Automated
Weight Approx. 150 kg
Temperature Range Ambient to 40C (autosampler); source up to 600C
Type Liquid Chromatography Tandem Mass Spectrometry System
Frequency 50/60 Hz
Model No QSight 110
Capacity Up to 600 samples (via autosampler)
Usage Quantitative and qualitative LC/MS/MS analyses for pharmaceutical, environmental, food, clinical, and chemical applications
Dimension (L*W*H) 96 cm x 66 cm x 61 cm
Core Components Triple quadrupole mass spectrometer, vacuum system, autosampler, HPLC, data system

Source Gases Required Nitrogen, Argon (for CID)
Mass Range 10 2000 m/z
Operating Humidity 20%80% relative humidity
Dynamic Range >6 orders of magnitude
Noise Level Low, lab-compliant
Regulatory Compliance CE, cULus certified
Software QSight Software Environment with Quantitation modules
Data Acquisition MRM, Full Scan, Product Ion Scan, Precursor Ion Scan
Polarity Switching Fast, in <20 ms
Sample Introduction Direct injection, autosampler
Peak Capacity High, suitable for complex sample matrices
Ionization Modes ESI (Electrospray Ionization), APCI (Atmospheric Pressure Chemical Ionization)
Quadrupole Type Triple quadrupole
Throughput High-throughput screening capability
Interface USB, LAN connection

Product Description

Brand PerkinElmer

Model QSight 110

Capacity Patented flow-based technology

CAT No BC003265

Application Chromatography

With the PerkinElmer QSight Triple Quad LC/MS/MS labs can test for the most challenging samples with maximized uptime and confidence. The unique dual-source configuration enables high-throughput labs to collect data in two complementary modes, maximizing the output from a single injection. Combined with the StayClean technology dramatically reduced source cleaning and maintenance, translating into higher productivity and high ROI. Running on the PerkinElmer Simplicity 3Q Software, the PerkinElmer QSight Triple Quad LC/MS/MS is easy-to-learn and use and it is a complete solution streamlining the complete workflow, from validated method development to data reporting.

Advanced Ionization and Sensitivity

The QSight 110 employs both Electrospray Ionization (ESI) and Atmospheric Pressure Chemical Ionization (APCI), broadening its compatibility with diverse sample types. Its ultra-high sensitivity enables detection down to fg/mL, making it suitable for trace-level quantitation even in demanding applications such as pharmaceutical and environmental testing.

Efficient Automation and High Throughput

Engineered for laboratories handling large sample volumes, the system accommodates up to 600 samples through its autosampler and supports direct injection. This high-throughput capability, combined with fully automated workflows and the integrated QSight software environment, streamlines routine and complex analyses with minimal operator intervention.

Comprehensive Methodological Flexibility

With rapid polarity switching in under 20 ms, multiple scan modes (MRM, full scan, product and precursor ion scans), and a dynamic range over six orders of magnitude, the QSight 110 provides versatile analytical options. It processes complex matrices efficiently, delivering trustworthy results for both qualitative and quantitative workflows.

FAQ's of PerkinElmer QSight 110 LC/MS/MS System:

Q: How does the QSight 110 LC/MS/MS system accommodate different sample types?

A: The QSight 110 features dual ionization sources-ESI and APCI-allowing users to analyze a wide variety of compounds, from polar to non-polar, by selecting the appropriate ionization mode for optimal performance.

Q: What is the process for introducing samples into the QSight 110 system?

A: Samples can be introduced via direct injection or automatically through the integrated autosampler, which can handle up to 600 samples, enabling efficient batch processing for high-throughput laboratories.

Q: When is rapid polarity switching beneficial in LC/MS/MS analyses?

A: Rapid polarity switching, achieved in under 20 milliseconds in the QSight 110, is especially useful when analyzing compounds that ionize in both positive and negative modes within a single run, increasing throughput and efficiency.

Q: Where can the QSight 110 system be used?

A: Designed for flexibility, the QSight 110 is ideal for pharmaceutical, environmental, food, clinical, and chemical laboratories, particularly where high accuracy, sensitivity, and regulatory compliance (CE, cULus) are needed.

Q: What are the primary benefits of using QSight Software Environment with this system?

A: The QSight Software provides a user-friendly interface for data acquisition and analysis, featuring quantitation modules that simplify method setup, enhance data accuracy, and support compliance with laboratory standards.

Q: How does the QSight 110 ensure reliable performance for complex sample matrices?

A: Its triple quadrupole design, high dynamic range, high peak capacity, and advanced scan modes ensure accurate results and low noise, even when analyzing complex matrices often encountered in food safety or environmental testing.
