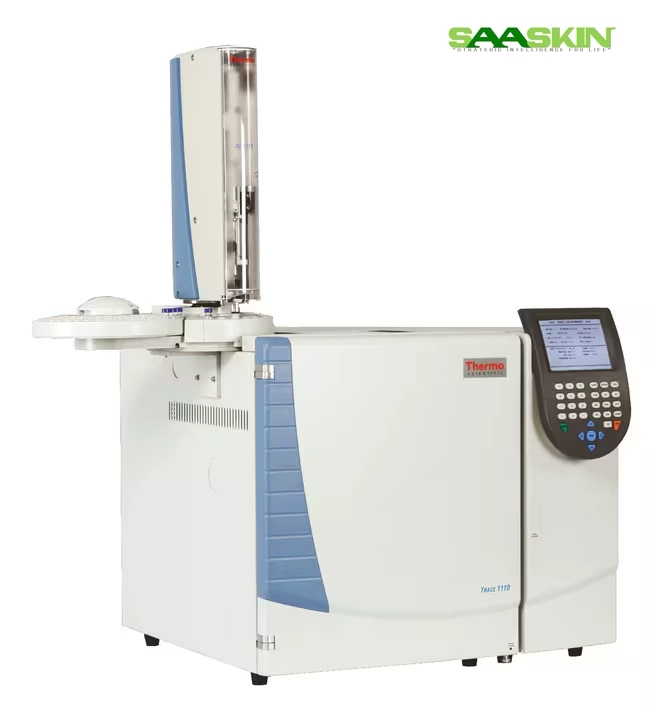

Thermo Scientific TRACE 1110 Gas Chromatograph

Thermo Scientific TRACE 1110 Gas Chromatograph

Get a Price/Quote

Product Details:

Temperature Range Oven operating from 35C to 450C
Accuracy Reproducibility < 0.01% RSD (retention time)
Model No TRACE 1110
Frequency 50/60 Hz
Capacity Up to 2 channels
Power Source Electric
Feature Modular design, Large oven capacity, Automated sampling
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific TRACE 1110 Gas Chromatograph Price And Quantity

Thermo Scientific TRACE 1110 Gas Chromatograph Product Specifications

Temperature Range Oven operating from 35C to 450C
Type Gas Chromatograph
Accuracy Reproducibility < 0.01% RSD (retention time)
Model No TRACE 1110
Frequency 50/60 Hz
Capacity Up to 2 channels
Dimension (L*W*H) 45 x 55 x 50 cm
Display Type Digital LCD
Power Source Electric
Feature Modular design, Large oven capacity, Automated sampling
Measurement Range ppm (parts per million) to percent level
Weight Approximately 40 kg
Usage Analytical laboratory application
Voltage 220-240 V
Equipment Materials Stainless Steel, Powder-coated metal
Core Components Detector, Oven, Injector, Electronic module
Automation Grade Fully automatic

Operating Environment Ambient 1035C; 2080% RH (non-condensing)
Detector Options FID (Flame Ionization Detector), TCD (Thermal Conductivity Detector), ECD (Electron Capture Detector), others selectable
Number of Injectors Up to 2
Carrier Gas Control Digital Pressure and Flow Control
Communication Interface USB, LAN, RS-232
Data System ChromQuest Data System compatible
Maximum Oven Temperature 450C
Safety Features Automatic over-temperature protection, Leak check warnings
Oven Ramp Rate Up to 120C/min
Gas Supply Required Hydrogen, Air, Nitrogen (depending on detector)
Noise Level < 1 pA for FID

Product Description

Brand Thermo Fisher Scientific

Model 1110

Capacity 3C to 450C

CAT No FPZ013201

Application Chromatography

The Thermo Scientific TRACE 1110 GC system is a multi-channel, high-performance, flexible, and robust gas chromatograph. This GC has the ability to run four injectors and four detectors simultaneously so you can now efficiently switch between different applications in minutes for the first time using a single GC. This robust GC has record high retention time and peak area reproducibility and is aligned with global standards. Advanced accessories offer customized solutions for all applications. With these winning qualities, the TRACE 1110 GC easily and effectively handles both routine and challenging applications. For India only.

Modular Design for Versatile Configurations

The TRACE 1110 Gas Chromatograph features a modular structure, allowing users to select from various detectors-including FID, TCD, and ECD-and combine up to two injectors. This adaptability gives laboratories the freedom to tailor the instrument for specific analytical tasks and workflows, effortlessly accommodating future upgrades or method changes.

Advanced Automation and Safety

Engineered for fully automatic operation, the TRACE 1110 streamlines sample analysis with automated sampling, digital pressure and flow control, and programmable oven temperature ramps. Enhanced safety elements, such as automatic over-temperature protection and leak warnings, help maintain instrument integrity and protect laboratory personnel.

Precision and Reliability in Analytical Performance

With a capacity to analyze concentrations from ppm to percent levels and outstanding reproducibility (<0.01% RSD in retention time), the TRACE 1110 delivers reliable quantitative results. Digital controls and a large oven capacity further support accuracy and throughput, making it ideal for demanding laboratory environments.

FAQ's of Thermo Scientific TRACE 1110 Gas Chromatograph:

Q: How does the TRACE 1110 Gas Chromatograph enhance laboratory workflow efficiency?

A: The TRACE 1110 streamlines workflows through full automation, modular component selection, and features like digital pressure and flow control. Automated sampling and seamless integration with ChromQuest Data System reduce manual intervention, ensuring rapid, accurate, and consistent results for various analytical tasks.

Q: What are the detector options available for the TRACE 1110, and how do I choose the right one?

A: This model supports multiple detectors including FID (Flame Ionization), TCD (Thermal Conductivity), ECD (Electron Capture), and more. Selection depends on your sample analysis needs: FID for hydrocarbons, TCD for general gases, and ECD for halogenated compounds. The modular design allows detector changes or upgrades as requirements evolve.

Q: When should I perform maintenance or safety checks on this gas chromatograph?

A: Routine maintenance is recommended according to the lab's sample throughput and usage patterns. Safety features like automatic over-temperature protection and leak check warnings will provide alerts when attention is needed. Regular inspection of gas supplies and electronic modules ensures optimal and safe performance.

Q: Where can the TRACE 1110 be installed and operated?

A: This instrument is suited for analytical laboratories in environments with ambient temperatures of 10-35C and non-condensing humidity between 20-80%. With its compact footprint (45 x 55 x 50 cm) and robust construction, it fits well on standard lab benches across research, quality control, and industrial settings in India and worldwide.

Q: What process controls ensure the accuracy and reproducibility of results?

A: The TRACE 1110 employs advanced digital pressure and flow controls, automated oven temperature programming, and stable detector signal processing. These features ensure excellent accuracy and reproducibility (<0.01% RSD retention time), irrespective of batch size or sample composition.

Q: How do I benefit from using the TRACE 1110 in analytical applications?

A: Users gain from rapid, high-precision analyses across a wide measurement range (ppm to percent level), versatility in detector configuration, large oven capacity, efficient data management, and strong automated safety protocols. This combination maximizes productivity and analytical confidence for complex sample types.
