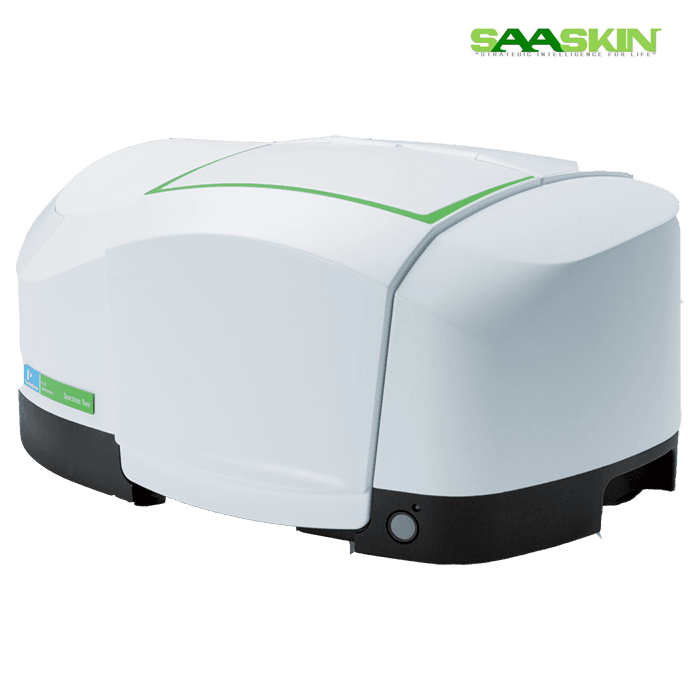

PerkinElmer Spectrum Two Nutraceutical & TCM System

PerkinElmer Spectrum Two Nutraceutical & TCM System

Get a Price/Quote

Product Details:

Accuracy 0.01 cm
Power Source AC power
Automation Grade Semi-automatic
Measurement Range 8,300350 cm
Model No Spectrum Two
Temperature Range Ambient to 150C
Voltage 100240 V AC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer Spectrum Two Nutraceutical & TCM System Price And Quantity

PerkinElmer Spectrum Two Nutraceutical & TCM System Product Specifications

Measurement Range 8,300350 cm
Weight ~14.5 kg
Automation Grade Semi-automatic
Dimension (L*W*H) 500 mm x 450 mm x 220 mm
Display Type Touchscreen digital display
Power Source AC power
Accuracy 0.01 cm
Frequency 50/60 Hz
Usage Nutraceutical & TCM (Traditional Chinese Medicine) analysis
Core Components FT-IR spectrometer, universal ATR, software suite
Feature Portable, high sensitivity, rapid sample scanning
Voltage 100240 V AC
Equipment Materials Metal & robust polymer housing
Temperature Range Ambient to 150C
Type FT-IR Spectrometer
Model No Spectrum Two

Spectral Resolution 0.5 cm (best) / standard: 1 cm
Connectivity USB, Ethernet
Light Source High energy long-life IR source
Software Compatibility Spectrum 10 software suite
Detector Type DTGS (Deuterated triglycine sulfate)
Scanning Speed Up to 2.5 spectra/sec
Humidity Range 2080% (non-condensing)
Data Output Multiple format export (PDF, CSV, SPC, XML)
Calibration Factory calibrated with validated standards
Operating Temperature 1535 C
Sample Compatibility Solids, liquids, powders

Product Description

Brand PerkinElmer

Model Spectrum Two

Capacity 8,300 350 cm-1

CAT No L160000W

Application Spectroscopy

Easy to use, powerful, compact and robust Spectrum Two is the FT-IR spectrometer of choice for everyone, everywhere. With fully integrated, robust universal sampling for trouble-free measurements and portability options, Spectrum Two is ideal for use in both laboratory and remote testing environments. Ideally suited to everyday analysis, you can confidently perform fast, accurate IR analysis and assure the quality of your materials across a wide range of applications. Choose the Spectrum Two + that combines a powerful industrial-grade touch screen with cloud connectivity to offer you maximum productivity.

Efficient Analysis in Nutraceutical and TCM Applications

Tailored for the analysis of nutraceutical products and Traditional Chinese Medicine, the Spectrum Two FT-IR spectrometer offers high sensitivity and rapid scanning. With its advanced DTGS detector and factory calibration, this system ensures accurate, reproducible results in compliance-focused workflows.

Portable and User-Friendly Design

Weighing roughly 14.5 kg and featuring a robust metal and polymer housing, the Spectrum Two can be used in diverse settings. The intuitive touchscreen interface and universal ATR facilitate straightforward operation and swift sample processing, even for users with minimal spectroscopic experience.

Broad Compatibility and Connectivity

Benefit from seamless integration with Spectrum 10 software and connectivity options like USB and Ethernet for streamlined data transfer. Multiple data export formats (PDF, CSV, SPC, XML) improve flexibility for reporting, regulatory submission, or further analysis.

FAQ's of PerkinElmer Spectrum Two Nutraceutical & TCM System:

Q: How is the Spectrum Two system used for nutraceutical and Traditional Chinese Medicine analysis?

A: The Spectrum Two is employed to measure and identify the chemical composition of nutraceutical and TCM samples, including solids, powders, and liquids. Its FT-IR technology provides detailed molecular fingerprinting, facilitating quality control and regulatory compliance.

Q: What are the benefits of using the Spectrum Two for laboratory and field work?

A: Its portable build, high sensitivity, rapid scanning, and robust sample compatibility make it ideal for both laboratory and on-site analysis. The factory-calibrated system delivers reliable, accurate results and is durable enough for demanding environments.

Q: When is calibration required for this instrument?

A: The Spectrum Two comes factory calibrated using validated standards and does not need frequent recalibration under normal use. However, periodic performance verification, as per lab protocols or regulatory guidelines, is recommended.

Q: Where can the Spectrum Two system be operated?

A: The system operates reliably in environments with temperatures between 15-35 C and humidity from 20-80% (non-condensing). Its robust housing and compact dimensions allow deployment in various laboratory or field settings.

Q: What process is involved in sample measurement?

A: Samples, whether solid, liquid, or powder, are placed on the universal ATR accessory. The system then scans to provide spectral data, which can be interpreted with the Spectrum 10 software for qualitative and quantitative analysis.

Q: How does the touchscreen digital display enhance user experience?

A: The touchscreen display enables intuitive control over instrument settings, scanning, and data management, minimizing training requirements and streamlining workflow.
