Roche BenchMark ULTRA Stainer Module

Get a Price/Quote

Product Details:

Material High-Grade Stainless Steel and Industrial Polymer
Condition Refurbished / Pre-Owned
Technology Automated IHC/ISH Staining System
Portable No
Disposable No
Wall Mounted No
Water Pressure Standard Laboratory Water Supply
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Roche BenchMark ULTRA Stainer Module Price And Quantity

Reagent Positions 36 reagent positions
Waste Handling Integrated waste fluid management system
Barcoding Integrated slide and reagent barcode readers
User Interface Intuitive touchscreen interface with workflow prompts
Compatible Reagents Roche ready-to-use antibodies, in-situ hybridization probes
Safety Features Error detection, reagent/fume containment, automated alerts
Sample Type Formalin-fixed, paraffin-embedded tissue sections
Operating Environment 15°C to 30°C, <80% relative humidity (non-condensing)
Temperature Control Active, independent oven control for each slide
Maximum Slide Capacity Up to 30 slides per run

Roche BenchMark ULTRA Stainer Module Product Specifications

Power Consumption Approx. 1200 VA
Display Type Touchscreen Color LCD
Internal Memory Integrated, allows case/sample storage
Real-Time Operation Yes
Size 152.4 cm (W) x 76.2 cm (D) x 73.7 cm (H)
Power Source Mains Power Supply
Operating Type Fully Automated
Water Pressure Standard Laboratory Water Supply
Voltage 100-240 VAC, 50/60Hz
Software Detail BenchMark ULTRA software interface
Noise Level <70 dB(A)
Color White/Grey
Usage Histopathology & Immunohistochemistry (IHC/ISH)
Data Transmission Mode LAN/Ethernet connectivity
Condition Refurbished / Pre-Owned
Wall Mounted No
Resolution 1024 x 768 pixels
Attributes High-throughput, fully automated, random access, continuous loading
Portable No
Technology Automated IHC/ISH Staining System
Disposable No
Synchronize With Laboratory LIS/HIS
Material High-Grade Stainless Steel and Industrial Polymer
Weight ~180 kg

Reagent Positions 36 reagent positions
Waste Handling Integrated waste fluid management system
Barcoding Integrated slide and reagent barcode readers
User Interface Intuitive touchscreen interface with workflow prompts
Compatible Reagents Roche ready-to-use antibodies, in-situ hybridization probes
Safety Features Error detection, reagent/fume containment, automated alerts
Sample Type Formalin-fixed, paraffin-embedded tissue sections
Operating Environment 15°C to 30°C, <80% relative humidity (non-condensing)
Temperature Control Active, independent oven control for each slide
Maximum Slide Capacity Up to 30 slides per run

Product Description

Brand Roche

Model BenchMark

Capacity 30 Slides

CAT No 05342716001

Application Histology

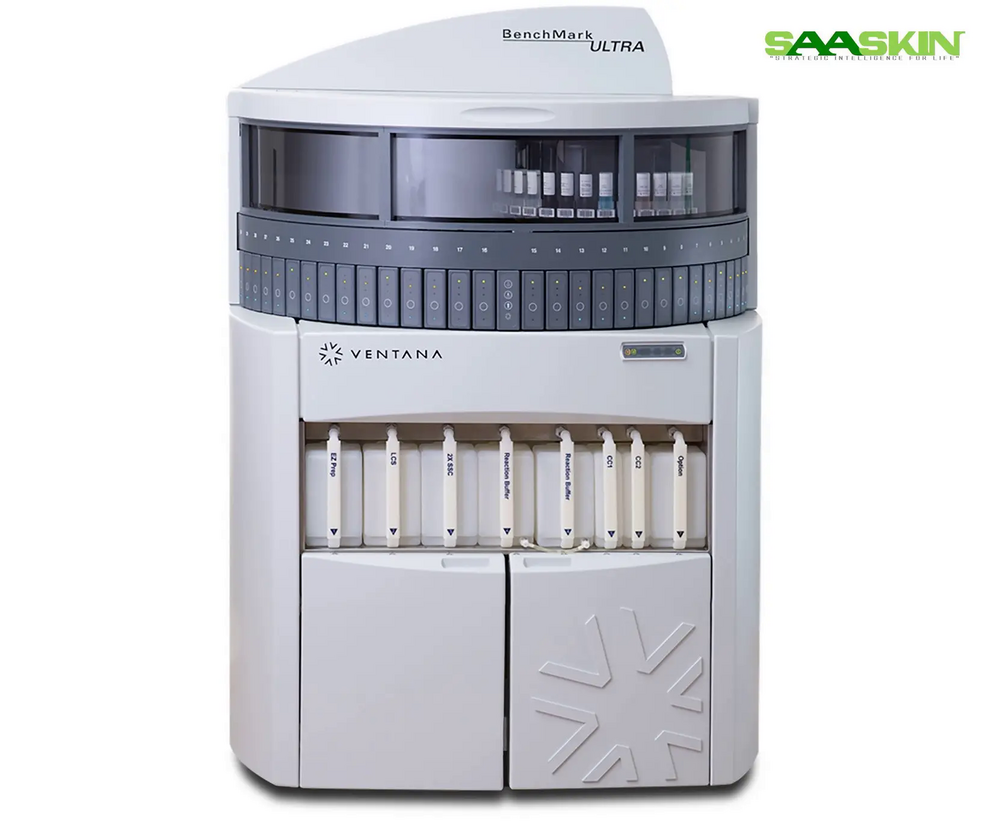

The BenchMark ULTRA system is Roche Tissue Diagnostics most innovative, fully automated immunohistochemistry and in situ hybridization slide staining system. It offers multiple features designed to deliver diagnostic confidence to histopathology laboratories worldwide. The most notable are the individual slide drawers that support single piece workflow and a broad menu of over 250 ready-to-use assays.

High-Throughput Automation for Pathology Labs

Engineered for efficiency, the BenchMark ULTRA Stainer Module can process up to 30 slides simultaneously, supporting continuous loading for demanding laboratory environments. Its random-access capability and 36 reagent positions enable flexible workflow integration, minimizing downtime and maximizing productivity.

Advanced Safety and Reliability Features

With integrated error detection, reagent and fume containment, and automated alerts, this system prioritizes user safety. The intuitive touchscreen interface offers clear workflow prompts, while active temperature control for each slide ensures precise and reliable staining results every time.

Seamless Data Integration and Traceability

Equipped with built-in barcode readers for both slides and reagents, the system supports traceable operations and error reduction. Its connectivity options, including LAN/Ethernet, facilitate integration with other machines and LIS/HIS systems, ensuring streamlined laboratory data management.

FAQ's of Roche BenchMark ULTRA Stainer Module:

Q: How does the BenchMark ULTRA Stainer Module optimize slide staining workflows?

A: This system automates the entire staining process, handling up to 30 slides at once with random access and continuous loading. Its touchscreen interface provides workflow prompts, reducing manual steps and improving throughput for histopathology and immunohistochemistry applications.

Q: What types of samples can be processed using this stainer?

A: The BenchMark ULTRA Stainer Module is designed to process formalin-fixed, paraffin-embedded (FFPE) tissue sections, making it ideal for use in routine clinical pathology as well as research laboratories.

Q: When does the system alert users to errors or issues during operations?

A: The module is equipped with real-time error detection and automated alerts. Users are promptly notified via the touchscreen display if there are reagent shortages, fume containment issues, or operational errors, ensuring timely intervention and sample integrity.

Q: Where can the BenchMark ULTRA Stainer Module be installed in a laboratory?

A: It is suitable for standard laboratory environments with a temperature range of 15C to 30C and relative humidity below 80%. Installation requires access to mains power, standard laboratory water supply, and available LAN/Ethernet for connectivity.

Q: What are the benefits of using integrated slide and reagent barcode readers?

A: The barcode readers ensure traceability and precise identification of all samples and reagents. This reduces errors, maintains accurate records, and enhances operational efficiency in laboratory workflows.

Q: How is waste managed during the staining process?

A: The unit features an integrated waste fluid management system, ensuring safe and efficient disposal of waste fluids. This system supports laboratory safety and regulatory compliance.

Q: What reagents are compatible with this stainer?

A: It is compatible with Roche ready-to-use antibodies and in-situ hybridization probes, offering high flexibility for IHC and ISH staining procedures.
