Mettler Toledo Dropping Point System DP90

Mettler Toledo Dropping Point System DP90

Get a Price/Quote

Product Details:

Frequency 50/60 Hz
Voltage 100240 V AC
Model No DP90
Accuracy 0.2 C
Automation Grade Automatic
Core Components Heater, camera, temperature sensor, display unit
Feature Automatic video detection, rapid heating and cooling
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Dropping Point System DP90 Price And Quantity

Standards Compliance Conforms to ASTM D3954, D566, ISO 4625, Ph. Eur., USP, DIN standards
Heating Rate Selectable: 120C/min
Cooling Time Rapid cooling in approx. 8 minutes from 400C to 50C
Interface USB, Ethernet
Language Support Multiple language options for touch interface
Ambient Operating Conditions 1535C, max. 80% relative humidity (non-condensing)
Camera Integrated high-resolution image sensors for automatic detection
Data Storage Internal memory for up to 1000 measurements
Accessories Included Capillaries, printer option, cooling device
Sample Identification Barcode and sample ID capability

Mettler Toledo Dropping Point System DP90 Product Specifications

Type Dropping Point System
Usage Laboratory determination of dropping/melting points
Automation Grade Automatic
Accuracy 0.2 C
Feature Automatic video detection, rapid heating and cooling
Dimension (L*W*H) 170 x 465 x 175 mm
Core Components Heater, camera, temperature sensor, display unit
Voltage 100240 V AC
Frequency 50/60 Hz
Model No DP90
Power Source Mains Powered (AC)
Temperature Range Ambient to 400C
Measurement Range 10400C
Equipment Materials High-quality steel and chemical-resistant plastics
Capacity 2 sample positions per run
Display Type LED color touch screen
Weight Approx. 6.8 kg

Standards Compliance Conforms to ASTM D3954, D566, ISO 4625, Ph. Eur., USP, DIN standards
Heating Rate Selectable: 120C/min
Cooling Time Rapid cooling in approx. 8 minutes from 400C to 50C
Interface USB, Ethernet
Language Support Multiple language options for touch interface
Ambient Operating Conditions 1535C, max. 80% relative humidity (non-condensing)
Camera Integrated high-resolution image sensors for automatic detection
Data Storage Internal memory for up to 1000 measurements
Accessories Included Capillaries, printer option, cooling device
Sample Identification Barcode and sample ID capability

Product Description

Brand

Mettler Toledo

Model

DP 90

Capacity

-20 400C (external cooling required)

CAT No

30578109

Application

Thermal Analysis

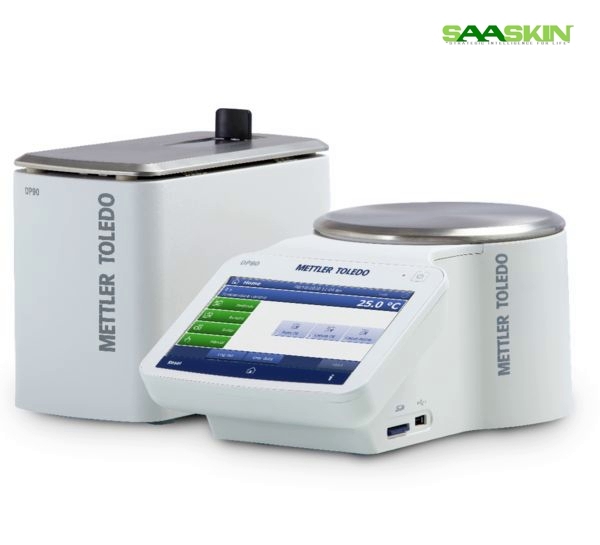

The DP90 offers simultaneous dropping and softening point determination of two samples from 20C to 400C. It consists of a control unit and a separate measuring cell that can be placed in a refrigerator or deep freezer.

Automatic Video Detection and Accurate Measurement

Equipped with integrated high-resolution image sensors, the DP90 performs automatic and precise detection of sample drop points. The advanced temperature sensor delivers accurate measurements (0.2C), while automatic video detection minimizes user intervention and enhances reliability.

User-Friendly Interface and Advanced Connectivity

The LED color touchscreen offers intuitive operation in multiple languages, making it suitable for diverse laboratory environments. With USB and Ethernet ports, users can seamlessly export data, connect accessories, and streamline workflow. Barcode and sample ID features support traceability.

Rapid Heating, Cooling, and High Sample Throughput

Selectable heating rates and rapid cooling (from 400C to 50C in about 8 minutes) enable high throughput and efficiency. The system holds two samples simultaneously, optimizing productivity for research and quality control labs.

FAQ's of Mettler Toledo Dropping Point System DP90:

Q: How does the DP90 Dropping Point System automatically detect the sample's dropping point?

A: The DP90 uses integrated high-resolution image sensors and video technology to automatically identify the precise moment the sample drops, ensuring consistent and objective measurement without manual observation.

Q: What standards does the DP90 conform to for laboratory measurements?

A: The DP90 complies with several international standards, including ASTM D3954, D566, ISO 4625, Ph. Eur., USP, and DIN, making it suitable for regulated laboratory environments and ensuring reliable, traceable results.

Q: When is the DP90 recommended for use in the laboratory?

A: The DP90 is ideal when accurate determination of dropping or melting points is required, particularly in quality control, research, or formulation studies. It is suitable for laboratories involved in pharmaceuticals, chemicals, cosmetics, or food industries.

Q: Where can the DP90 Dropping Point System be installed and operated?

A: The DP90 should be installed in ambient conditions ranging from 15-35C, with a maximum relative humidity of 80% (non-condensing). Compact in size (170 x 465 x 175 mm), it fits on standard laboratory benches.

Q: What accessories are included with the DP90 system?

A: The DP90 comes with essential accessories such as capillaries, a cooling device, printer option, and barcode scanner support. These enhance sample handling, identification, and data management during measurements.

Q: How is the measurement data stored and exported from the DP90?

A: The DP90 features internal memory capable of saving up to 1,000 measurement results, which can be exported via USB or Ethernet connections for further analysis or documentation.

Q: What are the benefits of using the DP90 Dropping Point System?

A: Key benefits include automated, rapid, and accurate measurement, compliance with global standards, multi-language operation, efficient data storage/export options, and accessories that streamline workflow and increase traceability.
