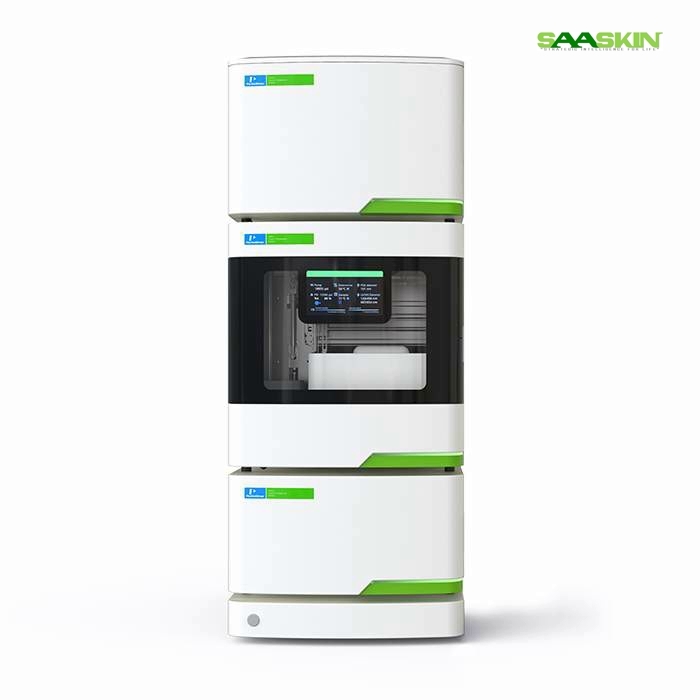

PerkinElmer LC 300 HPLC and UHPLC Systems

PerkinElmer LC 300 HPLC and UHPLC Systems

Get a Price/Quote

Product Details:

Temperature Range Column oven: Ambient +5C to 80C; Autosampler: 4C to Ambient
Feature High Pressure UHPLC (up to 18,000 psi), Automated Diagnostics, Leak Detection, RFID tracking, Flow Cell Optimization
Automation Grade Fully automatic
Measurement Range UV-Vis detector: 190700 nm; Fluorescence (optional): 200900 nm
Frequency 50/60 Hz
Core Components Pumps, Autosampler, Detector, Column Oven, Control & Touchscreen Interface
Voltage 100240 V AC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer LC 300 HPLC and UHPLC Systems Price And Quantity

PerkinElmer LC 300 HPLC and UHPLC Systems Product Specifications

Measurement Range UV-Vis detector: 190700 nm; Fluorescence (optional): 200900 nm
Automation Grade Fully automatic
Temperature Range Column oven: Ambient +5C to 80C; Autosampler: 4C to Ambient
Feature High Pressure UHPLC (up to 18,000 psi), Automated Diagnostics, Leak Detection, RFID tracking, Flow Cell Optimization
Voltage 100240 V AC
Type Modular HPLC & UHPLC System
Usage Analytical separation and quantitation in pharmaceuticals, environmental testing, food & beverage, academia, and petrochemical applications
Core Components Pumps, Autosampler, Detector, Column Oven, Control & Touchscreen Interface
Frequency 50/60 Hz
Display Type 10-inch capacitive touchscreen display
Weight Approximately 3050 kg (depending on configuration)
Capacity Supports up to 4 solvent lines; Autosampler capacity up to 240 samples (with multiple trays)
Dimension (L*W*H) ~500 x 450 x 600 mm (modular setup, varies per configuration)
Equipment Materials Stainless steel, PEEK, inert polymeric materials
Power Source AC Mains
Model No PerkinElmer LC 300
Accuracy Flow accuracy 1%; Injection volume accuracy <1% RSD (repeatability)

Degasser Capacity 4-channel advanced vacuum degasser
RFID Integration Column and solvent bottle RFID recognition for traceability
Software Compatibility SimplicityChrom Chromatography Data System, Waters Empower certified driver, and OpenLAB compatibility
Noise Level <60 dB
Injection Volume 0.1100 L (autosampler programmable); up to 2,000 L (manual loop option)
Communication Interfaces Ethernet, USB, RS-232
Leak Detection Integrated optical and conductivity-based sensors
Data Storage USB, LAN, and onboard storage options
Gradient Formation High-pressure binary/quaternary mixing
Max Operating Pressure up to 18,000 psi (1241 bar) for UHPLC configuration
Pump Flow Rate Range 0.0015.000 mL/min (standard); up to 5 mL/min (isocratic and gradient modes)
System Control Full system control via touchscreen or remote workstation
Detector Options Photodiode Array (PDA), UV/Vis, Fluorescence, Refractive Index, Conductivity (optional)

Product Description

Brand PerkinElmer

Model LC 300

Capacity 22 inches

CAT No N2550120

Application Chromatography

For laboratories looking to achieve the highest levels of versatility without compromising on productivity, PerkinElmer LC 300 HPLC and UHPLC Systems deliver the flexibility, performance, and efficiency you need for even the most challenging analytical demands. With fully customizable configurations and accessories, each LC 300 HPLC and UHPLC Systems is intuitive and designed to meet high-throughput lab requirements, with no additional burden on lab staff. PerkinElmer SimplicityChrom CDS Software manages the complete workflow and with the LC 300 HPLC and UHPLC Systems delivers an innovative user experience with intuitive functions and automated processes.

Advanced Detection and Versatile Analysis

The LC 300 supports a range of powerful detectors-including Photodiode Array (PDA), UV/Vis, Fluorescence, Refractive Index, and Conductivity (optional)-enabling broad analytical capabilities. Its advanced flow cell optimization and temperature control ensure precise, reproducible results across diverse applications.

Seamless Automation and Intelligent Software

With full automation, autosampler capacities up to 240 samples, RFID column and solvent identification, and touchscreen or remote workstation control, the LC 300 streamlines workflows. Data storage is facilitated by USB, LAN, and onboard options, and the system integrates smoothly with SimplicityChrom, Waters EmpowerTM, and OpenLAB chromatography data systems.

Robust Design for Demanding Workflows

Constructed from high-quality stainless steel, PEEK, and inert polymers, the LC 300 is durable and suitable for both routine and challenging separations. Integrated leak detection and automated diagnostics enhance user safety and instrument reliability, while the modular design supports future expansion.

FAQ's of PerkinElmer LC 300 HPLC and UHPLC Systems:

Q: How does the PerkinElmer LC 300 ensure accurate and reliable sample analysis?

A: The LC 300 features high-pressure operation up to 18,000 psi for UHPLC, precise flow accuracy within 1%, and autosampler injection reproducibility of <1% RSD. Integrated leak detection and automated diagnostics further guarantee reliable performance and sample integrity.

Q: What types of detectors are available for the LC 300 system?

A: Users can configure the LC 300 with Photodiode Array (PDA), UV/Vis, Fluorescence, Refractive Index, and optional Conductivity detectors, enabling it to address a wide array of analytical separation needs across different industries.

Q: When should I choose UHPLC mode over HPLC for my analyses?

A: UHPLC mode, available with operating pressures up to 18,000 psi, is ideal for high-resolution separations, rapid analysis, or when higher throughput is required. Standard HPLC is suitable for conventional methods where ultra-high pressure is not necessary.

Q: Where can the LC 300 system be integrated for laboratory use?

A: This system is suitable for integration into pharmaceutical, environmental, food and beverage, academic, and petrochemical laboratories, accommodating workflows that demand precision, flexibility, and automation.

Q: What processes are automated in the LC 300?

A: The LC 300 automates sample injection (up to 240 samples with trays), gradient formation with up to four solvents, column and solvent identification using RFID, and leak monitoring, reducing manual intervention and operator error.

Q: How does the system store and manage analytical data?

A: Analytical data can be stored using USB drives, onboard memory, or transmitted via LAN. It is also fully compatible with leading chromatography software-including SimplicityChrom, Waters EmpowerTM, and OpenLAB-for secure data management, analysis, and reporting.

Q: What are the main benefits of using the PerkinElmer LC 300 in analytical labs?

A: Benefits include high accuracy and repeatability, modular flexibility, broad detector selection, advanced automation, streamlined data management, enhanced traceability with RFID, and robust safety features, enabling increased productivity and reliable results across varied applications.
