Boditech AFIAS-3

Get a Price/Quote

Product Details:

Function Quantitative and qualitative immunoassay
Instruments Type Medical Diagnostic Analyzer
Accuracy High, per test parameter
Display Type Color LCD Touch Screen
Features Touch screen, Built-in printer, QR code reader, Automated process
Storage Instructions Keep dry, Avoid direct sunlight
Measurement Range Depends on test cartridge
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Boditech AFIAS-3 Price And Quantity

Operating Temperature 15C 30C
Result Time 3-15 minutes depending on test
Printer Type Thermal printer built-in
Maintenance Minimal, user-friendly
Languages Supported Multiple languages
Sample Type Whole blood, Serum, Plasma
Calibration Automatic via QR code
Humidity Range 10%90% RH (non-condensing)
Sample Volume 10-100 L (varies by test)
User Memory 500 results
Throughput Up to 3 tests simultaneously
Interface USB, RS-232

Boditech AFIAS-3 Product Specifications

Use Diagnostic Test Analysis
Storage Instructions Keep dry, Avoid direct sunlight
Measurement Range Depends on test cartridge
Real-Time Operation Yes
Operating Type Fully Automatic
Condition New
Usage Type Laboratory, Point-of-care
Equipment Type Immunoassay Analyzer
Function Quantitative and qualitative immunoassay
Voltage 100-240 V AC, 50/60 Hz
Material Plastic, Metal
Portable Yes
Instruments Type Medical Diagnostic Analyzer
Dimension (L*W*H) 286 mm x 249 mm x 278 mm
Accuracy High, per test parameter
Display Type Color LCD Touch Screen
Weight 6.1 kg
Features Touch screen, Built-in printer, QR code reader, Automated process
Noise Level <60 dB
Technology Fluorescent Immunoassay
Power Source Electric
Color White/Grey
Wall Mounted No
Power Consumption <70 VA

Operating Temperature 15C 30C
Result Time 3-15 minutes depending on test
Printer Type Thermal printer built-in
Maintenance Minimal, user-friendly
Languages Supported Multiple languages
Sample Type Whole blood, Serum, Plasma
Calibration Automatic via QR code
Humidity Range 10%90% RH (non-condensing)
Sample Volume 10-100 L (varies by test)
User Memory 500 results
Throughput Up to 3 tests simultaneously
Interface USB, RS-232

Product Description

Brand

Boditech

Model

AFIAS-3

Method

Fluorescence-based Lateral Flow Immunoassay

CAT No

AFIAS-3

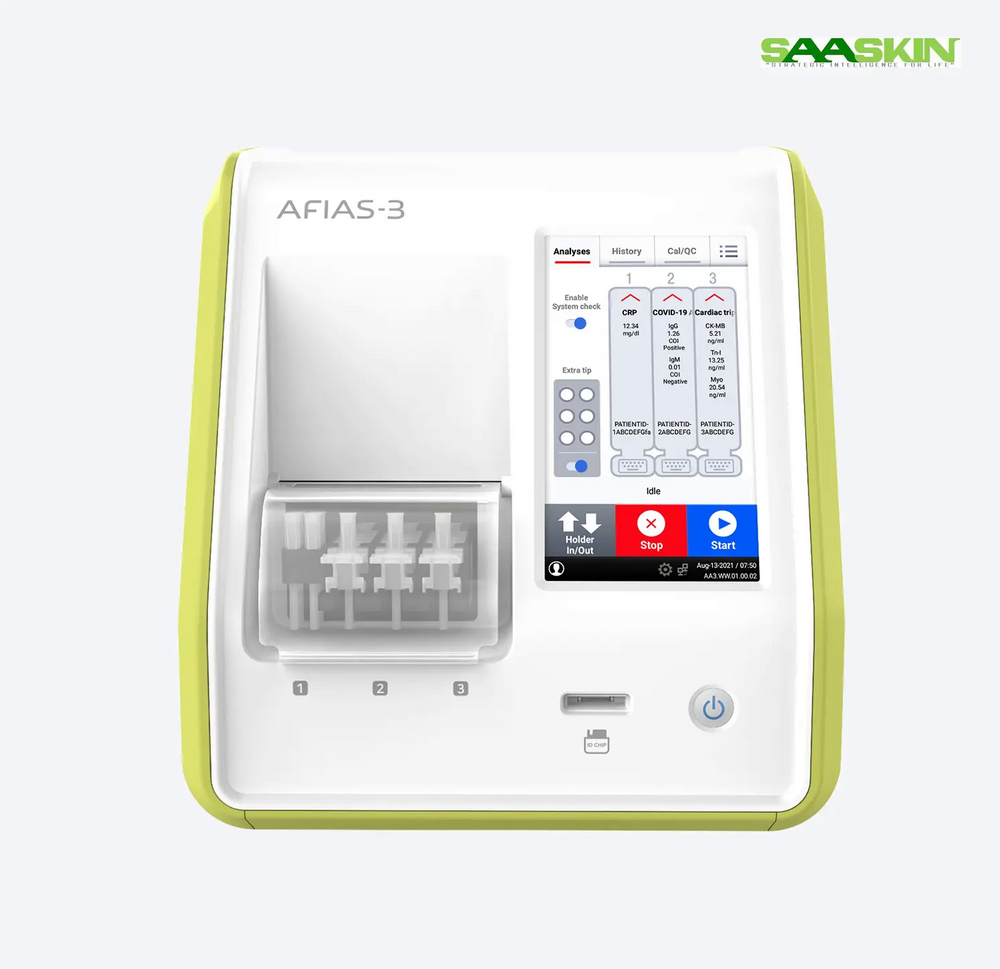

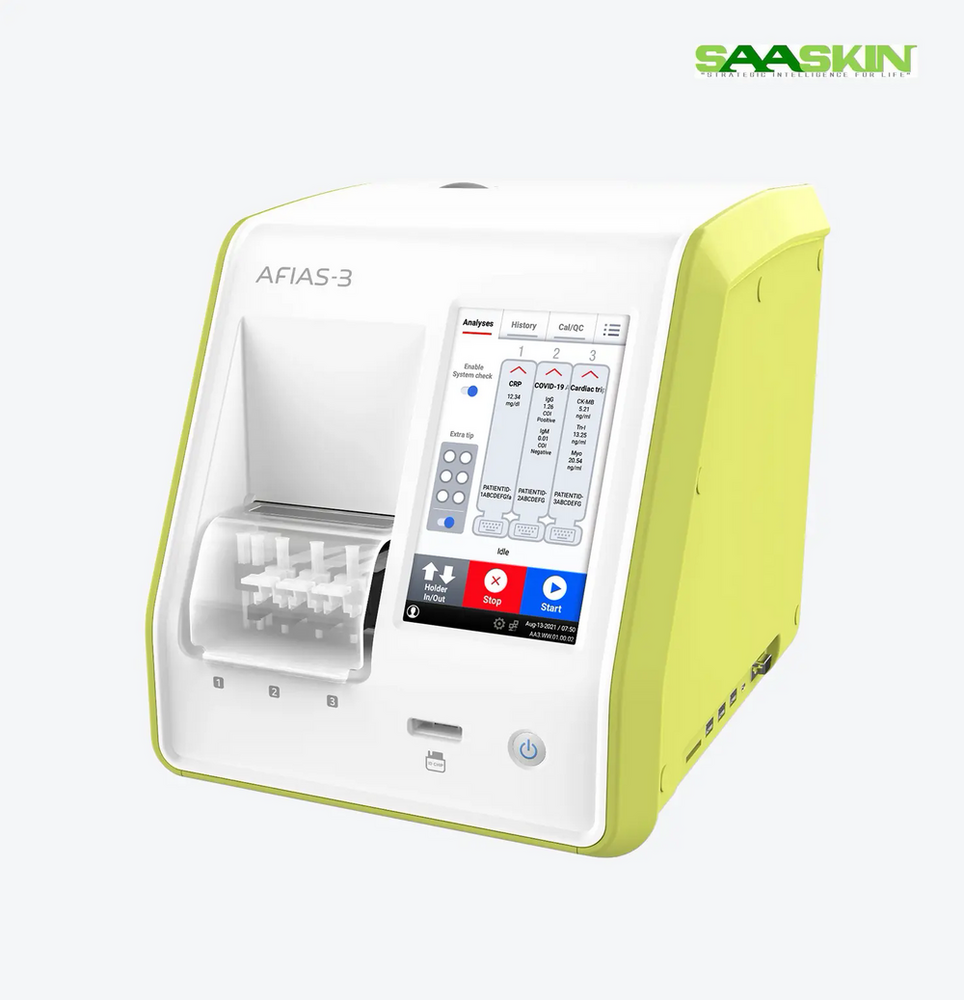

AFIAS-3 is a compact and versatile lateral flow immunoassay platform with three independent channels. AFIAS-3 enables three testing simultaneously therefore it can provide various panel testing such as cardiac, hormone, and inflammation testing. AFIAS-3 will be useful in places of small laboratories, medium hospitals, and private clinics with its versatility and user-convenience.

Efficient Multiplex Diagnostic Platform

The Boditech AFIAS-3 enables rapid, quantitative, and qualitative immunoassays with high accuracy. Able to run up to three tests at once, it maximizes throughput, reducing wait times in busy clinical settings. Its flexibility in accepting whole blood, serum, or plasma solidifies its value for diverse diagnostic workflows.

User-centric Design and Automation

With an intuitive color touch screen, built-in thermal printer, and automated QR code calibration, the AFIAS-3 streamlines diagnostic processes. Users benefit from a fully automatic system requiring minimal training, ensuring ease of use and consistency, even in demanding point-of-care scenarios.

Portable and Reliable for Various Settings

Weighing just 6.1 kg with a compact footprint, this analyzer is portable and suitable for laboratory benches or mobile diagnostic units. Its sturdy construction, wide operating temperature and humidity range, and low noise level (<60 dB) enable dependable performance across Indian healthcare facilities.

FAQ's of Boditech AFIAS-3:

Q: How does the Boditech AFIAS-3 analyzer perform calibration?

A: Calibration for the Boditech AFIAS-3 is conducted automatically using a QR code system. Each test cartridge contains a unique QR code that is scanned by the analyzer, ensuring precise and reliable calibration for every assay without the need for manual intervention.

Q: What types of samples are suitable for use with the AFIAS-3 analyzer?

A: The AFIAS-3 is compatible with whole blood, serum, and plasma samples. This versatility allows healthcare professionals to select the most appropriate sample type for various diagnostic needs and patient circumstances.

Q: When can results be expected after starting a test on the AFIAS-3?

A: Results from the AFIAS-3 analyzer are available within 3 to 15 minutes, depending on the specific test cartridge used. This rapid turnaround helps clinicians make timely decisions for patient care.

Q: Where can the Boditech AFIAS-3 be effectively deployed?

A: The AFIAS-3 is designed for both laboratory and point-of-care environments. Its portability and ease of use make it suitable for hospitals, clinics, mobile diagnostic units, and decentralized healthcare settings across India.

Q: What is the process for running a test on the AFIAS-3?

A: To run a test, simply select the assay on the touchscreen, insert the sample (10-100 L as specified by the test), scan the cartridge QR code for calibration, and initiate the process. Results are displayed on the color LCD and automatically printed via the built-in thermal printer.

Q: What benefits does the AFIAS-3 offer compared to conventional immunoassay analyzers?

A: The AFIAS-3 offers rapid, high-accuracy testing with minimal sample volume, automated operation, and simultaneous multi-test capability. Its compact size, touch screen interface, and built-in printer streamline workflows, while QR code calibration reduces user error, making it ideal for fast-paced healthcare settings.

Q: How should the Boditech AFIAS-3 be stored and maintained?

A: For optimal performance, store the analyzer in a dry environment away from direct sunlight. Maintenance is minimal, primarily involving routine cleaning and updates, ensuring ongoing reliability and efficiency.
