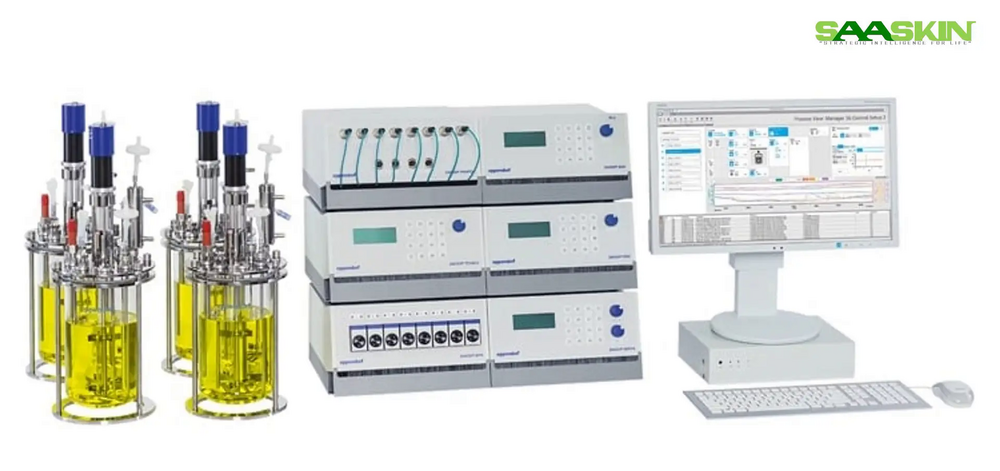

Eppendorf DASGIP Parallel Bioreactor System

Eppendorf DASGIP Parallel Bioreactor System

Get a Price/Quote

Product Details:

Power Typically 300500 W per module
Application Microbial, cell culture and fermentation processes
Operate Method Automated, Touchscreen interface, PC control
Usage Advanced parallel bioprocess development and optimization
Voltage 100240 V, 50/60 Hz
Color Silver/Black
Weight Approx. 25-40 kg (per module, depending on configuration)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Eppendorf DASGIP Parallel Bioreactor System Price And Quantity

Eppendorf DASGIP Parallel Bioreactor System Product Specifications

Classification Laboratory Equipment
Dimension (L*W*H) Variable, typically around 40 x 60 x 70 cm (per module)
Capacity Volume range per vessel typically 250 mL to 2 L
Material Stainless Steel, Glass, High-grade plastics
Color Silver/Black
Weight Approx. 25-40 kg (per module, depending on configuration)
Product Type Parallel Bioreactor System
Voltage 100240 V, 50/60 Hz
Usage Advanced parallel bioprocess development and optimization
Power Typically 300500 W per module
Operate Method Automated, Touchscreen interface, PC control
Application Microbial, cell culture and fermentation processes

Data Logging Comprehensive data acquisition and export options
Control Parameters pH, DO, temperature, agitation, feed/harvest, gas flow rates
Compatibility Compatible with single-use and glass vessel systems
Agitation Speed Up to 3000 rpm (with magnetic drive options)
Software DASware control and analysis suite
Gassing Module Multi-line gas mixing and flow control
Temperature Range Ambient to 60°C
Sterilization Method Autoclavable vessels
Number of Vessels Up to 16 parallel bioreactors (depending on configuration)
Integrated Pumps Peristaltic pumps for feed, harvest, and sampling

Product Description

Brand Eppendorf

Model MP8

Capacity 50 sL/h

CAT No. 76DG04CCBB

Application Bioprocess

The DASGIP Parallel Bioreactor System enables highly efficient process development by allowing precise control of critical process parameters, rapid comparison of numerous experimental conditions, and optimal utilization of all generated data.
a Parallel operation of up to 16 bioreactors saves time and space and improves reproducibility.
a Easily convertible from single-use to reusable bioreactors and vice versa.
a DASwareA software suite enables precise monitoring and control of critical process parameters, as well as the implementation of tailored feedback loops, feeding strategies and other features.
a Seamless integration with the Bioprocess Autosampler allows for automated sampling 24/7 to gain complete datasets.
a Connects to BioNsightA cloud software for remote process monitoring and simple, remote analysis of all data sets to make informed decisions.

Advanced Parallel Bioprocessing Capabilities

Designed for researchers and developers, the Eppendorf DASGIP Parallel Bioreactor System allows simultaneous operation of up to 16 bioreactors. Each module offers high parameter control, enabling efficient process development and optimization for a variety of bioprocesses, including microbial and cell culture applications.

Comprehensive Control and Automation

With user-friendly automation via touchscreen or PC, the system provides precise management of pH, temperature, dissolved oxygen, agitation, and gas flow. Integrated peristaltic pumps facilitate accurate liquid handling, while multi-line gas mixing supports advanced aeration strategies.

Versatile and Robust Design

The system accommodates both glass and single-use vessels, ensuring flexibility for various bioprocess needs. Constructed with stainless steel, glass, and high-grade plastics, each module is durable and autoclavable, promoting sterility and straightforward cleaning.

FAQ's of Eppendorf DASGIP Parallel Bioreactor System:

Q: How many bioreactors can be operated in parallel in the Eppendorf DASGIP system?

A: Depending on the chosen configuration, the DASGIP Parallel Bioreactor System can run up to 16 bioreactors simultaneously for efficient, high-throughput bioprocess development.

Q: What control parameters can be managed with this system?

A: The system provides advanced control over pH, dissolved oxygen (DO), temperature, agitation, feed/harvest rates, and multi-line gas flow, allowing precise process optimization.

Q: When is it best to use this system in laboratory workflows?

A: This bioreactor system is ideally used during advanced stage bioprocess development and optimization, including applications like microbial fermentation and cell culture.

Q: Where can this system be installed or operated?

A: The DASGIP Parallel Bioreactor System is designed for laboratory environments and is suitable for installation in research labs, bioprocessing development facilities, and academic institutions.

Q: What process and vessel options does the system support?

A: It supports microbial, cell culture, and fermentation processes using both autoclavable glass and single-use vessels, with a per-vessel capacity ranging from 250 mL to 2 L.

Q: How does the system facilitate data management?

A: Comprehensive data acquisition and export are available via the integrated logging features and the DASware suite, ensuring efficient process documentation and analysis.

Q: What are the key benefits of using the DASGIP Parallel Bioreactor System?

A: Key benefits include high throughput process optimization, flexible vessel compatibility, robust automation and control, comprehensive data handling, and suitability for a wide range of laboratory bioprocess applications.
