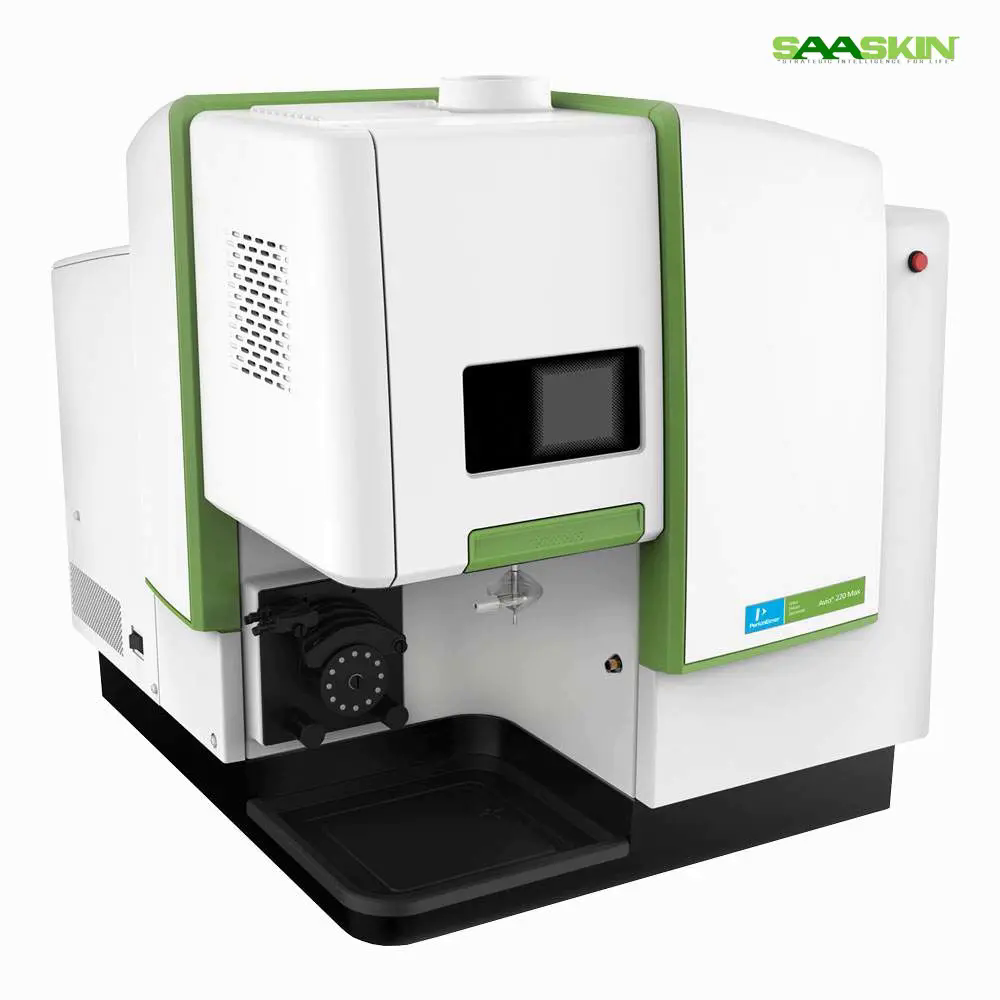

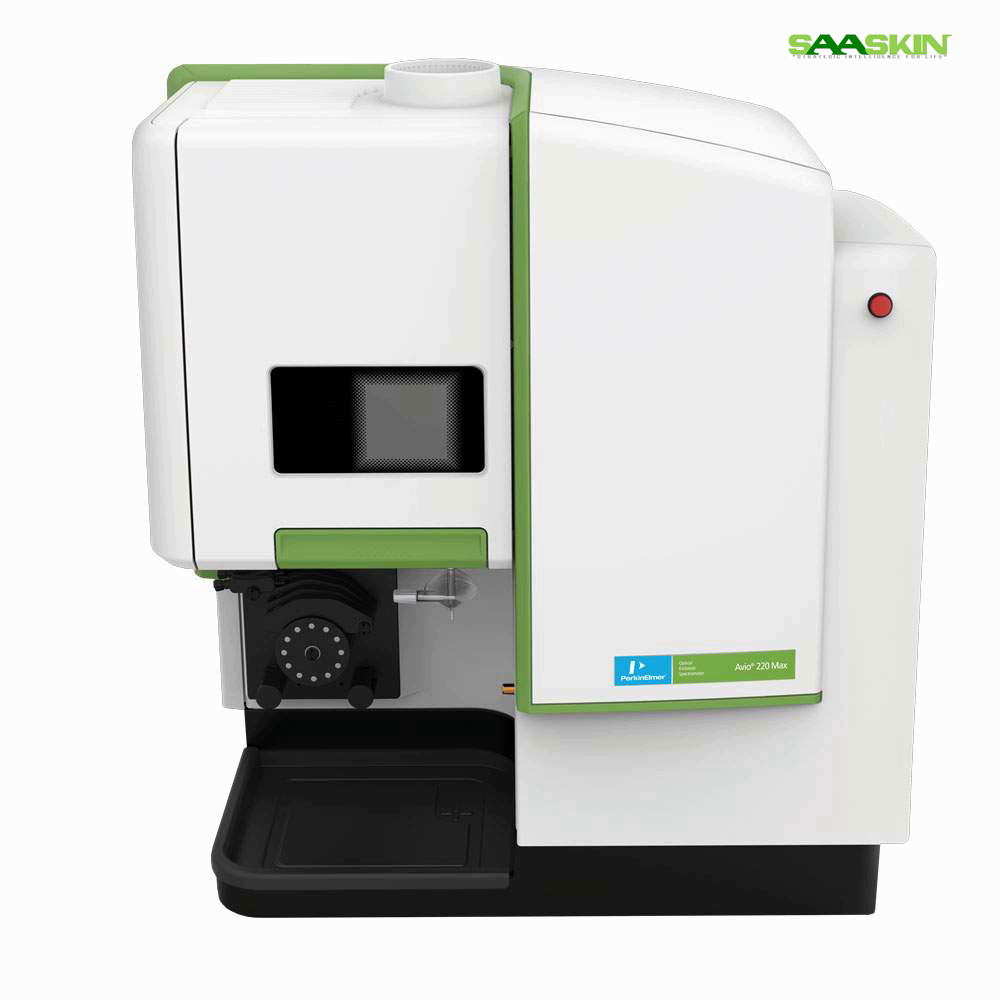

PerkinElmer Avio 220 Max ICP-OES Scott/Cross-Flow Configuration

PerkinElmer Avio 220 Max ICP-OES Scott/Cross-Flow Configuration

Get a Price/Quote

Product Details:

Measurement Range up to 104 elements (trace to percent levels)
Capacity Fully Automated, High Sample Throughput
Temperature Range Ambient to 40 C operating temperature
Accuracy Sub-ppm accuracy and precision for elemental detection
Power Source AC Line Power
Model No Avio 220 Max Scott/Cross-Flow
Core Components RF Generator, Torch Module, Optical System, Detector, Scott-Cross Flow Nebulizer
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

PerkinElmer Avio 220 Max ICP-OES Scott/Cross-Flow Configuration Price And Quantity

PerkinElmer Avio 220 Max ICP-OES Scott/Cross-Flow Configuration Product Specifications

Temperature Range Ambient to 40 C operating temperature
Weight Approximately 80 kg
Dimension (L*W*H) 69 cm 77 cm 61 cm
Accuracy Sub-ppm accuracy and precision for elemental detection
Power Source AC Line Power
Measurement Range up to 104 elements (trace to percent levels)
Display Type Integrated Touchscreen LCD and Computer Interface
Capacity Fully Automated, High Sample Throughput
Voltage 200240 V AC
Feature Scott/Cross-Flow configuration for enhanced robustness and versatility, compact design, advanced optics, extended dynamic range
Equipment Materials Corrosion-resistant materials, high-strength polymer, stainless steel, quartz torch
Automation Grade Fully Automatic
Frequency 50/60 Hz
Model No Avio 220 Max Scott/Cross-Flow
Usage Multi-elemental analysis of a wide range of sample types in environmental, food, industrial, and pharmaceutical laboratories
Type Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES)
Core Components RF Generator, Torch Module, Optical System, Detector, Scott-Cross Flow Nebulizer

Wavelength Range 165900 nm
Plasma Generator Output 1,300 W, solid state, maintenance-free RF generator
Cooling System Self-contained air-cooled (no external cooling required)
Nebulizer Type Scott Spray Chamber with High Precision Cross-Flow Nebulizer
Detection System CCD Array, simultaneous multi-element detection
Throughput >225 samples per hour
Compliance Meets US EPA 6010D, CLP, and EN methods
Sample Introduction System Fully demountable with inert and metal-free options
Safety Features Interlocked safety shields, automatic shutdown, user management controls
Data Handling/Software Syngistix for ICP software platform, LIMS compatibility
Startup Time <10 minutes to first sample measurement
Optics Echelle grating with proprietary optical design for high resolution and wide dynamic range

Product Description

Brand

PerkinElmer

Model

220

Capacity

Double-monochromator optical system

CAT No

N0790004

Application

Spectroscopy

The Avio 220 Max is a compact, hybrid simultaneous ICP-OES instrument, ideal for labs with low-to-medium throughput requirements. Its unique plug-and-play capabilities make the Avio 220 Max the ICP with the fastest startup on the market cold start to analysis in only 10 minutes saving you time and operating costs by allowing you to shut down the instrument between runs. Plus, it utilizes a vertical plasma and is engineered to handle even the most difficult, high-matrix samples without dilution, delivering productivity, performance and faster return on investment. And last but certainly not least, Syngistix for ICP software provides an intuitive and smart environment with smart monitoring for real-time instrument and sample diagnostics as well as results viewing to easily track sample analysis, quality control, and internal standard performance to guarantee sample accuracy.

Optimized Performance and Versatile Configuration

The Scott/Cross-Flow nebulizer and spray chamber combination in the Avio 220 Max ICP-OES ensures precise aerosol generation and sample delivery. This design offers enhanced robustness, making it suitable for diverse sample matrices, including corrosive or complex solutions. Its compact footprint and advanced optical system deliver exceptional resolution while maintaining high throughput and operational flexibility for busy laboratory settings.

Fast Startup and Automated Operation

With a startup time of less than 10 minutes, the Avio 220 Max allows users to quickly progress from instrument initialization to sample measurement. The fully automated system, paired with an intuitive touchscreen interface and SyngistixTM software, streamlines sample processing, automates routine tasks, and maximizes laboratory efficiency, supporting throughput higher than 225 samples per hour.

Reliable Data and Regulatory Compliance

Designed to meet compliance standards such as US EPA 6010D and CLP, the Avio 220 Max incorporates interlocked safety shields, automatic shutdown protocols, and user management controls. Data handling is streamlined through LIMS compatibility, ensuring secure and traceable results suited to regulatory environments. The use of durable, corrosion-resistant materials ensures consistent performance and minimal downtime.

FAQ's of PerkinElmer Avio 220 Max ICP-OES Scott/Cross-Flow Configuration:

Q: How does the Scott/Cross-Flow configuration benefit routine elemental analysis?

A: The Scott/Cross-Flow sample introduction system provides enhanced robustness and precision when handling challenging sample matrices. Its design minimizes clogging and maintains accuracy, making it suitable for routine analysis in laboratories that process a broad range of sample types, including those that are corrosive or particulate-laden.

Q: What sample throughput can be achieved with the Avio 220 Max ICP-OES?

A: The instrument supports high sample throughput of over 225 samples per hour thanks to its fully automated operation, fast startup time, and simultaneous multi-element detection via CCD array technology. This allows laboratories to handle large workloads efficiently without sacrificing data quality.

Q: When is it necessary to utilize the inert and metal-free sample introduction options?

A: Inert and metal-free options are recommended when analyzing highly reactive, acidic, or metal-sensitive samples to prevent contamination or interference. This is particularly important in applications such as pharmaceutical quality control or environmental trace analysis, where accuracy at sub-ppm levels is required.

Q: Where can the Avio 220 Max ICP-OES be installed in a laboratory, considering cooling and space requirements?

A: The Avio 220 Max is designed with a compact footprint (69 cm 77 cm 61 cm) and features a self-contained air-cooled system, eliminating the need for external cooling. It can be installed in most laboratory environments operating between ambient and 40C, ensuring easy integration into existing workspaces.

Q: What is the process for data management and software connectivity with this instrument?

A: Data acquisition and management are handled through the SyngistixTM for ICP software, which provides comprehensive instrument control and results management. The system is LIMS-compatible, allowing seamless data transfer, traceability, and compliance with industry standards and regulatory requirements.

Q: How does the Avio 220 Max ensure compliance and laboratory safety?

A: The instrument meets key regulatory methods including US EPA 6010D and CLP. It incorporates a range of safety features: interlocked shields secure user access during operation, automatic shutdown prevents hazard in emergencies, and user management controls restrict instrument access to authorized personnel.

Q: What are the main benefits of using the Avio 220 Max in multi-elemental analysis?

A: The Avio 220 Max combines speed, accuracy (sub-ppm levels), high sample throughput, regulatory compliance, and operational robustness. Its advanced optics, compact design, and flexible sample introduction system provide reliable and precise results across numerous laboratory disciplines, from environmental monitoring to pharmaceutical testing.
