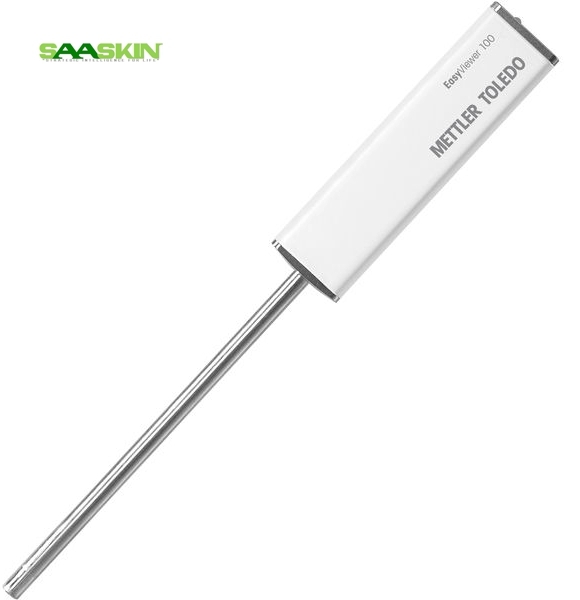

Mettler Toledo Analyzer EasyViewer 100 System
Mettler Toledo Analyzer EasyViewer 100 System Mettler Toledo Analyzer EasyViewer 100 System

Mettler Toledo Analyzer EasyViewer 100 System

Get a Price/Quote

Product Details:

  • Core Components Imaging Sensor, LED Illumination, Sapphire Probe
  • Frequency 50/60 Hz
  • Voltage 100-240 V AC
  • Power Source AC Mains
  • Automation Grade Semi-Automatic
  • Model No EasyViewer 100
  • Accuracy Micron-scale particle detection
  • Click to View more
Request to Call Back Send Inquiry
X

Mettler Toledo Analyzer EasyViewer 100 System Price And Quantity

Mettler Toledo Analyzer EasyViewer 100 System Product Specifications

  • 210 mm x 75 mm x 65 mm (probe head)
  • Imaging Sensor, LED Illumination, Sapphire Probe
  • 50/60 Hz
  • 100-240 V AC
  • AC Mains
  • Approx. 7 kg
  • In-situ particle and crystal size image analysis
  • Semi-Automatic
  • EasyViewer 100
  • Micron-scale particle detection
  • Process Analytical Technology (PAT) Analyzer
  • Typical 2 m to 2000 m
  • Chemical-resistant Stainless Steel and Sapphire
  • Up to 150C
  • Real-time high-resolution particle imaging, non-invasive probe design

Product Description

Brand                               Mettler Toledo

Model                               EasyViewer 100

Capacity                          20 to 135 C

CAT No                            14000210

Application                      Dust Monitor

EasyViewer 100 System Configuration. Capture high-resolution images of particles as they exist in situ, at previously unobtainable levels of detail, to reveal new insights for processes.




Advanced Imaging Capabilities

With a Full HD imaging sensor and LED illumination, the EasyViewer 100 provides clear, real-time images of particles and crystals, enabling researchers to monitor key process characteristics with micron-scale accuracy. Its cutting-edge optics and robust materials make it suitable for demanding analytical tasks.


Flexible Integration and Compatibility

The system can be effortlessly integrated into lab, pilot, or production reactors using standard flange or clamp connection. Its USB and Ethernet interfaces enable seamless connection to data systems, while the iC Vision software offers intuitive data capture, analysis, and export.


Easy Maintenance and Robust Construction

The probe's sapphire window and 316L stainless steel wetted parts ensure chemical resistance and longevity. The EasyViewer 100 is designed for quick, in-situ cleaning, contributing to minimal downtime and maintaining high measurement reliability even in harsh process environments.

FAQ's of Mettler Toledo Analyzer EasyViewer 100 System:


Q: How is the Mettler Toledo EasyViewer 100 used for in-situ particle analysis?

A: The EasyViewer 100 System is mounted directly into lab, pilot, or production reactors using its standard flange or clamp connection. Once installed, it captures high-resolution images of particles directly in process, providing real-time size and morphology data without removing samples.

Q: What types of processes can the EasyViewer 100 analyze effectively?

A: It is designed for monitoring crystallization, precipitation, emulsification, and suspension processes. Its robust imaging and real-time data output make it suitable for use in laboratory, pilot plant, and full production process environments.

Q: When should in situ cleaning be performed on the EasyViewer 100 probe?

A: In situ cleaning should be performed whenever there's visible fouling or after prolonged use in processes that can cause build-up on the sapphire window. The easy-to-clean probe design allows maintenance without disassembling the system, ensuring optimal image quality and instrument longevity.

Q: Where can the EasyViewer 100 be installed?

A: The EasyViewer 100 can be installed in a wide variety of reactor setups, including laboratory reactors, pilot scale vessels, and industrial production reactors. Its flange or clamp connection and compatibility with various process environments (up to 20 bar and 150C) make it highly versatile.

Q: What are the main benefits of using the EasyViewer 100 System?

A: Users benefit from real-time, non-invasive monitoring of particle and crystal size and morphology. The system's high-resolution imaging and robust materials offer reliability, process optimization, reduced sampling time, and improved process control in chemically challenging environments.

Q: How does the iC Vision software enhance process monitoring?

A: The iC Vision software provides seamless data capture, advanced analysis, and visualization tools for particle imaging results. It simplifies workflow, automates reporting, and supports precise decision-making throughout development and manufacturing stages.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Life Sciences' category

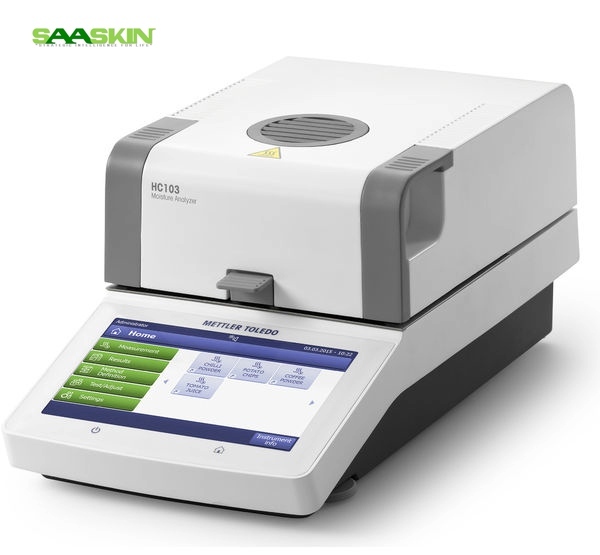

Mettler Toledo Halogen Moisture Analyzer HC103 (230V)
