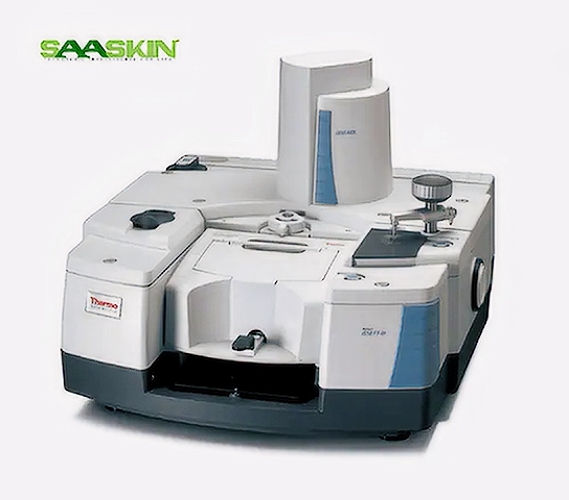

Thermo Scientific Nicolet iS50 FTIR Spectrometer

Thermo Scientific Nicolet iS50 FTIR Spectrometer

Get a Price/Quote

Product Details:

Temperature Range Ambient to 100 C (with appropriate accessories)
Accuracy Better than 0.01 cm (wavenumber precision)
Model No Nicolet iS50
Frequency 50/60 Hz
Capacity Single sample analysis, modular multi-sample capability
Feature Built-in ATR, Raman, and NIR module expandability; Autotune; OMNIC software
Power Source AC powered
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Scientific Nicolet iS50 FTIR Spectrometer Price And Quantity

Thermo Scientific Nicolet iS50 FTIR Spectrometer Product Specifications

Measurement Range 7,800 to 350 cm (mid/far IR)
Weight ~24 kg
Automation Grade Fully Automated
Core Components Optical bench, interferometer, detector, source, electronics
Equipment Materials High-quality corrosion-resistant alloys, precision optics
Usage Infrared spectroscopic analysis for materials, chemicals, polymers, and pharmaceuticals
Voltage 100240 V AC
Dimension (L*W*H) 60 x 51 x 28 cm
Capacity Single sample analysis, modular multi-sample capability
Feature Built-in ATR, Raman, and NIR module expandability; Autotune; OMNIC software
Power Source AC powered
Display Type High-resolution touchscreen color display
Model No Nicolet iS50
Accuracy Better than 0.01 cm (wavenumber precision)
Frequency 50/60 Hz
Temperature Range Ambient to 100 C (with appropriate accessories)
Type FTIR Spectrometer

Software OMNIC, OMNIC Paradigm, optional security suite
Compliance 21 CFR Part 11, GLP/GMP ready
Operating Environment 1530 C, non-condensing
Detector Types DTGS, MCT (optional)
Scan Speed Up to 2.5 spectra/second
Data Output USB, Ethernet, compatible with OMNIC software suite
Purge System Integrated with desiccant or purge gas capability
Spectral Resolution As high as 0.09 cm
Optical Configuration Permanently aligned, laser-based system
Number of Sample Compartments Expandable/sample automation optional
Light Source Long-life IR source, optional NIR and Raman modules
Beam Splitter KBr/Ge coated
Noise Level <20 pV/Hz (RMS at signal peak)
Wavelength Accuracy Better than 0.01 cm
Laser HeNe laser for calibration and alignment

Product Description

Brand Thermo Fisher Scientific

Model Nicolet

Capacity 15 to 27,000 cm-1

CAT No 912A0760

Application Spectroscopy

The Nicolet iS50 FTIR Spectrometer can be upgraded from a simple FTIR bench to a fully-automated multi-spectral range system that can acquire spectra from far-infrared to visible. You can initiate novel ATR, Raman and NIR modules at the touch of a button, enabling access to these techniques without manually changing system components.

Advanced Performance and Precision

With spectral resolution as high as 0.09 cm1 and wavenumber accuracy better than 0.01 cm1, the Nicolet iS50 ensures highly reliable and reproducible results. Its laser-aligned optical configuration and KBr/Ge-coated beam splitter minimize maintenance needs and maximize uptime, supporting demanding analytical tasks across multiple industries.

Flexible and Modular Design

The spectrometer is designed for versatility, featuring built-in capability for Attenuated Total Reflectance (ATR), as well as optional NIR and Raman modules. The modular sample compartment is expandable, supporting automation and multi-sample workflows for increased throughput. Accessories such as temperature-controlled cells further enhance analytical flexibility.

Intuitive Operation and Compliance

A high-resolution touchscreen provides user-friendly control, while OMNIC and OMNIC Paradigm software streamline data collection, processing, and report generation. The system meets 21 CFR Part 11, GLP, and GMP standards, making it ideal for laboratories requiring secure, traceable, and compliant workflows.

FAQ's of Thermo Scientific Nicolet iS50 FTIR Spectrometer:

Q: How does the Nicolet iS50 FTIR Spectrometer improve laboratory efficiency?

A: The Nicolet iS50 automates calibration and alignment with a permanent laser-based optical system and autotune features, significantly reducing setup time. Its modular design allows quick adaptation for multiple applications, while automated sample handling and OMNIC software streamline analysis and reporting, enhancing overall laboratory productivity.

Q: What types of samples and industries is this spectrometer suited for?

A: It is designed for a wide range of samples, including solids, liquids, powders, and films. Typical applications span materials research, chemicals, polymers, and pharmaceuticals, making it suitable for QC, R&D, and regulated environments such as those adhering to 21 CFR Part 11, GLP, and GMP.

Q: When should I consider the optional MCT detector?

A: The optional Mercury Cadmium Telluride (MCT) detector provides enhanced sensitivity and faster scan speeds compared to the standard DTGS detector. It is recommended for applications demanding high signal-to-noise ratios or rapid analysis, such as trace-level detection or kinetic studies.

Q: Where can the Nicolet iS50 be installed and what are its operating requirements?

A: It is designed to operate in laboratory environments with temperatures between 15-30 C and non-condensing humidity. The spectrometer is compact (60 x 51 x 28 cm) and robust, requiring standard AC power (100-240 V, 50/60 Hz). Its corrosion-resistant build ensures long-term reliability even in challenging laboratory settings.

Q: What is the process for expanding or automating sample analysis?

A: The system's modular sample compartment allows users to add automation accessories and multi-sample holders. Upgrades can include temperature-controlled cells or automated sampling modules, facilitating high-throughput workflows for laboratories with increasing analysis demands.

Q: How do the built-in and optional modules benefit users?

A: Built-in ATR, as well as optional NIR and Raman modules, enable diverse analytical techniques without needing separate instruments. This flexibility allows users to analyze a variety of sample types or perform complementary measurements, maximizing return on investment and laboratory research capabilities.

Q: What are the data handling and output options?

A: The Nicolet iS50 supports data output via USB and Ethernet, and is fully compatible with the intuitive OMNIC software suite for data acquisition, processing, and secure storage. Compliance features ensure data integrity and support for regulatory submissions.
