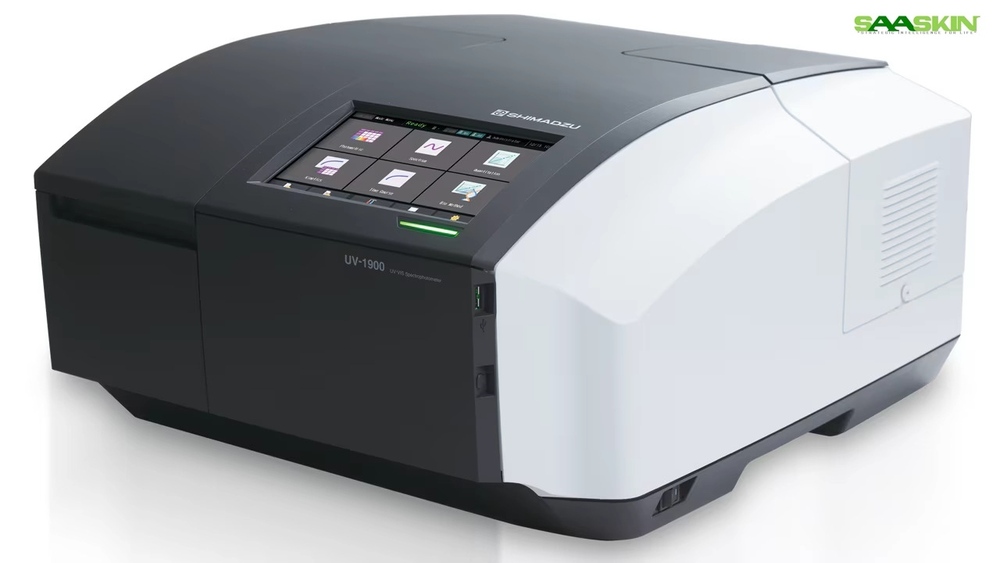

Shimadzu UV-1900i UV-VIS Spectrophotometer

Shimadzu UV-1900i UV-VIS Spectrophotometer

Get a Price/Quote

Product Details:

Usage Qualitative and quantitative analysis of samples
Material Metal and high-grade polymer
Classification Laboratory Analytical Instrument
Dimension (L*W*H) 450 mm x 490 mm x 270 mm
Voltage 100 240 V AC, 50/60 Hz
Operate Method Touchscreen panel and PC control
Application Pharmaceutical, Environmental, Food & Beverage, Chemical Analysis
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Shimadzu UV-1900i UV-VIS Spectrophotometer Price And Quantity

Shimadzu UV-1900i UV-VIS Spectrophotometer Product Specifications

Capacity Up to 8-sample carousel (optional)
Color White / Black
Weight 19 kg
Power 150 VA
Voltage 100 240 V AC, 50/60 Hz
Material Metal and high-grade polymer
Classification Laboratory Analytical Instrument
Dimension (L*W*H) 450 mm x 490 mm x 270 mm
Usage Qualitative and quantitative analysis of samples
Product Type UV-VIS Spectrophotometer
Operate Method Touchscreen panel and PC control
Application Pharmaceutical, Environmental, Food & Beverage, Chemical Analysis

Wavelength Range 1901,100 nm
Photometric Repeatability 0.001 Abs (0.5 Abs NaN3 solution at 340 nm)
Cuvette Holder Standard 4-position cell changer
Photometric Range -3 to 3 Abs
Display 7-inch color LCD touchscreen
Compliance GLP/GMP compatible; USP/EP Pharmacopoeia compliant
Photometric Accuracy 0.002 Abs (0.5 Abs NaN3 solution at 340 nm)
Light Source Halogen Lamp and Deuterium Lamp
Operating Environment Temperature 1035C, Humidity up to 80% (no condensation)
Spectral Bandwidth 1 nm
Wavelength Repeatability 0.1 nm
Scan Speed Up to 8000 nm/min
Stray Light Lower than 0.5% (220 nm, NaI; 340 nm, NaNO2)
Data Output USB, LAN, RS-232C
Software UVProbe and LabSolutions UV-Vis (multi-mode, validation, kinetics etc.)
Wavelength Accuracy 0.1 nm (656.1 nm D2 Peak)
Detector Silicon Photodiode Array

Product Description

Brand Shimadzu

Model UV-1900

Capacity 300 to 700 nm

CAT No UV-1900i, UV-1900i Plus

Application Spectroscopy

The UV-1900i is a double-beam UV-Vis Spectrophotometer using Shimadzu's original LO-RAY-LIGH diffraction grating technology. LabSolutions UV-Vis is a next-generation Shimadzu UV control software pursuing efficiency of analysis. LabSolutions UV-Vis software with easy-to-use is included as standard.

Precision and Versatility for Laboratories

The Shimadzu UV-1900i UV-VIS Spectrophotometer offers exceptional accuracy and reproducibility in a wide wavelength range. Engineered to support both routine and sophisticated analyses, this instrument is indispensable for research and industrial laboratories in the pharmaceutical, environmental, food, and chemical sectors. Its advanced technology and flexible software options ensure consistent, high-quality results for a broad spectrum of applications.

User-Friendly Interface and Advanced Software

A 7-inch color touchscreen and intuitive controls make the UV-1900i easy to operate, whether via its panel or connected PC. Comprehensive software packages-UVProbe and LabSolutions UV-Vis-facilitate multi-mode measurements, kinetic studies, and full validation, streamlining data acquisition and management. This user-focused design enhances productivity and user experience across all skill levels.

Compliance and Robust Performance

Fully compliant with GLP/GMP standards and pharmacopoeia requirements (USP/EP), the UV-1900i supports regulatory needs in quality control and research laboratories. With robust construction and precise environmental tolerance, it performs reliably even under demanding conditions, ensuring confidence in every reading.

FAQ's of Shimadzu UV-1900i UV-VIS Spectrophotometer:

Q: How do I operate the Shimadzu UV-1900i UV-VIS Spectrophotometer?

A: The UV-1900i can be operated using the built-in 7-inch color LCD touchscreen panel or via PC control with the included UVProbe and LabSolutions UV-Vis software. Both methods allow for straightforward navigation and setup of qualitative and quantitative analyses, making it easy for users of all technical backgrounds.

Q: What types of samples and industries can benefit from using this spectrophotometer?

A: This instrument is suitable for qualitative and quantitative analysis across pharmaceutical, environmental, food & beverage, and chemical industries. Its broad wavelength range, high accuracy, and compliance features make it ideal for both research and routine quality control tasks.

Q: When should the light source lamps be replaced?

A: The device uses both halogen and deuterium lamps for wide wavelength coverage. Replacement frequency depends on usage intensity and lamp condition, but routine laboratory maintenance schedules typically dictate inspection and replacement to ensure optimal performance and consistent results.

Q: Where can I use and install the UV-1900i spectrophotometer?

A: The spectrophotometer is designed for laboratory environments with temperatures between 10-35C and humidity up to 80% (non-condensing). Its compact dimensions and moderate weight (19 kg) make it suitable for benchtop installation in research, academic, industrial, or quality control labs.

Q: What is the process of analyzing a sample with this instrument?

A: To analyze a sample, place it in a cuvette and insert it into the standard 4-position cell changer. Select the analysis method and parameters via the touchscreen or PC software, and start the measurement. The instrument automatically scans and stores data, which can be exported via USB, LAN, or RS-232C connections.

Q: What are the primary benefits of the Shimadzu UV-1900i for laboratories?

A: Key benefits include exceptional photometric and wavelength accuracy, rapid scan speeds (up to 8000 nm/min), robust compliance with regulatory standards, versatile data management, and advanced software options. These features ensure reproducible, high-quality results for a wide range of laboratory applications.
