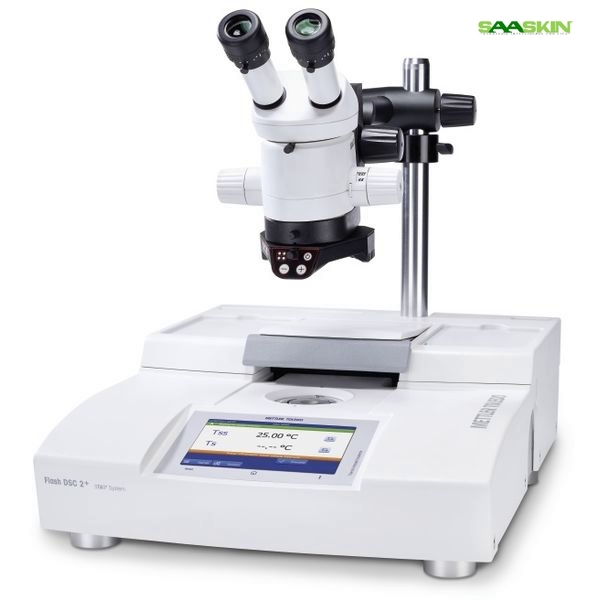

Mettler Toledo Thermal Analysis System Flash DSC 2+

Mettler Toledo Thermal Analysis System Flash DSC 2+

Get a Price/Quote

Product Details:

Model No Flash DSC 2+
Automation Grade Semi-automatic (software controlled)
Frequency Heating/cooling rates up to 24000 K/s
Accuracy High-accuracy temperature control and measurement
Measurement Range nJ to J (heat flow); ng to mg (sample mass)
Core Components Flash DSC chip sensor, electronics, cooling accessories
Temperature Range -95C to 1000C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Thermal Analysis System Flash DSC 2+ Price And Quantity

Mettler Toledo Thermal Analysis System Flash DSC 2+ Product Specifications

Dimension (L*W*H) 210 x 320 x 170 mm
Weight Approximate instrument weight 11 kg
Automation Grade Semi-automatic (software controlled)
Model No Flash DSC 2+
Equipment Materials Aluminum housing with precision electronic components
Usage Thermal analysis of polymers, pharmaceuticals, thin films, and other materials
Frequency Heating/cooling rates up to 24000 K/s
Accuracy High-accuracy temperature control and measurement
Measurement Range nJ to J (heat flow); ng to mg (sample mass)
Voltage 230-240 V AC
Temperature Range -95C to 1000C
Core Components Flash DSC chip sensor, electronics, cooling accessories
Power Source 240V AC, 50/60 Hz mains supply
Type Flash Differential Scanning Calorimeter (Flash DSC)
Capacity Suitable for nanogram to milligram samples
Display Type Digital LCD Display via software interface
Feature Extreme heating/cooling rate, small samples, precise control, fast response

Sample Format Open and hermetically sealed crucibles available
Software Advanced STARe software for data analysis and instrument control
Interface USB and Ethernet connectivity options
Languages Supported Multi-language support via software
Operating System Compatibility Windows-based control software
Sensor Type MEMS-based Flash DSC chips for ultra-fast measurements
Maximum Sample Throughput Single sample per run; fast cycle allows high productivity
Calibration Automatic and manual calibration routines
Ambient Conditions Temperature: 15-28°C, humidity <80% non-condensing
Cooling System Mechanical cooling or liquid nitrogen cooling options
Cooling Range Down to -95°C with cooling accessories
Heating/Cooling Rate 0.1 K/s to 24000 K/s
Application Areas Polymer characterization, rapid phase transition analysis, pharmaceutical development
Compliance CE certified; RoHS compliant
Data Export Formats CSV, TXT, proprietary formats supported

Product Description

Brand Mettler Toledo

Model DSC 2+

Capacity -95 C 1,000 C

CAT No 30424745

Application Thermal Analysis

Extreme cooling and heating rates (2.4 million and 3 million K/min) enable the formation of defined structures or the suppression of reorganization processes.

Extreme Speed and Sensitivity

The Flash DSC 2+ is engineered to deliver incredibly fast heating and cooling rates, up to 24,000 K/s, enabling detailed investigation of rapid phase transitions and polymer crystallization. Its MEMS-based chips ensure reliable results for even the smallest samples, making it indispensable for advanced research and development.

Flexible Cooling Options and Wide Temperature Range

Choose between mechanical cooling or liquid nitrogen cooling to suit application needs, with both options reaching as low as -95C. The system reliably covers a broad temperature range up to 1000C, providing maximum flexibility for diverse experimental requirements.

Advanced Software and Connectivity

With STARe software, users enjoy advanced data analysis and precise instrument control. The system seamlessly integrates with Windows, provides USB and Ethernet connectivity, and supports multiple export formats, ensuring easy data management and reporting for users worldwide.

FAQ's of Mettler Toledo Thermal Analysis System Flash DSC 2+:

Q: How does the Flash DSC 2+ enhance thermal analysis for polymers and pharmaceuticals?

A: The Flash DSC 2+ offers extreme temperature ramping rates and sensitive MEMS-based sensors, enabling rapid and precise assessment of material transitions such as melting, crystallization, and glass transition-essential for polymer characterization and pharmaceutical development.

Q: What cooling options and temperature ranges are available for the Flash DSC 2+?

A: This system supports both mechanical and liquid nitrogen cooling, achieving temperatures down to -95C and as high as 1000C, catering to a wide spectrum of thermal analysis needs.

Q: When should I use open vs. hermetically sealed crucibles?

A: Open crucibles are ideal for volatile samples or when venting gases, while hermetically sealed crucibles are suitable for analyzing materials that must be isolated from the environment to prevent decomposition or oxidation during analysis.

Q: Where can the Flash DSC 2+ be utilized effectively?

A: It is best suited for research and quality control laboratories in industries such as polymers, pharmaceuticals, materials science, and academic institutions, thanks to its precision, flexibility, and efficient sample processing.

Q: What is the process for calibrating the Flash DSC 2+?

A: Calibration can be performed automatically or manually via the STARe software, which guides users through temperature and sensitivity calibration routines to ensure measurement accuracy.

Q: How do I export and analyze data collected by the Flash DSC 2+?

A: The device supports multiple data export formats, including CSV and TXT, and allows further analysis via STARe software, ensuring compatibility with standard data processing tools and facilitating comprehensive record-keeping.

Q: What benefits does the fast heating and cooling capability provide for users?

A: Ultra-fast heating and cooling enable high-throughput testing, detailed kinetic studies, and the investigation of phase transitions that may be inaccessible with conventional DSC systems, thus accelerating product development and research timelines.
