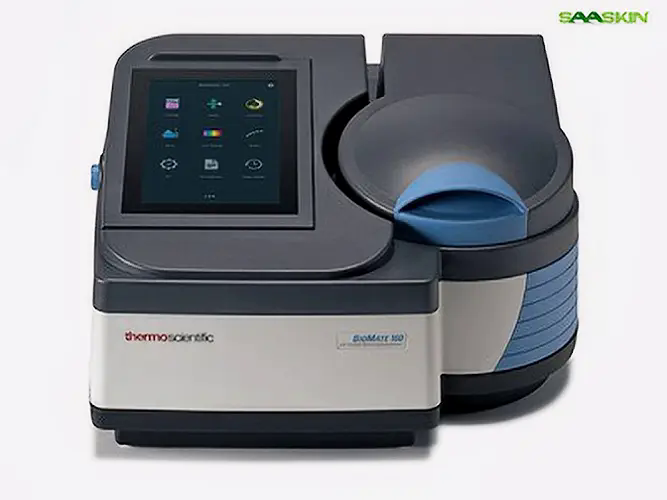

Thermo Fisher Scientific BioMate 160 UV-Vis Spectrophotometer

Thermo Fisher Scientific BioMate 160 UV-Vis Spectrophotometer

Get a Price/Quote

Product Details:

Dimension (L*W*H) 440 x 340 x 210 mm
Color White and Blue
Weight 8 kg
Usage Quantitative and qualitative analysis in research and quality control labs
Capacity Single Sample; Up to 8 multi-cell changer (optional)
Classification Scientific Laboratory Instrument
Material ABS Plastic, Metallic Components
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Thermo Fisher Scientific BioMate 160 UV-Vis Spectrophotometer Price And Quantity

Humidity Range 80% RH (non-condensing)
Display 7-inch Color Touchscreen
Spectral Bandwidth 2 nm
Operating Temperature Range 10C to 35C
Photometric Range -0.3 to 3.0 Abs
Sample Compartment Standard 10 mm pathlength cuvette; accommodates various holders
Light Source Deuterium and Tungsten Halogen Lamps
Wavelength Range 1901100 nm
Connectivity USB ports and optional printer connection
Stray Light 0.05%T at 220/360 nm
Data Storage Internal memory and USB Export
Detector Silicon Photodiode
Baseline Flatness 0.001 Abs
Software Features Pre-programmed bio-methods, user method storage, spectrum scanning, kinetics, concentration, and DNA/RNA quantification
Compliance RoHS and CE Certified

Thermo Fisher Scientific BioMate 160 UV-Vis Spectrophotometer Product Specifications

Product Type UV-Visible Spectrophotometer
Capacity Single Sample; Up to 8 multi-cell changer (optional)
Operate Method Touchscreen Interface, Standalone Operation
Usage Quantitative and qualitative analysis in research and quality control labs
Power 90 W
Application Nucleic acid and protein quantification, routine laboratory measurements, educational purposes
Voltage 100-240 V AC, 50/60 Hz
Dimension (L*W*H) 440 x 340 x 210 mm
Classification Scientific Laboratory Instrument
Weight 8 kg
Color White and Blue
Material ABS Plastic, Metallic Components

Humidity Range 80% RH (non-condensing)
Display 7-inch Color Touchscreen
Spectral Bandwidth 2 nm
Operating Temperature Range 10C to 35C
Photometric Range -0.3 to 3.0 Abs
Sample Compartment Standard 10 mm pathlength cuvette; accommodates various holders
Light Source Deuterium and Tungsten Halogen Lamps
Wavelength Range 1901100 nm
Connectivity USB ports and optional printer connection
Stray Light 0.05%T at 220/360 nm
Data Storage Internal memory and USB Export
Detector Silicon Photodiode
Baseline Flatness 0.001 Abs
Software Features Pre-programmed bio-methods, user method storage, spectrum scanning, kinetics, concentration, and DNA/RNA quantification
Compliance RoHS and CE Certified

Product Description

Brand Thermo Fisher Scientific

Model BioMate 160

Capacity 190 to 1100 nm

CAT No 840-301000

Application Spectroscopy

Perform quantitative measurements in life science laboratories with the automated and network-capable Thermo Scientific BioMate 160 UV-Visible Spectrophotometer. The BioMate 160 Spectrophotometer offers pre-programmed assay methods for nucleic acid and protein concentration as well as cell culture measurements. Optimized for usability and performance, this platform features a high-resolution color touchscreen, optional Wi-Fi networking, and a rugged design.

Advanced Optical Performance

With a wavelength range of 190-1100 nm and a spectral bandwidth of 2 nm, the BioMate 160 delivers precision across diverse applications, from nucleic acid quantification to protein analysis. Its silicon photodiode detector and dual (deuterium and tungsten halogen) lamps ensure reliable and accurate readings for scientifically demanding environments.

User-Centric Design and Connectivity

This spectrophotometer features a 7-inch color touchscreen for straightforward operation and method selection. It allows standalone use, internal method storage, and quick export of results via USB. Optional multi-cell changers and printer connectivity enhance workflow efficiency, supporting the needs of modern laboratories.

Versatile Applications and Compliance

Designed for research, quality control, and educational settings, the BioMate 160 is used in various analytical tasks, including DNA/RNA and protein quantification. Its RoHS and CE certifications attest to its safety and environmental compliance, making it a dependable choice for institutions across India.

FAQ's of Thermo Fisher Scientific BioMate 160 UV-Vis Spectrophotometer:

Q: How do I operate the BioMate 160 UV-Vis Spectrophotometer?

A: The BioMate 160 is operated using its 7-inch color touchscreen, which provides access to pre-programmed bio-methods and user-defined protocols. You can perform measurements by placing your sample in a standard 10 mm cuvette and following on-screen instructions.

Q: What types of samples and analyses can be performed with this spectrophotometer?

A: The instrument can analyze a wide range of samples, including nucleic acids, proteins, and general laboratory solutions. It supports both quantitative and qualitative analysis, making it suitable for research, quality control, and educational applications.

Q: When should I use the optional multi-cell changer accessory?

A: The optional multi-cell changer is beneficial when you need to process up to eight samples in succession. This accessory is ideal for laboratories handling higher sample volumes or requiring efficient batch analysis.

Q: Where can the BioMate 160 be used?

A: This device is suitable for research laboratories, quality control settings, and educational institutions. Its RoHS and CE certifications make it safe for use in regulated environments throughout India.

Q: What is the process for exporting measurement data?

A: Measurement data can be stored internally and conveniently exported via the USB port. This feature streamlines data management and makes it easy to transfer results to computers or compatible printers.

Q: What are the advantages of the dual lamp system?

A: The combination of deuterium and tungsten halogen lamps covers the full UV-Vis spectrum, enhancing measurement accuracy and ensuring consistent performance across varying sample types.

Q: How does the BioMate 160 support reliable and reproducible results?

A: With a baseline flatness of 0.001 Abs, stray light of 0.05%T at 220/360 nm, and precise photometric performance, the BioMate 160 ensures that analytical results are both accurate and reproducible.
