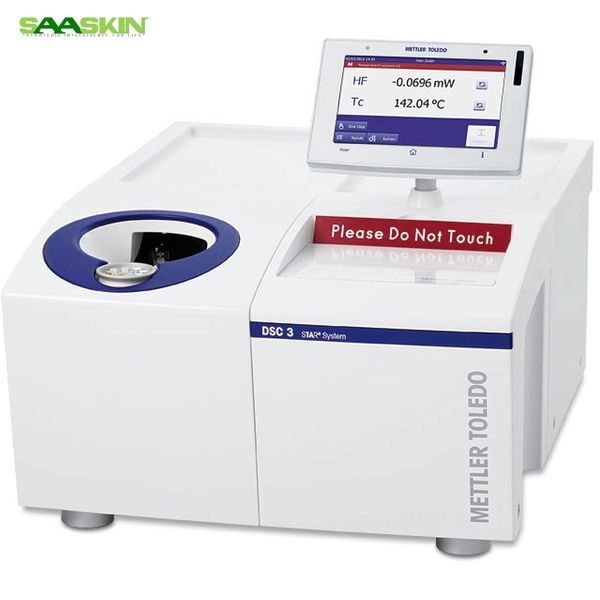

Mettler Toledo Thermal Analysis System DSC 3

Mettler Toledo Thermal Analysis System DSC 3

Get a Price/Quote

Product Details:

Power Source AC Electric
Feature High measurement sensitivity, modular design, automatic calibration, flexible cooling options
Automation Grade Semi-automatic (with optional autosampler)
Voltage 100-240 V AC
Temperature Range -50 C to 700 C
Frequency 50-60 Hz
Capacity 350 L (standard crucible)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Mettler Toledo Thermal Analysis System DSC 3 Price And Quantity

Heating Rate 0.02 K/min to 300 K/min
Operating Temperature 15°C to 35°C (ambient)
Maximum Sample Weight 350 mg
Interface Ports USB, Ethernet
Cooling Options Intracooler, Liquid Nitrogen, or Air cooling
Atmosphere Control Programmable, inert or oxidizing atmospheres (gas flow control)
Calibration Automatic and manual calibration modes
Data Output Digital, exportable formats: CSV, PDF, Excel
Detection System High-resolution thermocouple sensors
Software Compatibility STARe Software Suite
Sample Crucible Material Aluminum (standard), available in gold/platinum
Sensitivity Ultra-high baseline sensitivity

Mettler Toledo Thermal Analysis System DSC 3 Product Specifications

Display Type Digital LCD Display (via software interface)
Measurement Range Heat flow: -350 mW to +350 mW
Type Differential Scanning Calorimeter (DSC)
Accuracy 0.1C (Temperature); 0.02 mW (Heat Flow)
Dimension (L*W*H) 480 x 230 x 260 mm
Model No DSC 3
Core Components DSC Cell, Furnace, Sample Holder, Sensors, Cooling Unit (optional)
Capacity 350 L (standard crucible)
Weight ~11 kg (main unit)
Voltage 100-240 V AC
Frequency 50-60 Hz
Temperature Range -50 C to 700 C
Automation Grade Semi-automatic (with optional autosampler)
Usage Thermal Analysis, Research & Quality Control, Polymers, Pharmaceuticals, Chemicals
Feature High measurement sensitivity, modular design, automatic calibration, flexible cooling options
Equipment Materials Stainless Steel, Aluminum, High-quality Plastics
Power Source AC Electric

Heating Rate 0.02 K/min to 300 K/min
Operating Temperature 15°C to 35°C (ambient)
Maximum Sample Weight 350 mg
Interface Ports USB, Ethernet
Cooling Options Intracooler, Liquid Nitrogen, or Air cooling
Atmosphere Control Programmable, inert or oxidizing atmospheres (gas flow control)
Calibration Automatic and manual calibration modes
Data Output Digital, exportable formats: CSV, PDF, Excel
Detection System High-resolution thermocouple sensors
Software Compatibility STARe Software Suite
Sample Crucible Material Aluminum (standard), available in gold/platinum
Sensitivity Ultra-high baseline sensitivity

Product Description

Brand Mettler Toledo

Model DSC 3

Capacity -150 C 700 C

CAT No 30139229

Application Thermal Analysis

STARe System DSC 3. The DSC uses a robust and versatile DSC sensor with 56/120 thermocouples which guarantees simultaneous outstanding resolution and sensitivity.

Flexible and Precise Thermal Analysis

The DSC 3 offers a temperature range from -50C to 700C and high measurement sensitivity, allowing you to investigate subtle thermal events and transitions. Its modular design enables selection of crucible material (aluminum, gold, or platinum) and cooling method, ensuring suitability for a wide variety of sample types and research objectives.

User-Friendly Interface and Automation

Equipped with a digital LCD display (via the STARe Software Suite), the DSC 3 provides intuitive controls for automatic or manual calibration, programmable gas flow, and atmosphere selection (inert or oxidizing). Optional autosampler enhances flexibility and enables semi-automatic operation for higher throughput laboratories.

Advanced Data Export and Connectivity

Efficient data management is achieved through numerous interface ports, including USB and Ethernet. Results from analyses are readily exportable in several formats such as CSV, PDF, and Excel, simplifying integration into your wider research or quality control workflow.

FAQ's of Mettler Toledo Thermal Analysis System DSC 3:

Q: How does the DSC 3 ensure accurate thermal measurements during analysis?

A: The DSC 3 employs high-resolution thermocouple sensors and offers both automatic and manual calibration modes. This ensures precise temperature and heat flow readings with high sensitivity and accuracy (0.1C temperature; 0.02 mW heat flow) for reliable data.

Q: What types of samples and industries can the DSC 3 be used for?

A: This thermal analysis system is suitable for a wide range of samples, including those found in polymers, pharmaceuticals, and chemicals. It is ideal for research and quality control laboratories in academic, industrial, and manufacturing sectors.

Q: When should I choose between the different cooling options available?

A: The choice between intracooler, liquid nitrogen, or air cooling depends on your desired temperature range, cooling rate, and operational budget. Intracooler is convenient for most applications, liquid nitrogen is optimal for rapid or sub-ambient cooling, and air cooling serves standard needs.

Q: Where can the DSC 3 be installed, and what are the space requirements?

A: The DSC 3 is compact, with dimensions of 480 x 230 x 260 mm and a weight of approximately 11 kg, making it suitable for standard laboratory benches. It operates best in ambient conditions between 15C and 35C.

Q: How do I control the sample atmosphere during a DSC 3 analysis?

A: The instrument offers programmable atmosphere control with gas flow options for either inert or oxidizing environments. Users can set specific parameters through the STARe Software Suite to tailor conditions for each experiment.

Q: What benefits does the modular design of the DSC 3 offer?

A: Its modular structure allows for easy switching of crucible materials, flexible selection of cooling systems, and potential integration of optional components like an autosampler, adapting the system to evolving laboratory needs.
